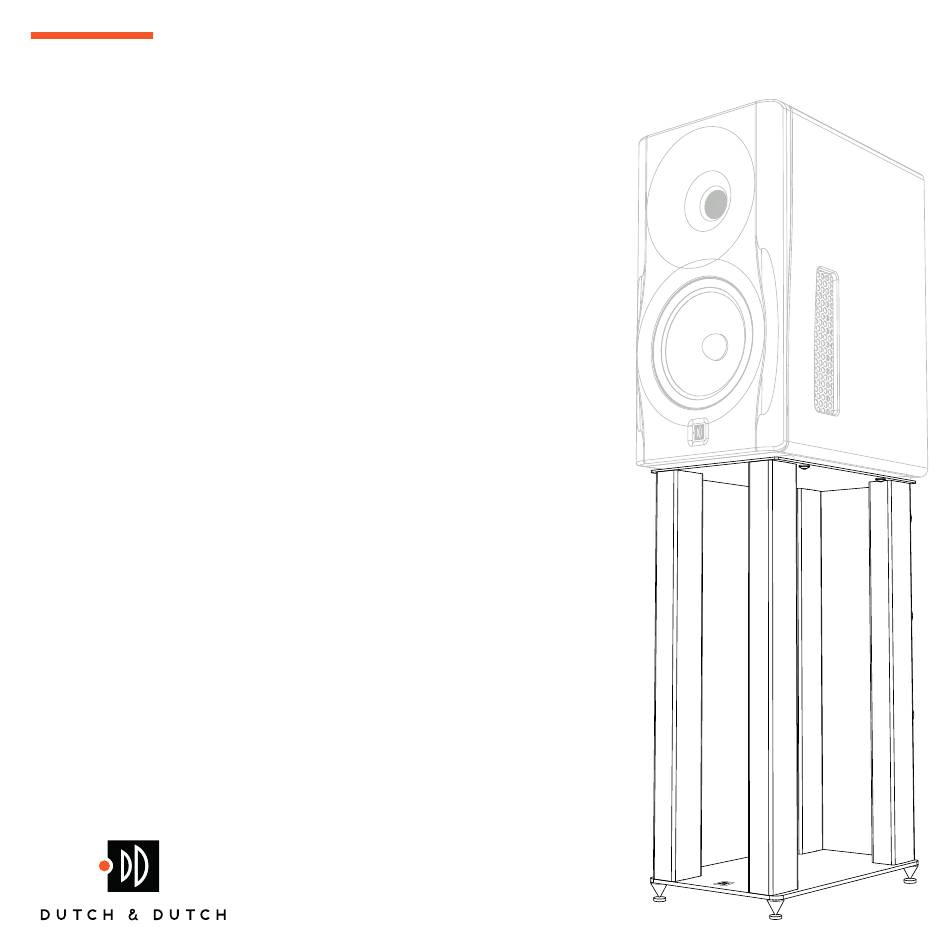

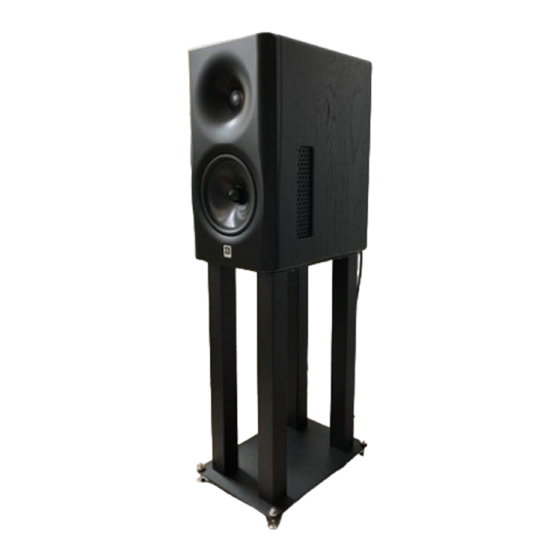

- Page 1 Dutch & Dutch Installation manual 8c stand 2020 V 1.0...
- Page 2 General This is the installation manual of the Dutch & Dutch 8c stand. Use this manual as a guide to correctly assemble the stand and install the 8c system on it. We recommend to store this manual for later reference if needed.
-
Page 3: General Safety
Always make sure that the stand with 8c system is installed on a flat and level surface. Also make sure that the floor the 8c system is standing on can hold the weight of this system. Do not install the stand and 8c system on sloped or damaged floors. -
Page 4: Warning Signs
8c stand. Verify that all components are there and free from damage. If there are signs of damage or if parts are missing please contact your dealer or distributor. Installation manual 8c stand | 2020 V 1.0... - Page 5 5 mm 4 mm Installation manual 8c stand | 2020 V 1.0...
-
Page 6: Technical Specifications
Technical Specifications 270 mm 8c. speaker dimensions (HxWxD) 485 x 270 x 380 MM (19 x 10.5 x 15 IN) 8c. stand dimensions (HxWxD) 600 x 230 x 360 MM (24 x 9 x 14 IN) 8c. stand weight 12 kg... - Page 7 Clean the corners of the bottom side of the plate with one of the supplied alcohol pads before mounting the adjustable spikes! Step 2 Mount the 4 adjustable spikes of the speaker stand. Self adhesive felt Adjustable spike Floor protector Installation manual 8c stand | 2020 V 1.0...
- Page 8 Step 3 Mount the 4 threaded rods through the foam. The rods have a sharp point at the top. Watch your eyes! Step 4 Mount the 4 threaded rods in the 4 legs. Installation manual 8c stand | 2020 V 1.0...
- Page 9 Step 5 Mount the 4 legs of the speaker stand on the bottom plate and push the foam into the legs. The legs have sharp edges. Watch your fingers! Installation manual 8c stand | 2020 V 1.0...
- Page 10 Optionally you can fill each leg with sand to This is an optional step, dampen and weighten the stand. Make sure sand is not supplied with that the rods are centered during filling the legs. this package! Installation manual 8c stand | 2020 V 1.0...
- Page 11 Now tighten all four bolts as much as possible The arrow on the top plate must face the logo plate of the bottom plate! Align the rod in the middel of the hole! Installation manual 8c stand | 2020 V 1.0...
- Page 12 Step 8 Rotate the stand on its side. Use the 2 allen keys to tighten the four bolts. 5 mm 4 mm Installation manual 8c stand | 2020 V 1.0...
- Page 13 Mount the 4 self adhesive cable clips. You can either choose the left or right leg. Clean the surface of the leg with the supplied alcohol pad befor applying the adhesive clips! Installation manual 8c stand | 2020 V 1.0...
- Page 14 Step 10 Align the 8c with the speaker stand before mounting. Tighten the bolts with the allen key till first point of resistance! Installation manual 8c stand | 2020 V 1.0...
- Page 15 Step 11 Route the cables through the self-adhesive cable ducts. Make sure the speaker is connected properly! Installation manual 8c stand | 2020 V 1.0...
- Page 16 D U T C H & D U T C H B . V . C L A E S D E V R I E S E L A A N 1 6 4 3 0 2 1 J Z R O T T E R D A M T H E N E T H E R L A N D S + 3 1 ( 0 ) 1 0 7 3 7 0 8 6 3 W W W .
