MM00147 INSTRUCTION MANUAL
ASSEMBLY • OPERATION • MAINTENANCE • SAFETY

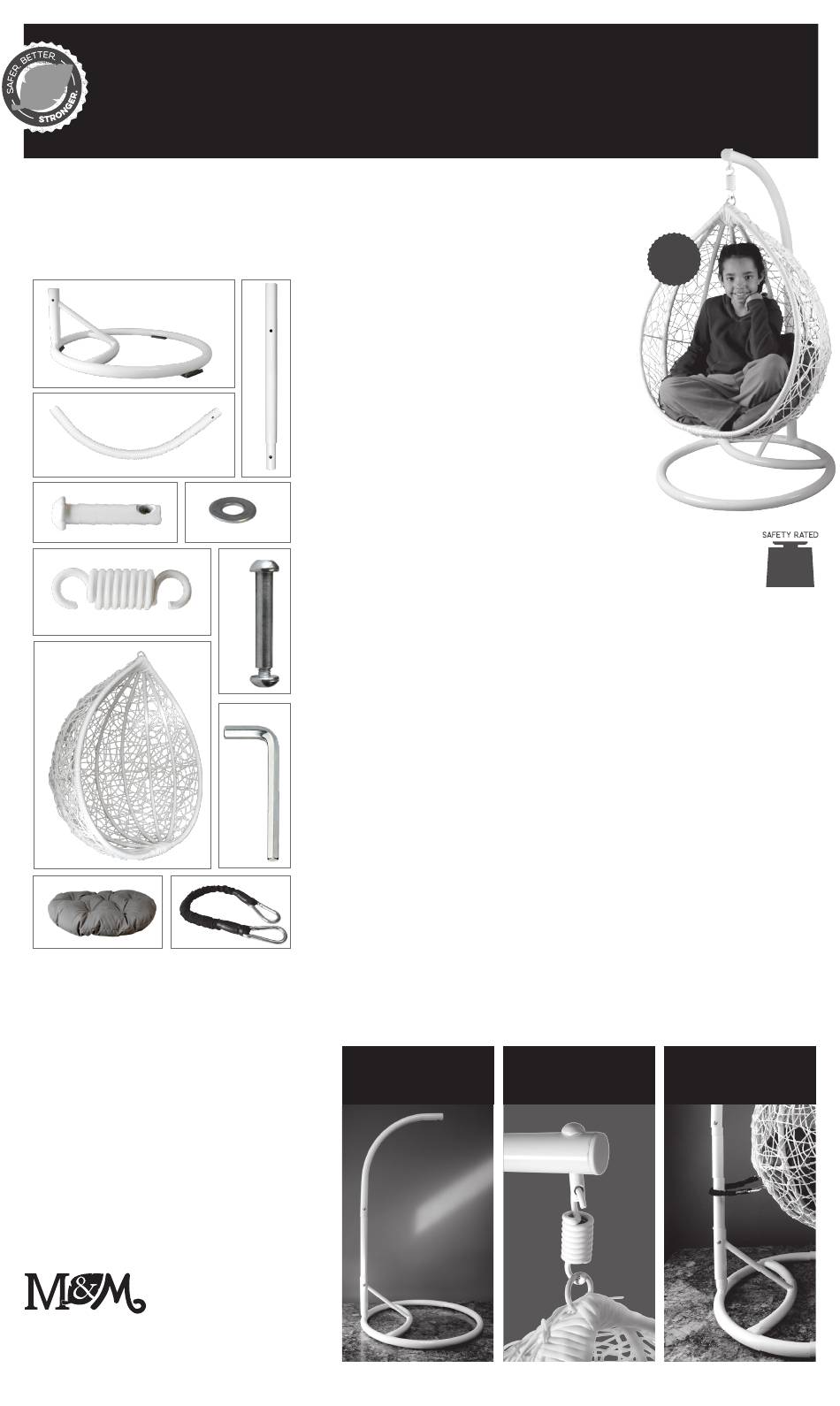

What's in the Box:
Lay out all box components included on
a level and comfortable workspace:
(A)
(C)
(D)
(H)
(I)
(J) (K)
(1)—A Circular Base
(1)—B Vertical Height Pole
(1)—C Curved Top Pole with Cap
(1)—D Hanging Pin 15mm x 80mm
(2)—E Round Hex Nut & Bolt M8 x 42mm
(4)—F Lock WashersM8
(1)—H Spring
(1)—I Pod
(1)—J Cushion
(1)—K Bungee Cord w/ 2 Carabiners
(2)—L Hex Wrench M8
M&M Sales Enterprises, Inc.
1300 Synergy Court, Dubuque, IA 52002
877-242-0514 www.mandmsalesinc.com
Swoon Pod
ASSEMBLY INSTRUCTIONS
ASSEMBLY WARNINGS:
BEFORE YOU BEGIN ASSEMBLY:
(B)
(F)*
(Steps 1-5) Build Stand:
(E)*
(Steps 6-7) Connect Stand and Swoon Pod:
(L)
(Steps 8-9) Attach Motion Resistant Bungee Strap:
• Due to the presence of small parts during
assembly, keep components out of reach
of children until assembly is complete.
• To prevent serious injury, children
must not use Cozy Hanging Pod until
properly assembled and installed.
• Assembly should be completed
by adult person.
• Place the equipment on level ground.
Do not install Cozy Hanging Pod
•
concrete, asphalt or any hard surface.
• A fall onto a hard surface can
result in serious injury or death to the equipment user.
No need to show gorilla strength while tightening bolts.
•
Over-tightening bolts or nuts can cause the threads
to get damaged making it difficult to take your Cozy
Hanging Pod apart or reassemble it in the future.
1. Place A (Circular Base) on a level surface with the
non-skid feet resting on the floor surface.
2. Connect B (Vertical Height Pole) to A (Circular Base) using one E
(Round Hex Nut & Bolt) and two F (Washers). Tighten hardware.
3. Insert C (Curved Top Section) of stand to B (Vertical
Height Pole) using the remaining E (Round Hex Nut &
Bolt) and two F (Washers). Tighten hardware.
4. Drop D (Hanging Pin) through the end of C (Curved Top
Section). The cap of the pin should be on top.
5. Insert one end of H (Spring) through the hole
punched in the lower end of D (Hanging Pin).
6. Slide the circular hanger at the top of the pod frame to the open
end of the H (Spring). Make sure Pod opening for entering/
exiting seating is facing outward away from the stand.
7. Place J (Cushion) in Cozy Hanging Pod.
8. Connect one Carabiner on K (Bungee Cord) to the
horizontal rib running around the frame of the Pod.
9. Bring K (Bungee Cord) around B (Vertical Height Pole) and return the
other end to the same horizontal rib of Pod to secure other Carabiner.
Confirm both Carabiners on K (Bungee Cord) are closed.
Build Stand
(Steps 1-5)
Ages
3+
Connect Stand
and Swoon Pod
(Steps 6-7)
125
LBS.
Attach Motion
Resistant Bungee
Strap (Steps 8-9)
