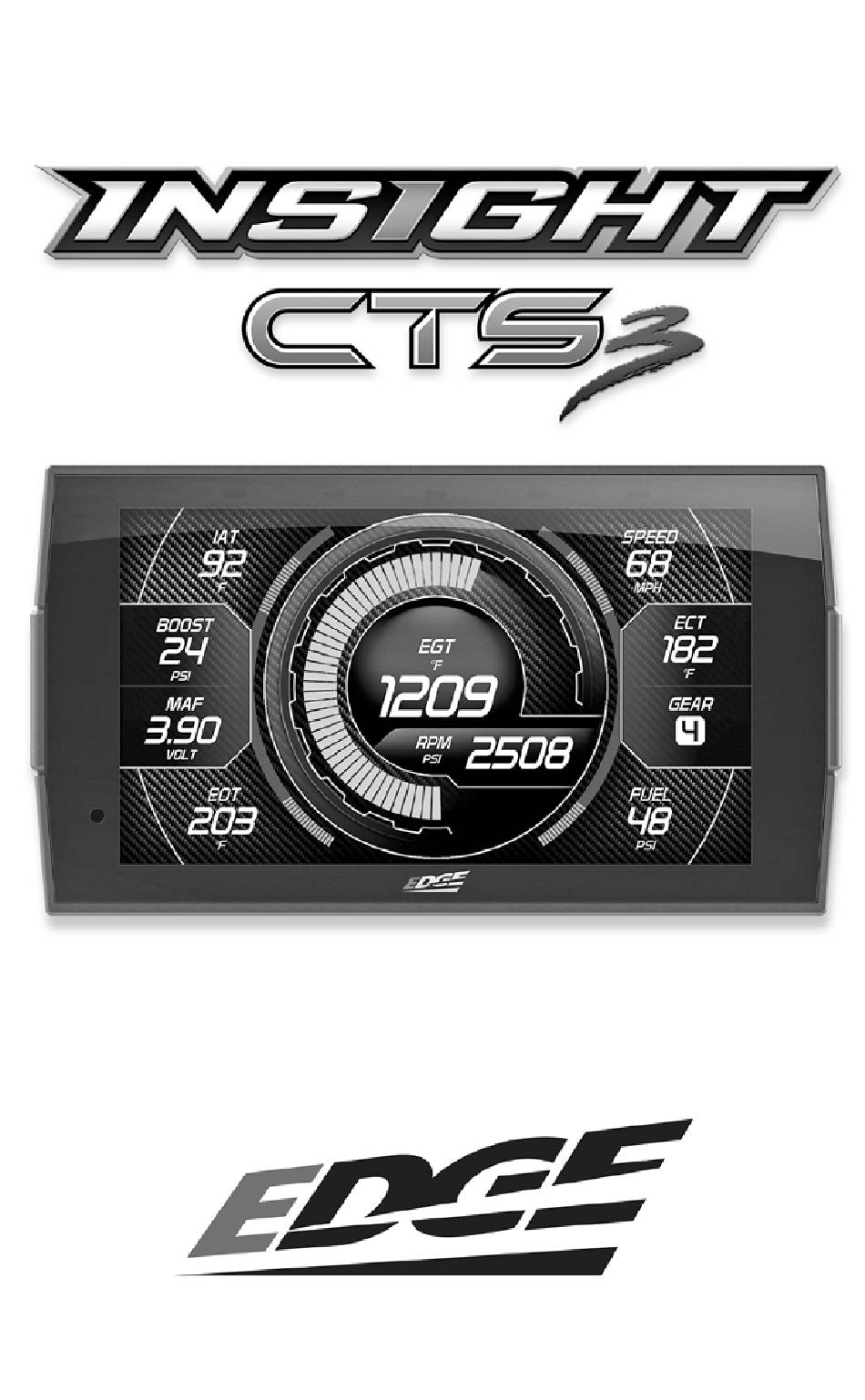

Edge INSIGHT CTS3 Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the INSIGHT CTS3 and is the answer not in the manual?

Questions and answers

Billy Devine

June 21, 2025

Can this device monitor transmission temp

Todd Conrad

June 11, 2025

Which EGT setting measures exhaust temp most accurately? There are 5 EGT options to select from.

Philip Sheets

May 17, 2025

My CTS3 keeps trying to reboot or sticks on the original main screen where you could select gages. Why is this happening.?

Lou

May 8, 2025

What are all the abbreviation like TFT

Grant

April 7, 2025

What are all the abbreviation like TFT

Summary of Contents for Edge INSIGHT CTS3

Page 2 Table of Contents Read Me Safety Warning & Caution Safety Guidelines FCC Compliance Quick Start In-Cab Display Accessories Cable Installation Windshield Mount Installation Touch Screen Main Menu Update Software Downloading Update Agent 1.0 Product Updates Performance Tests 0-60, 0-100, 1/4 Mile, & 1/8 Mile Tests Settings Display &...
Page 3: Safety Warning & Caution
Read Me Safety Warning & Caution Throughout this User Manual you will see important messages regarding your safety or the protection of your vehicle. These messages are designated by the words WARNING, CAUTION, or NOTICE. WARNING A WARNING indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Page 4: Safety Guidelines
Safety Guidelines WARNING Before using device, read and understand the user manual, including these additional safety instructions. Failure to do so could result in DEATH or SERIOUS INJURY. • Do not exceed legal speed limits on public roadways. Violating traffic laws is dangerous and could result in injury or vehicle damage or both.
Page 5: Fcc Compliance
Warning: Changes or modifications to this device not expressly approved by Edge Products, LLC could void the user’s authority to operate the equipment Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules.
Page 6 FCC Compliance Cont’d Cet equipment est conforme aux limites d’exposition aux radiations dans un environnement non controle. Cet equipment est en contact direct avex le corps de l’utilisateur dans des conditions de fonctionnement normales. Cet emetteur ne doit pas etre co-localisees ou operant en conjunction avec tout autre antenne ou transmetteur.
Page 7: Quick Start
Quick Start In-Cab Display LEDs Light Touch Screen Sensor HDMI Port USB Port Mount Receptacle...
Page 8 Accessories Windshield Suction Mount Alcohol Wipe Iso- propyl OBDII to HDMI Cable HDMI OBDII Zip Ties USB Cable...
Page 9: Cable Installation
Cable Installation 1 Locate the OBDII port. The connector is typically found directly below the driver side dash console. 2 Plug the OBDII connector into the vehicle port. 3 Route the HDMI connector up the driver side dash. (On most vehicles, the side panel may be removed to expose the underside of the dash for easier routing.
Page 10: Touch Screen
Touch Screen Use these gestures to navigate and control the display. Press/Select Vertical Swipe Select options, input val- Drag up or down menus, and ues, enter menus, etc. scroll through menu items. Horizontal Swipe Double Tap Scroll through gauge screens Enter sub-menus such as or change option values.
Page 11 Main Menu The Main Menu displays each of the menu options available on your device. While navigating the menus, you will notice the Main Menu icon. Press this icon to take you directly back to the Main Menu. To navigate to one of the 6 menu options, simply select an option icon.
Page 12: Update Software
5 Double-click the Update Agent 1.0 desktop icon. 6 Fill out the registration form. 7 Refer to the next page for performing product updates. NOTE: Edge Products makes updates available periodically to add coverage and features. Updates could include a new version of the update software.
Page 13: Product Updates
Product Updates This device has the ability to update via a USB connection or a wireless connection. Refer to the following information for USB updates. Refer to the Check for Updates feature under the Settings section for more information on wireless updates. 1 Open the Update Agent 1.0 program, located on the desktop.
Page 14: Performance Tests
Performance Tests 0-60, 0-100, 1/4 Mile, & 1/8 Mile Tests While in the Main Menu, select the Performance Tests icon. A list of tests will appear. Use the following information to learn more about each test. 1 Select the PERFORMANCE TESTS Performance Test that you would like to start.
Page 15 From Stop 0 TO 100 4 Switch methods by clicking the middle button. 5 When the vehicle is in place, release the brake and proceed to accelerate. TIP: Select the back button to return to the 00:00 main menu. NOTE: Once the speed has been reached, the test will stop and the results will be displayed.
Page 16: Display & Audio Settings
Settings Display & Audio Settings While in the Main Menu, select the Settings icon. A list of settings will appear. This section explains what these settings are and how to use them. 1 Select the Display SETTINGS Settings option. Help/Info 2 Modify each setting Display Settings by adjusting it’s...
Page 17 Device Colors Change and modify device colors for background and borders. 1 Select the Device SETTINGS Colors option. Help/Info 2 Select between Display Settings Background Tinting Device Colors Color or Keyline Color Setting according to Audio Settings what is wanting to be changed.
Page 18 Wi-Fi Setup This device is equipped with the ability to connect to and update over a secure Wi-Fi connection. For more information on how to check for updates, refer to the Check for Updates section of this manual. 1 Select the Wi-Fi SETTINGS Setup option.
Page 19: Check For Updates
Check for Updates If the device is connected to Wi-Fi, click this option to look online for updates. If updates are available, the device will provide the option to perform the update. 1 Select the Check SETTINGS for Updates option. Wi-Fi Setup Note: If Wi-Fi is Email Setup...
Page 20: Unit Of Measure
Unit of Measure Use this setting to globally modify the device to determine whether it uses Imperial or Metric units. 1 Select the Unit of Measure option. SETTINGS Wi-Fi Setup Email Setup Check for Updates 2 Select (Imperial or Unit of Measure Metric) then hit save.
Page 21 Tire Size Cont’d 1 Select the Tire Size that needs to be modified in the menu. 2 Select the size accordingly and use the tabs above for other available options. 3 Select Save to save any changes and return to the menu or Back to return to the menu with the option to not...
Page 22: Restore Default Settings
Restore Default Settings Use this setting to restore the device back to the factory settings. NOTE: This will NOT restore your vehicles’ factory data or unmarry the tool from your vehicle. 1 Select the Restore SETTINGS Default Settings option. Unit of Measure Restore Default PIDs 2 Press continue Restore Default Settings...
Page 23 Gauges & Logging Gauge Layouts While in the Main Menu, select the Gauges & Logging icon. The first of 3 gauge layouts will be displayed. To toggle between screen layouts, swipe the screen Left/Right. To edit the Gauge Layouts: 1 Open the pull down menu by swiping downward starting from the top of the screen.
Page 24 3 Once the Layout Editor is open, select one of the 3 layouts. TIP: Select the Trash Can icon to delete the current layout settings. TIP: The Reset Layout option resets the layout to the factory default, including pid selections. 4 Toggle through the screen style options by either swiping the image up/down, or selecting the...
Page 25: Theme Settings
Theme Settings Change and modify individual gauge element colors & transparency. 1 While the Gauge Screen is in view. Open the pull down menu by swip- ing downward starting from the top of the screen. 2 Select Theme Settings. 3 The following editor will come into view, showing your options. 4 Select Save to apply the changes.
Page 26 Wallpaper Change the background image displayed on the device. 1 While the Gauge Screen is in view. Open the pull down menu by swiping downward starting from the top of the screen. 2 Select Wallpaper. 3 Toggle through the available background images by either swiping up/ down on the image, or using the up/down arrows.
Page 27: Custom Wallpaper
Custom Wallpaper Add custom wallpapers to be displayed as the device background. 1 Plug in the device and find the cts3 folder on your PC and open it like you would a flashdrive. 2 The cts3 device folder should show a Backgrounds folder.
Page 28: Individual Gauge Setup
Individual Gauge Setup Each gauge within a gauge layout can be modified individually. Settings such as Unit of Measure, PIDs, Alert Settings, & Tick Marks may be modified. PID Selection: 1 While the gauge screen is in view, Double Tap the individual gauge to be modified.
Page 29 Alert Settings: 1 Select the icon. 2 Use the (3) toggle buttons to toggle each option on/off. Alerts On/Off Alert sounds On/Off TIP: Select the back button Warning On/Off to return to the gauges. 3 To adjust the warning and alert values for the PID, use the value editors.
Page 30 Pitch / Roll G-Force Screen Each CTS3 device gives you the option to check the pitch and roll of your vehicle. 1 While the Gauge Screen is in view. Open the pull down menu by swiping downward starting from the top of the screen. 2 Press the Layout Editor and choose which screen you wish to replace.
Page 31 4 Select Save and choose to create or replace a layout. 5 Select Back and when the Gauge Screen is in view, swipe right until you’re on the Pitch / Roll G-Force Screen. Swiping right or left will depend on what screen you chose to change in step 2. NOTE: By holding down on the pitch / roll gauge for three seconds, you can level the...
Page 32 DataViewer Download This windows software allows OBDII data logs that were recorded with the Edge Products tuner to be opened and viewed. This software can be downloaded from the Edge Products website. 1 Go to: www.edgeproducts.com 2 Click the UPDATES tab located at the top of the page.
Page 33 DataViewer After a recording session, unplug the device from the vehicle and follow these instructions. 1 Double-Click the DataViewer icon located on your computer desktop. 2 Connect the device to the PC using a USB connector. 3 Select icon and browse to the CTS3 drive.
Page 34: Eas Overview
EAS Accessories EAS Overview The CTS3’s functionality may be added upon by use of EAS (Expandable Accessary System) devices. The CTS3 automatically connects to any new EAS devices connected to it before it boots on, and will alert the user. Upon installation and loading of a new device, the following settings are available: 1 DISPLAY NAME: Changing this item will change the name of the...
Page 35 EAS Device Instructions EAS EGT Probe The EAS EGT Probe does not need any of the pre-defined settings adjusted. However, users have the ability to customize it’s Name, Description, and/or Display Units. EAS Universal Sensor Input (5 Volt) The EAS Universal Sensor Input provides the ability to read any 0-5 volt signals and translate them into meaningful values for display on the CTS3.
Page 36 EAS Device Instructions Cont’d Setting up a custom sensor (non-EAS): 1 Enter the EAS Settings Menu. 2 Select your Universal Sensor Module (NOTE: The serial number should match the unit that is connected to the sensor you would like to configure).
Page 37 EAS Device Instructions Cont’d EAS Power Switch The EAS Power Switch allows you to control your favorite aftermarket accessories such as lights, air compressors, etc. directly through the CTS3 Upon starting the CTS3 for the first time with the EAS device installed, you may go straight to changing Switch settings, or you may opt to go to the home menu and navigate to the EAS Settings Menu at any time after to change the Switch Names and Descriptions.
Page 38: Trouble Codes
Diagnostics Trouble Codes While in the Main Menu, select the Diagnostics icon. The trouble codes screen will appear. If any codes have been initiated, they will show in the list as a P####. NOTE: Trouble codes are created when an issue is detected by vehicle sensors.
Page 39: Manual Regeneration
Manual Regeneration If you vehicle supports Manual Regeneration, there will be a menu option in the Diagnostics Menu of the device. NOTE: Certain operating conditions are required for Manual Regen to operate. There could be, but not limited to; Engine Coolant Temp, Engine Oil Temp, Vehicle Speed, etc.
Page 40: Injector Balance Rates
Mobile Regeneration 1 Open the Diaganos- tics Menu by swiping up from the Gauge Screen and selecting Diagnostics. 2 Select Manual Regen. 3 Follow the on-screen prompts to enable Manual Regen. Injector Balance Rates Injector Balance Rates (Duramax Only) 1 To view Injector Balance Rates on your GM Duramax, enter the Diagnostics Menu.
Page 41: Device Info
Help/Info Device Info While in the Main Menu, select the Settings icon, and open the Help/Info Option. The device info described below assists our Tech Support team when support is needed. HELP/INFO Device Info Enter License Codes Tutorials TIP: Select Exit to F.A.Q’s return to the main menu.
Page 42 Tutorials All of the available tutorials are stored here and can be accessed at any time. 1 Select the Tutorials option. HELP/INFO Device Info 2 View each tutorial by swiping left/right. Tutorials F.A.Q’s 3 Select Continue to Tech Support return to the Help/Info menu.
Page 43: Tech Support
Tech Support This option is to be used only when Tech Support requests information. NOTE: When a menu item is selected, a set of “keys” will be given. Tech Support will use these keys to produce a code that you will use to access the menu items functionality.
Page 44 www.edgeproducts.com For more information contact our Technical Support team: (801) 476-3343 6:00 am - 5:00 pm MST tech@edgeproducts.com To expedite your support, please have your Vehicle Information, Part Number, and Serial Number ready prior to contacting us. Copyright© 2020 D10023800 Rev00 04/20/2020...
