Summary of Contents for Step2Gold Ta-Da 13820

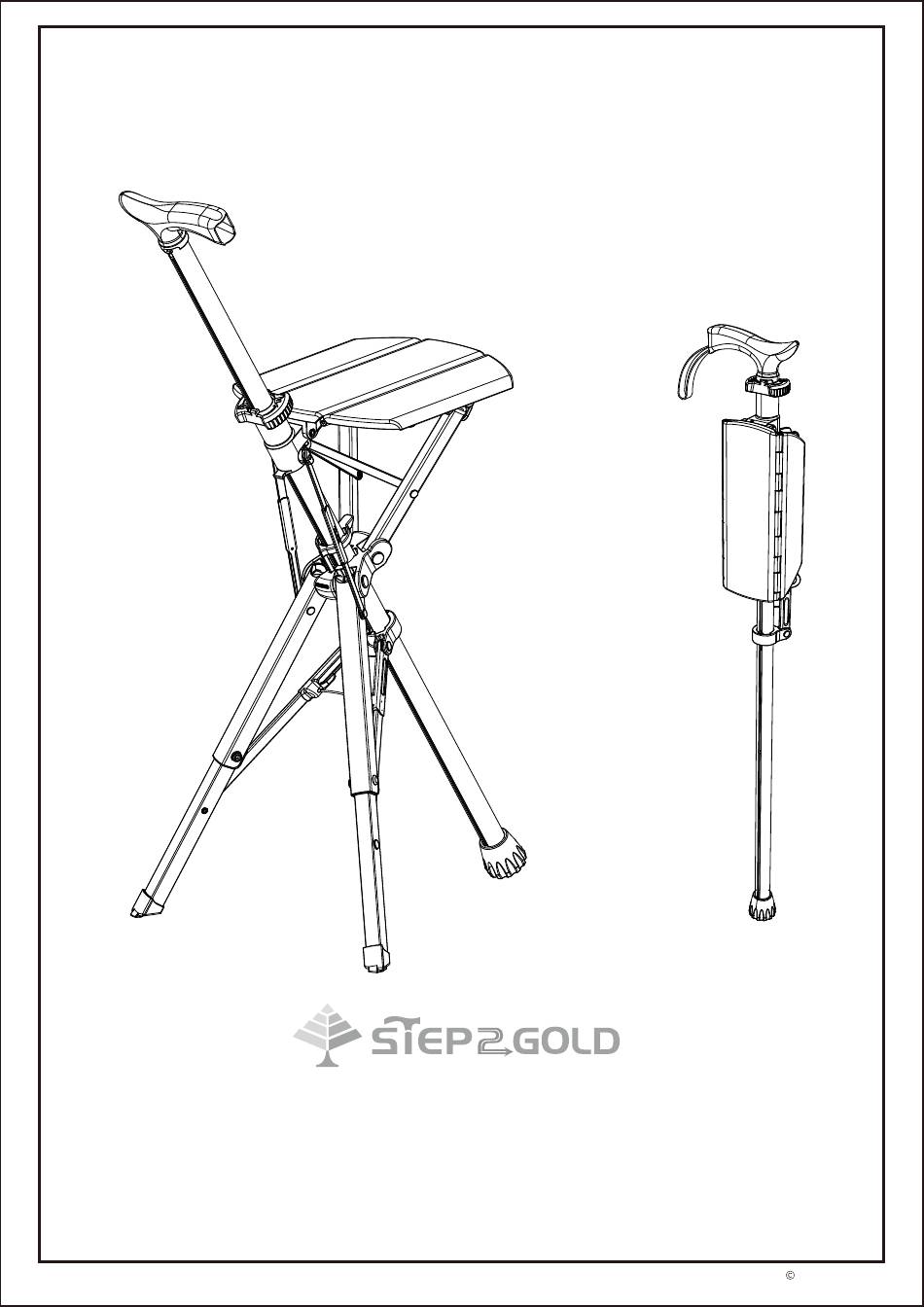

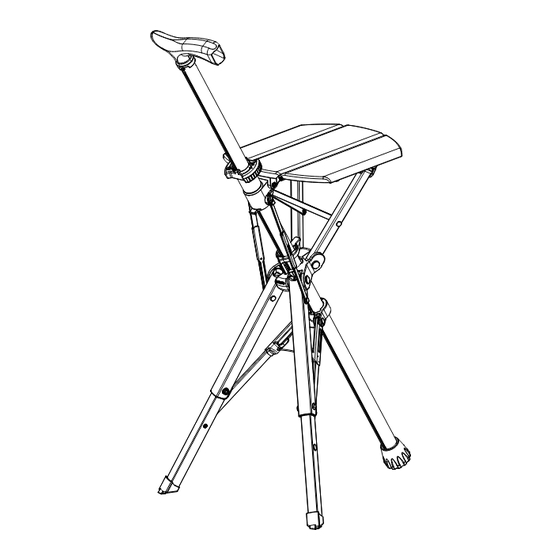

- Page 1 Ta-Da CHAIR Model #13820 / #13850 / #13880 ® ® www.step2gold.com IMPORTANT RETAIN FOR FUTURE REFERENCE : READ CAREFUL 2015 Step2Gold Co., L TD.
- Page 2 ．Several groundbreaking patented designs make the product safe and easy to use. Users will be able to experience its extraordinary functionality and practicality. Ta-Da CHAIR Suggested Use ® ． People, with ages 16 or above, are able to walk independently and have good sitting balance when sitting. 2015 Step2Gold Co., LTD.
- Page 3 B : Wrist Strap D : Rotary Switch Safety Lock E : Rotary Switch F : Collapsible Seat G : Center Piece 51cm H : Shaft : Non-slip Rubber Feet L：Drainage hole I：Auto Leg-lock Device J : Foldable Legs 2015 Step2Gold Co., LTD.
- Page 4 15 centimeters from the front of your foot on the side where you hold the stick. The chart on the right is approximate and is to be used as reference only. Please choose the suitable length according to what is most comfortable for you. 2015 Step2Gold Co., LTD.
-
Page 5: Product Specifications
Walking stick length : 34½'' (88cm) Weight : 1.96lbs (0.89kgs) Weight :1.98lbs (0.90kgs) Weight :2.00lbs(0.91kgs) Seat Height : 20" (51cm) Seat Height : 20" (51cm) Seat Height : 20" (51cm) ＊Weight Capacity: 80kgs Material : Aluminum alloy, PP, Nylon, Rubber, Stainless 2015 Step2Gold Co., LTD. -
Page 6: Safety Warnings
． The designed service life is limited to x years indoor or x years outdoor. Durability would be impaired by intensive solar radiation, dust, high temperature and continually drenched by rain, In case any doubt raised during usage, please stop using the product. 2015 Step2Gold Co., LTD. - Page 7 ．Find a firm and flat surface and place the walking stick vertical to the floor. Turn the Rotary Switch (E) counter-clockwise all the way to the unlocked position, and then the seat and the legs will slide down and convert automatically into a three- legged chair. 2015 Step2Gold Co., LTD.
-
Page 8: Safety Warning
．Inspect to be sure the seat and the legs are fully open and that all the parts are intact. Press the seat with your hand to ensure stability. For user safety, sit facing the handle with the shaft between your legs and your hands on the handle for balance. 2015 Step2Gold Co., LTD. - Page 9 ．Pull up the Rotary Switch (E) until it reaches top of the shaft and then turn the Rotary Switch (E) clockwise all the way to the locked position. 2015 Step2Gold Co., LTD.
- Page 10 ． Press the lower Center Piece (G) until hearing the clicking sound of the inner hook. Ta-Da Chair can be used as a walking stick after the legs (J) are folded into the ® inner side of the seat and firmly secured. 2015 Step2Gold Co., LTD.
-
Page 11: Clean And Maintenance
．When not using, please store this product indoors in a cool and ventilated place and keep it away from intense sunlight or heat to prevent discoloration, deformities, or material degradation. 2015 Step2Gold Co., LTD. -
Page 12: Parts Replacement
Parts Replacement Consumables Non-Slip Rubber feet:K Non-Slip Rubber feet: : For Right Leg : For Left Leg M: Non-Slip Rubber feet Disassembly Die ※One set of replacement kit contains 1pc of rubber feet left (K ), 1pc of rubber feet right (K ) and 1pc of Disassembly Die (M). - Page 13 Remove the Non-Slip rubber feet（K ） １ ２ ３ Refer to step 1 and step 2, place the Disassembly Die onto the seat leg. Hammer the face with icon on (Users need to wear glove during operation and keep people beside from harmful) Mount the Non-Slip rubber feet （K ）...
-
Page 14: Patent Pending
Taiwan Patent No. M497463 Japan Japanese Patent No. 5811366 China 中国发明专利专利号：1708368 中国发明专利专利号：1879521 中国实用新型专利专利号：4415649 Patent Pending CN2012/001584 13/962920 EP13178552.9 CN2014/084497 14/289120 CN2014/079572 EP14189631.6 14/583468 EP15150269.7 14/645341 Japan Taiwan 2014-214377 TW102112330 2015-920 TW103101267 TW103110140 China 中国发明专利专利申请号：201310334095.6 中国发明专利专利申请号：201410375192.4 中国发明专利专利申请号：201410782842.7 2015 Step2Gold Co., LTD. - Page 15 Thank you for purchasing the Step2Gold products Manufacture:Step2gold Co. Ltd. Add:4F,No.118,Chengdu Rd., Xitun Dist, Taichung City 40751, Taiwan Tel:+886-4-23148282 Fax:+886-4-23161837 Web:www.step2gold.com...
Need help?
Do you have a question about the Ta-Da 13820 and is the answer not in the manual?
Questions and answers
Can the adjustable height top section be totally removed for transport in a suitcase for both the round and flat shaft models?

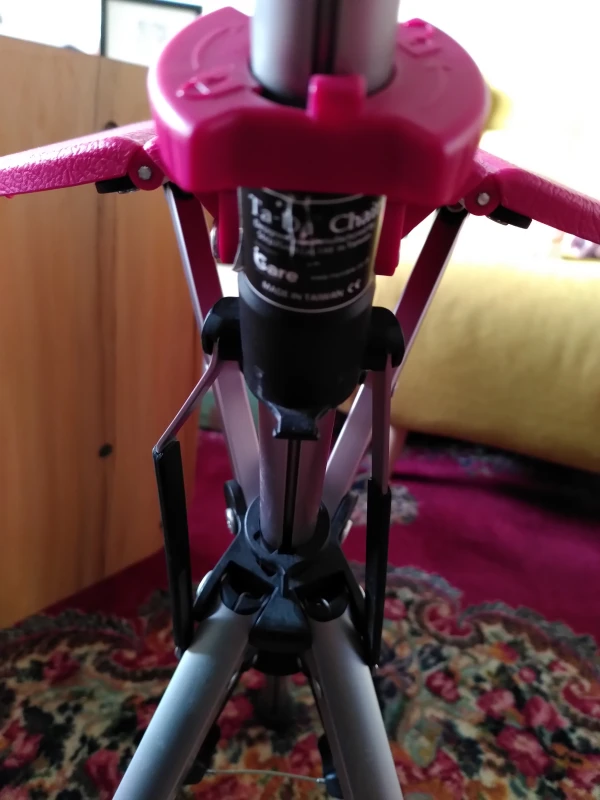

One of the support struts has bent. Is it possible to repair this or will I need to replace the whole stick?
