PZ-1000A / WZ-1000A
ADVISORY PANEL WITH AREA SELECTION
SWITCHING AND CONNECTION MODULE
A 10 zones switching module with music and advertisements selection.
It can function independently, or bus, operated by the desk PZ-1000A.
It allows the areas of music and announcements selection.
It integrates mixer with microphone inputs, line and chime notice.
The system allows a maximum of 30 WZ-1000A modules (up to a maximum of 300 zones).
By two power amplifiers, can stream music and announcements selective.
General characteristics:
-Maximum distance to desk center: 1000 m
-Memory selection of areas of non volatile music.
-Maximum power-line speaker: 500 W.
-Status indication by LED drivers zones of two colors: green for music, red for ads.
-Oscillator with two microphone inputs dynamic unbalanced
-Two-line inputs direct to mixer
EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM
Tel.: +34 934 772 854 / +34 609 914 787

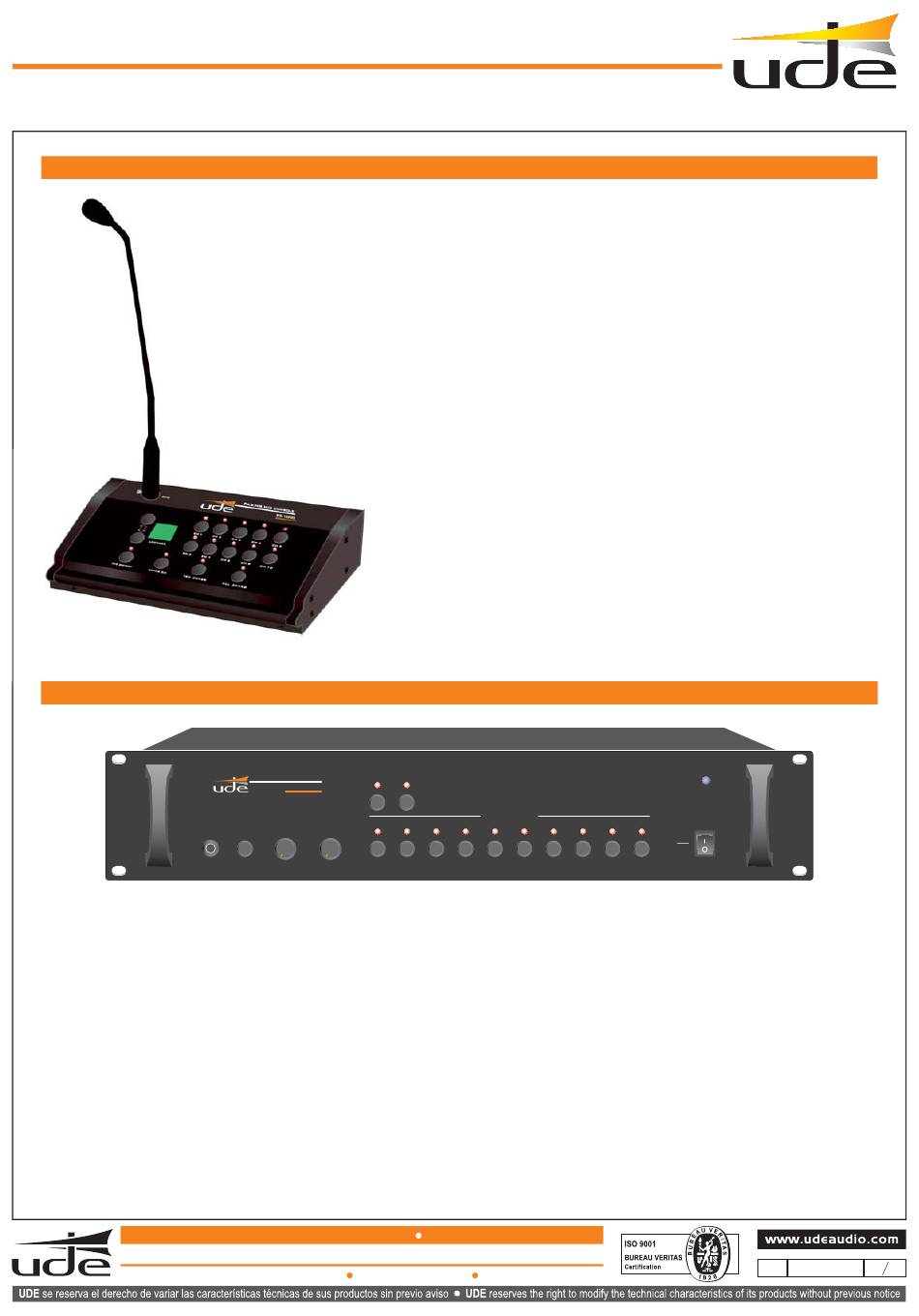

DESCRIPTION PZ-1000 DESK
DESCRIPTION WZ-1000A
MUSIC /CALL
PAGING SELECTOR
WZ-1000
MIC 1
CHIME
MIC 1
MIC 2
5
5
4
6
4
6
3
7
3
7
2
8
2
8
9
9
1
1
0
10
0
10
UNIÓN DESARROLLOS ELECTRÓNICOS
ude@udeaudio.com
The PZ-1000A digital desk can provide ads per selective areas and
general announcements.
It works in conjunction with the module WZ-1000A. It can handle from
1 to 30 WZ-1000A selectors areas with a maximum of 300 zones.
It is also possible to use up to 16 PZ-1000A desks in the same
system.
The different elements are interconnected via a FTP bus cable,
providing a flexible, reliable and easy to use.
General characteristics:
-Digital display.
-Zone selection buttons.
-Management selectors PZ-1000A modules.
-Easy itegration with the GD-36 digital player/recorder.
-LED driver status.
-Notice carillon.
-Microphone volume and chime adjustment.
-Auxiliary input signal.
-Auxiliary output signal.
-Maximum distance from panel to switch: 1000 m.
-Power supply 24 Vdc.
ALL ZONE
PAGING ZONES
1
2
3
4
5
6
PUBLIC ADDRESS SYSTEMS
BARCELONA - SPAIN
POWER
7
8
9
10
ON
OFF
2
610.490A
1
9
rev.
Advertisement
Table of Contents
Summary of Contents for Ude PZ-1000A
- Page 1 It works in conjunction with the module WZ-1000A. It can handle from 1 to 30 WZ-1000A selectors areas with a maximum of 300 zones. It is also possible to use up to 16 PZ-1000A desks in the same system. The different elements are interconnected via a FTP bus cable, providing a flexible, reliable and easy to use.
-
Page 2: Front Controls
PZ-1000A / WZ-1000A PZ-1000 ANNOUNCEMENTS WITH SELECTION AREAS DESK FRONT CONTROLS LED Button SELECTED AREA LED button GENERAL NOTICE ACTIVATION LED button 10 ZONES ACTIVATION LED button CARILLON ACTIVATION CH 1 CH 2 CH 3 CH 4 CH 5 ADDRESS... -
Page 3: Specifications
Weight: Properties (work by modulating Vox): The microphone input has priority over a microphone 2, line 2 and remote PZ-1000A desk. The input Line 1 has priority over a microphone, microphone 2, line 2 and remote PZ-1000A desk. 610.490A rev. - Page 4 The metallic shield must be connected. STRUCTURE OF TECHNICAL PZ-1000A / WZ-1000A Connect the PZ-1000A desks modules and WZ-1000A bus cable FTP. Attention to the connection of RJ45 connectors (see Figure 1). Connect 24 Vdc power supply included with each desk.
- Page 5 PZ-1000A / WZ-1000A CONFIGURE THE IDENTIFIERS OF EACH PZ-1000A DESK Configure the identifiers of each PZ-1000A desk (from 1 to 16). Each PZ-1000A must have a different identifier on the bus. Process: Power switch in OFF Hold the selector NOTICE GENERAL (ALL AREAS) is activated during the switch to start position.
- Page 6 PZ-1000A consoles have the same priority among themselves. The first that select a zone takes control of the system until is deselected. If a desk PZ-1000A tries to select a certain area, while another is a function, the LEDs light up quickly and deactivate. If a desk PZ-1000A seeking access to nonexistent package, the LEDs flash slowly and deactivate.
-
Page 7: Typical Connection
PZ-1000A / WZ-1000A TYPICAL CONNECTION (L100V Output) 610.490A rev. - Page 8 PZ-1000A / WZ-1000A WZ-1000A - odification to operate with 0 audio signals REMOVE COVER AND CUT THE RESISTANCE AS IF SHOWN THE RESISTANCE IMPORTANT: A WZ-1000A used with L100V should not be reused with 0 dB signal 610.490A rev.
- Page 9 PZ-1000A / WZ-1000A TYPICAL CONNECTION (0 dB output signal) 610.490A rev.
