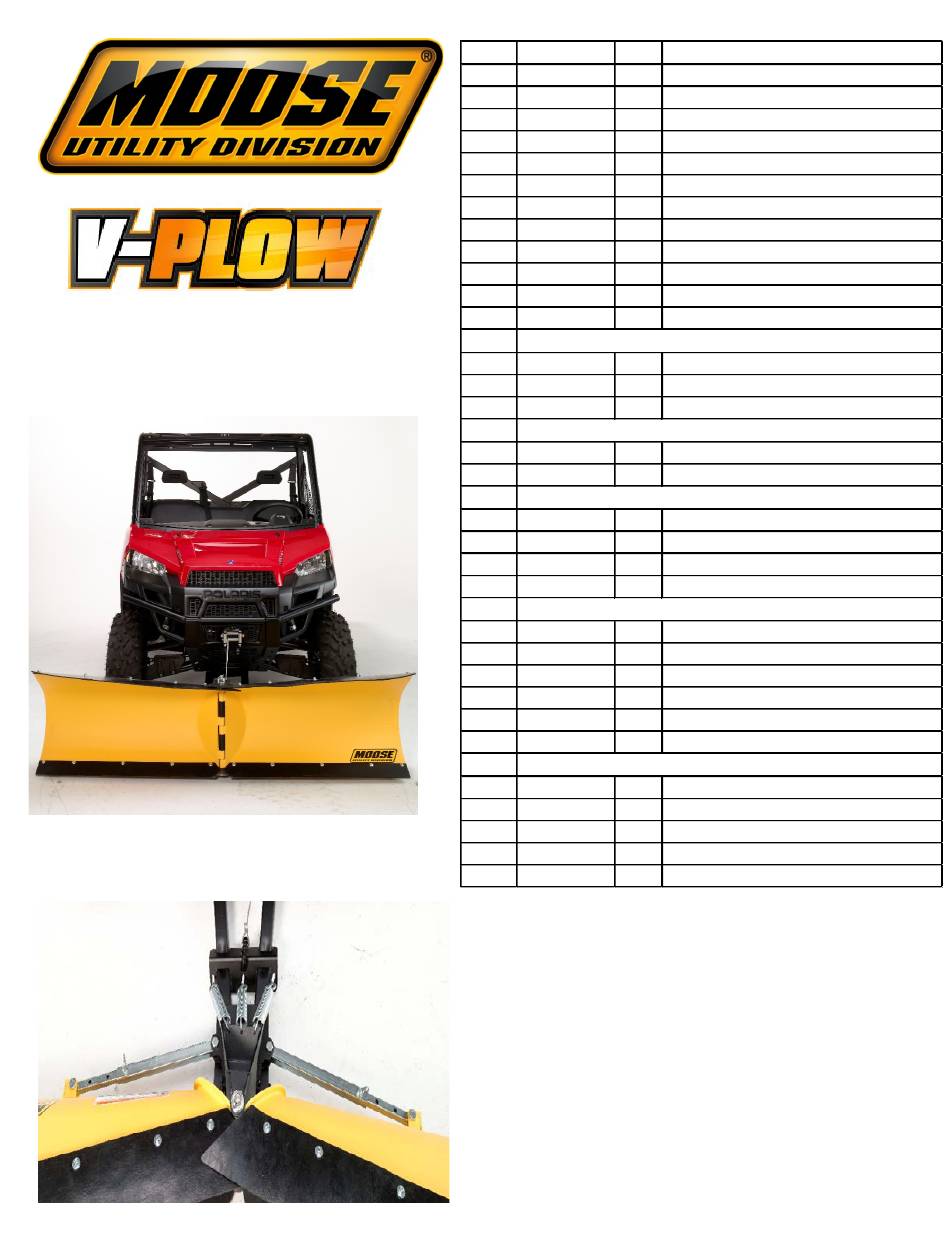

MOOSE V-PLOW INSTRUCTIONS
PART# 4501-0841 PUSH TUBE
PART# 4501-0842 LEFT BLADE
PART# 4501-0843 RIGHT BLADE
ITEM PART#
QTY. DESCRIPTION
1
2718-100
1
2
2718PF-R
1
2719PF-R
1
3
2718PF-L
1
2719PF-L
1
4
2718-200
1
5
2718-115
2
2719-115
2
6
2718-120
2
2719-120
2
7
2718-400
1
8
2550PF
2
FLAP HARDWARE (BB2567) per blade
9
HDW2069
7
10
HDW9003
7
11
HDW7058
7
WEARBAR HARDWARE (per blade)
12
HDW2064
5
13
HDW7056
5
BLADE SPRING HARDWARE (BB2718-2)
14
HDW2369
3
15
HDW2117
3
16
HDW9029
3
17
HDW7061
3
TRIP PIN PARTS & HARDWARE (BB2718-1)
18
2713-204
1
19
HDW9017
2
20
HDW2315
2
21
HDW9110
1
22
HDW7078
1
23
HDW9006
8
MANUAL ADJUST ARMS (BB2718-3)
24
2718-113
2
25
2718-114
2
26
HDW9440
4
27
HDW9438
4
28
HDW2323
2
QUESTIONS OR COMMENTS CALL 320-964-1616
7:00 to 4:30 CST Monday thru Thursday
INST2718PF
Push Tube Weldment
72" V-Plow Right Blade
82" V-Plow Right Balde
72" V-Plow Left Blade
82" V-Plow Left Blade
Center Support
72" Rubber Flaps
82" Rubber Flaps
72" Wear Bar
82" Wear Bar
Center skid Pin
Blade Skid
5/16 x 3/4 Carriage Bolt
5/16 Flat Washer
5/16 Nylock Nut
5/16 x 1 Carriage Bolt
5/16 Whiz Nut
Blade Spring
3/8 x 6 Eye Bolt
3/8 USS Flat Washer
3/8 Nylock Nut
Trip Pin
3/4 Flat Washer
3/16 x 1 Lynch Pin
1/2 x 2 Hex Bolt
1/2 Hex Nut
5/8 Flat Washer
Outer Adjustment Tubes
Inner Adjustment Tubes
5/8 x 2-1/2 Hex Bolt
5/8 Nylock Nuts
3/8 Wire Loop Pins
