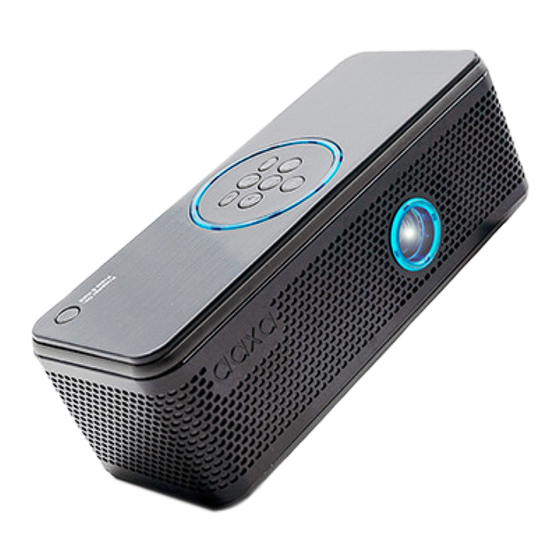

AAXA Technologies BP1 User Manual

Speaker projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP1 and is the answer not in the manual?

Questions and answers

Summary of Contents for AAXA Technologies BP1

  • Page 1 User Guide...
  • Page 2 Caution! WARNING: Please use this product as instructed. Misuse may cause injury or death. DO NOT use while driving Caution for Battery Use • Do not pierce or puncture the battery DO NOT expose to water or wet with sharp objects surfaces.

  • Page 3: Table Of Contents

    Table of Contents Video Player Menu 13-16 Chapter 1: BP1 at a Glance Photo Menu 17-20 BP1 Introduction Connecting to Device via Keypad Keypad Digital AV 21-23 Accessories Connecting to Device via Chapter 2: Getting Started USBC 24-25 Powering Device On / Off...

  • Page 4: Chapter 1: Bp1 At A Glance

    Chapter 1 BP1 at a Glance Main Unit Back Projector Power Button Focus Adjustment TF Card Charging Port Headphone Out Digital AV Port USBC (compatible) Power/Mode Switch Display Port USB Port/ Power Bank Port...
  • Page 5 Top Keypad BT Source Button Back/Return Menu Scroll Volume Down Volume Up Media Player Vertical Menu Navigation Keystone Adjustment Volume Up Menu Scroll...

  • Page 6: Accessories

    Accessories USB Wall Charger USBC to USBC Cable (5V/2.4A) w/ MicroUSB Cable *Under various circumstances, the actual accessories may be different from those shown in the pictures above. Additional accessories are available for purchase at www.aaxatech.com...

  • Page 7: Chapter 2: Getting Started

    Chapter 2 Getting Started Powering ON the projector To power-on a fully charged BP1, toggle the power switch to BT/Projector. Press & Hold the “Projector On” button for 3-5 seconds To Turn on BT Speaker Toggle Power Switch to BT/Projector.
  • Page 8 Focus Adjusment / Throw Distance Focus Adjustment • Spin the focus wheel up or down until the image becomes clear. Throw Distance Chart Diagonal Size Throw Distance Units: Inches Units: Inches 16:9 Aspect Ratio Throw Ratio 1.65:1 *minimum throw distance: 10 inches...

  • Page 9: Connecting To Bp1 Speaker Via Bt

    *Speaker will say “BT Mode” when ready for pairing. Step 2: In the BT new devices menu on your smart phone or device, the BP1 will be listed as “AAXA-BP1”. Click to pair. Step 3: Turn on BT on smart phone or device. Toggle Power Switch Step 4: When succuessfully paired to BT Speaker, BP1 will say “Connected”.

  • Page 10: Connecting To External Speakers Via 3.5Mm

    Connecting External Speakers via 3.5mm Step 1: Connect your speakers/headphones to the projector’s audio port. Step 2: Ensure that the projector and/or the headphones are powered on. Step 3: Place the headphones on and enjoy! *CAUTION Prolonged use of headphones at a high volume may impair hearing.

  • Page 11: Loading External Content

    Loading External Content The BP1 can read files directly from both a TF Card and USB Drive. Supported file types include: JPG / AVI / MP3 / GIF / BMP / TXT (up to 64 GB) (up to 64 GB)
  • Page 12 How to insert your USB Drive • Slide in your TF card into the TF card • Slide your USB Drive into the USB slot on the back of the BP1 (as shown port. in picture). • Gently slide the drive until it cannot •...
  • Page 13 Loading External Content Cont. Once your TF Card or USB Drive is inserted into the projector, the TF Card or USB Drive should load automatically and the content can be found through the Photos , Music, and Videos icons located on the Main Menu, depending on the file type you wish to play.

  • Page 14: Chapter 3: Menu Screens

    Chapter 3 Menu Screens Main Menu The BP1 features a built in PMP (Portable Media Player) function. This function allows the projector to play videos, pictures, music, and text files directly from your connected storage device. Inputs Menu Back/Return •...

  • Page 15: Brightness Menu

    Select the brightness you wish (Fig. 3.2) • Choose among Eco, Standard and Boost Fig. 3.1 Fig. 3.2 * The BP1 can only run ECO mode with battery on low charge (battery and DC mode). For best performance, please charge battery to 100% prior to use.

  • Page 16: Video Player Menu

    From the submenu (Fig. 3.2), select the storage media with the stored files. • Choose which file you wish to play. Fig. 3.1 Fig. 3.2 The BP1 will show all folders and files you have on your USB or TF drive. Use the navigation buttons to select folders or files.
  • Page 17 Video Player Menu While Playing Videos While playing videos, the volume is adjustable. Further controls are available in the video player submenu - which is accessed through the “OK” button. *Review Specification section of this manual for supported video formats. Volume Up Volume Down Enter Video Player Submenu...
  • Page 18 Video Player Submenu Playing Videos The Video Player Submenu can be accessed by pressing “OK” during video playback. To exit the Video Player Submenu, press the “Back” button or wait 5 seconds. To navigate the Playback Menu, use the directional buttons on the navigation pad or remote to highlight the option you wish to choose.
  • Page 19 Video Playback FAQ How do I loop a video? 1. Choose either USB or TF Card for playback 2. Navigate the folders until you reach the file you wish to play. 3. Highlight the file you want to play, then confirm the selection. 4.

  • Page 20: Photo Menu

    From the submenu (Fig. 3.5), select the storage media with the stored files. • Choose which file you wish to play. Fig. 3.4 Fig. 3.5 The BP1 will show all folders and files you have on your USB or TF Card drive. Use the navigation buttons to select folders or files.
  • Page 21 Photo Menu While Viewing Pictures While viewing pictures, further controls are available in the Photo Submenu - which is accessed through the “OK” button. Previous Picture Next Picture Enter Photo Player Submenu • To open/hide the Photo Playback menu, use the “OK”...
  • Page 22 Photo Submenu Viewing Pictures: The Photo Submenu can be accessed by pressing “OK” during picture slide-show playback. To exit the Photo Submenu, press the “Back” button or wait 5 seconds. To navigate the playback menu, use the directional buttons on the navigation pad or remote to highlight the option you wish to choose (Fig 3.6).
  • Page 23 Photo Slideshow FAQ How do I play a slideshow? How do I manually control the 1. Choose either USB or TF Card slideshow? for playback 1. After selecting the photo you wish to be displayed, you can press “play” to start the slideshow (as outlined in the previous FAQ).
  • Page 24 Connecting to a Device via Digital AV The BP1 has a Digital AV port for a wide range of compatibility. A digital AV cable is required to connect your BP1 to your other device. In the Main Menu Step 3: Select “Digital AV”...
  • Page 25 Connect the other end of the Digital AV Cable to your BP1’s Digital AV port. Step 3: In the Main Menu, select the “Digital AV” Icon. Your BP1 should now be mirroring the content from your device. Note: If you’re connecting to a computer or laptop and the projector does not...
  • Page 26 Connecting to a Computer Cont. Step 4: Enabling Digital Video output on your Computer – To enable Digital Video output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer –...
  • Page 27 The BP1 can connect to many media devices including: computers, laptops, iPads, and smart phones. *Device requires video out capabilities through USBC to be displayed with the BP1. Check with the manufacturer. *BP1 doesn’t need a USBC presentation cable for Android devices since it has mirroring capabitlies on board.
  • Page 28 Cable to your BP1’s USBC (compatible) Display Port. Step 3: In the Main Menu, select the “Mirror” Icon. Your BP1 should now be mirroring the content from your device. NOTE: When connecting to a USBC device, the BP1 may experience shorter battery runtime due to the continuous charge the BP1 is provid- ing to the connected USBC device.
  • Page 29 Use the navigation buttons to select folders or files. Viewing Text Files: The BP1 Speaker Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad or remote to flip through the pages you have in the present folder.
  • Page 30 • Balance • Auto Volume Advanced Within the settings menu, there are • OSD Language three more submenus that allow you • Restore Factory Default to customize your BP1 to the settings • Slideshow Time • Software Version you want.

  • Page 31: Picture Settings

    Picture Settings Picture Mode • Changes the picture mode to different settings depending on your usage Color Temperature • Adjusts the color temperature from warm to cool (red to blue) Aspect Ratio • Changes the aspect ratio of the picture - Auto, 4:3, 16:9*, etc. *Caution: Some pictures may be cut off when aspect ratio is set incorrectly Projection Direction...

  • Page 32: Sound Settings

    Sound Settings Sound Mode • Changes the sound mode depend- ing on what is currently playing Balance • Adjusts the sound balance manu- ally Auto Volume • With the Auto Volume On, the video can be opened with volume automatically...

  • Page 33: Options Settings

    Option Settings OSD Language • Changes the language of the device. Options include English, Spanish, Chinese, German, French Restore Factory Default • Restores the projector to factory settings Slideshow Time • Changes the time each slide dis- plays when playing a slideshow Software Version •...

  • Page 34: Chapter 5: Technical Details

    Be sure to setup the computer to enable a video signal output. On some lap- tops this is done by pressing and holding Function F5 key. If using the BP1 as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”.
  • Page 35 To power on the projector, the power button needs to be depressed for a full 5 seconds. Try holding the power button until the projector turns on. The BP1 takes 5-10 seconds to turn on. NO PICTURE / FILE NOT SUPPORTED Possible Causes...

  • Page 36: Specifications

    Full Sized USB 2.0, Micro USB (Charging Only) Dimensions: 6.8” x 2.6” x 2.4” Weight: 1.23 lbs Supported File Formats: MP3, WMA, OGG, WAV, JPG, AVI, BMP, GIF, TXT *HDMI™ is a registered trademark of HDMI Licensing LLC. AAXA Technologies is not affiliated with HDMI Licensing LLC.
  • Page 37 Notes...
  • Page 38 Please direct all customer service inquiries to: AAXA Technologies, Inc. 17781 Sky Park Cir., Suite #F Irvine, CA 92614 (714) 957-1999 info@aaxatech.com...
