Primacoustic FullTrap Installation Manual

FullTrap
INSTALLATION MANUAL

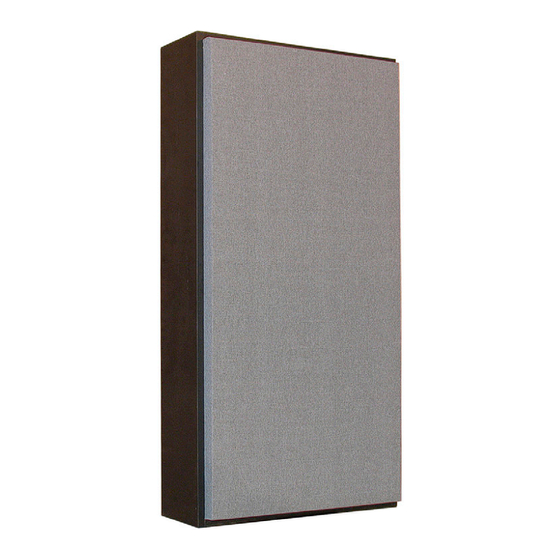

Congratulations on purchasing the FullTrap from Primacoustic. The FullTrap is an easy to
assemble bass trap that will effectively absorb a wide bandwidth of frequencies and look
great for many years to come. Please take a few minutes to read through this assembly
manual. It will give you a list of included parts, as well as step by step assembly and wall
mounting instructions. Please refer to www.primacoustic.com/appnotes for various placement
options, benefits, and general room acoustics information. Should you have any questions or
comments, we invite you to send an email to: info@primacoustic.com.
23" TOP
23" BOTTOM
48" SIDES
BEVELED WALL
MOUNT
BEVELED CROSS
SUPPORT
CROSS SUPPORT
46" PANEL STOPS
FABRIC COVERED
ACOUSTIC PANEL
LOADED VINYL
Warranty: Please inspect panels immediately after purchase and before mounting. Primacoustic Broadway acoustic panels are guaranteed to be free of manufacturing defects for a period of thirty (30) days after purchase. In the unlikely
event that a defect is uncovered, please call 604-942-1001 to obtain an RA number (Return Authorization number) from Primacoustic before the thirty (30) day warranty period expires. Once you have obtained an RA number you must
return the product, freight prepaid, within fifteen (15) days after the date the RA number is issued. Please return the product in the original packaging (or another, affording an equal degree of protection) with all of the following: (1) RA
number clearly marked on the returned package; (2) a receipt or bill of sale showing proof of purchase from an authorized retail seller; and (3) a written note describing the defect and including your name, address, telephone number
and the applicable RA number. You are solely responsible for all shipping and insurance costs for returning the product to Primacoustic, and you will not be reimbursed or compensated for any loss or damage incurred during return
shipping. Primacoustic will at its discretion repair or replace the panel. Should the panel be no longer available, Primacoustic reserves the right to exchange this with a panel of similar performance and value. Due to different dye lots,
Primacoustic cannot guarantee exact color match. This Warranty shall solely extend to the original owner and is limited to manufacturing defects and excludes any damage due to wear and tear, abuse, misuse, misapplication, color
fading or deterioration due to prolonged exposure to ultra violet light, smoke, humidity or other environmental factors. It is understood that the use and suitability of Broadway is entirely the responsibility of the buyer or specifying engineer
and as such, these parties agree to hold Primacoustic, or it's associated company, and/or officers, harmless from any responsibility whatsoever other than what is clearly outlined in this warranty.
TOOLS REQUIRED:
- Medium sized Phillips screwdriver
- 48" Bubble Level and small bullet level
- Wall Stud finder (recommended)
- Cordless Drill (recommended for installing drywall
anchors)
BOX CONTENTS:
Before beginning assembly, please take a moment to
familiarize yourself with the box contents. It will include:
(QTY) Description:
(2) 48" Black frame side sections
(1) 23" Black frame 'Top' section
(1) 23" Black frame 'Bottom' section
(2) 46" Panel Stops
(1) 23" Beveled Wall Mount Stretchers
(1) 23" Beveled Cross Support
(1) 23" Cross Support
(1) Fabric wrapped fiberglass panel
(1) Loaded vinyl barrier
HARDWARE BAG CONTENTS
(QTY) Description:
(8) Cams-locks
(8) Cam-pins
(16) Wooden Dowels
(8) Medium Phillips Screws
(8) Short Phillips Pan-head Screws
(2) Long Phillips Pan-head Screws
(2) Heavy Duty Phillips Screws
(2) Plastic Drywall Anchors
1588 Kebet Way, Port Coquitlam, BC Canada V3C 5M5
Tel: (604) 942-1001 • Fax (604) 942-1010
Primacoustic is a division of Radial Engineering Ltd.
