Summary of Contents for Maizu F1

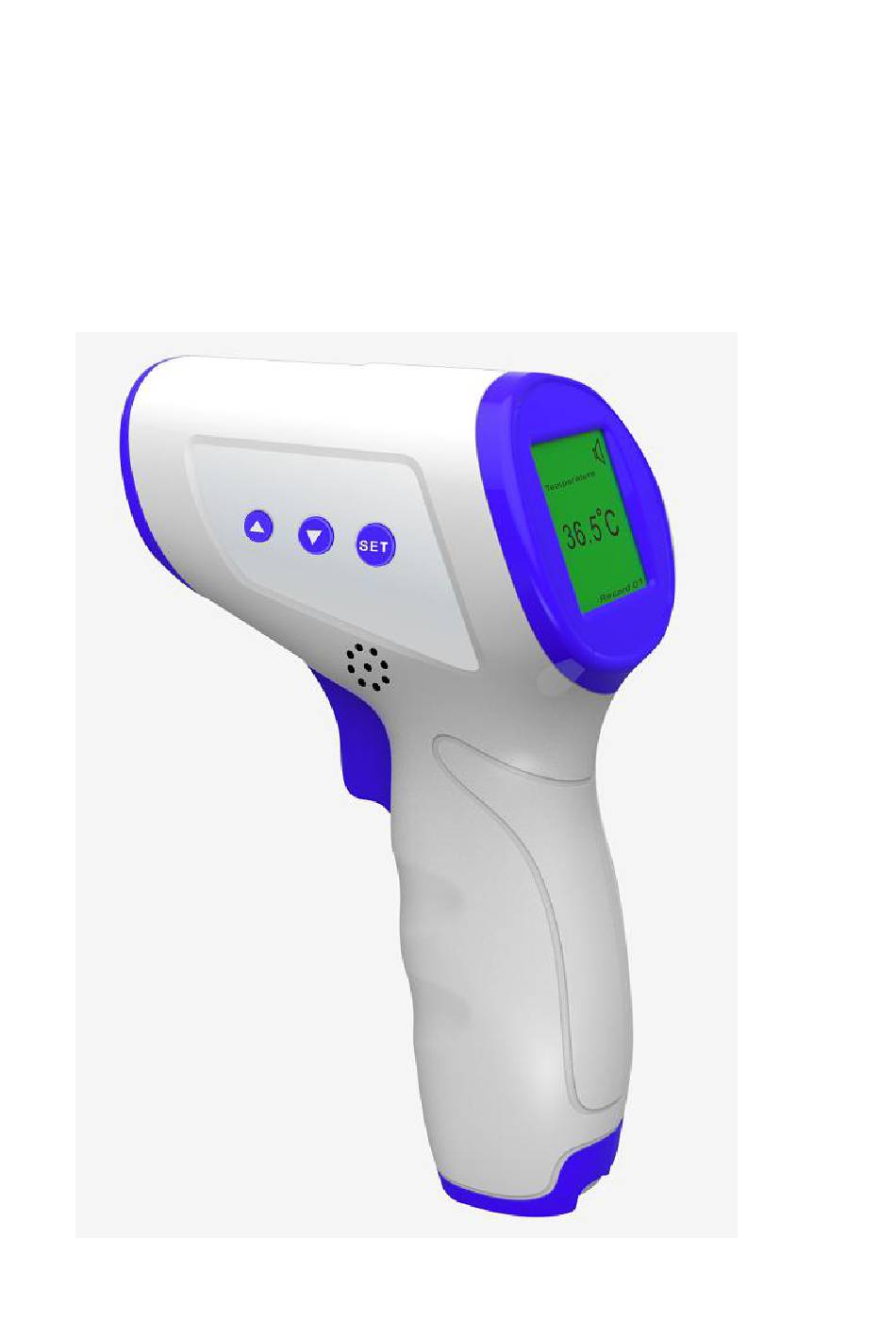

- Page 1 Infrared Thermometer Product User manual Model：...
- Page 2 Catalog: Product performance, main structure and suitable range Product Use guidance and precautions Record operation Information description during using Temperature Range Product maintenance Disinfection method Storage Transportation Battery installation and replacement Explanation of figures, symbols, abbreviations, etc. used in medical device labels...
-
Page 3: Main Structure
Ⅰ. Product performance, Main structure and Suitable range 1.Main Structure： It is mainly composed of infrared sensor, microprocessor, EEPROM, power supply, electroacoustic element, LCD and shell Description 1. LED Screen: display testing data 2. Setting Key: Start setting page 3. ▲ Key: Check data in Temperature mode, adjust data in Setting mode 4. - Page 4 5. Test Key: Test after power on 6. Sensor: This end should against tested object during testing 7. Battery Cover: Open it when changing the battery Product Performance Product specification Battery 7# AAA battery Weight 120g Size 153.5*96.8*50.2mm Technical parameter 34-42.9C（97-109F）...
-
Page 5: Using Method
Press the test key to light up the screen, then long press the setting key to enter the menu selection: F1：Change the temperature into ℃ or °F F2：Setting the high temperature number, the device will alert when the temperature over this number F3 ：... - Page 6 compensate a certain temperature for human body test, but not for object surface temperature F5:Buzzer can choose on/off option If choose on, there will be a "beep" after the temperature test. After setting, against the tested object and press the temperature measurement key to test.
-
Page 7: Disinfection Method
transportation conditions： 1. Product maintenance : When using the non-contact infrared thermometer, please follow the maintenance service instructions to solve the problem. Once the maintenance service guidance can not be resolved, please contact our customer service. 2. Disinfection method Wipe the surface of the object twice a day with 70% ~ 80% (volume ratio) medical alcohol solution (refer to clause c.11.2.3 of WS / T 367-2012). - Page 8 battery cover from the bottom of the handle and put in a new battery. Ⅴ. Explanation of figures, symbols, abbreviations, used in medical device labels...
