AllSee PushShare PSRV1.1 User Manual

Receiving unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PushShare Receiving Unit
User Manual
Manual Version PSRV1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PushShare PSRV1.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AllSee PushShare PSRV1.1

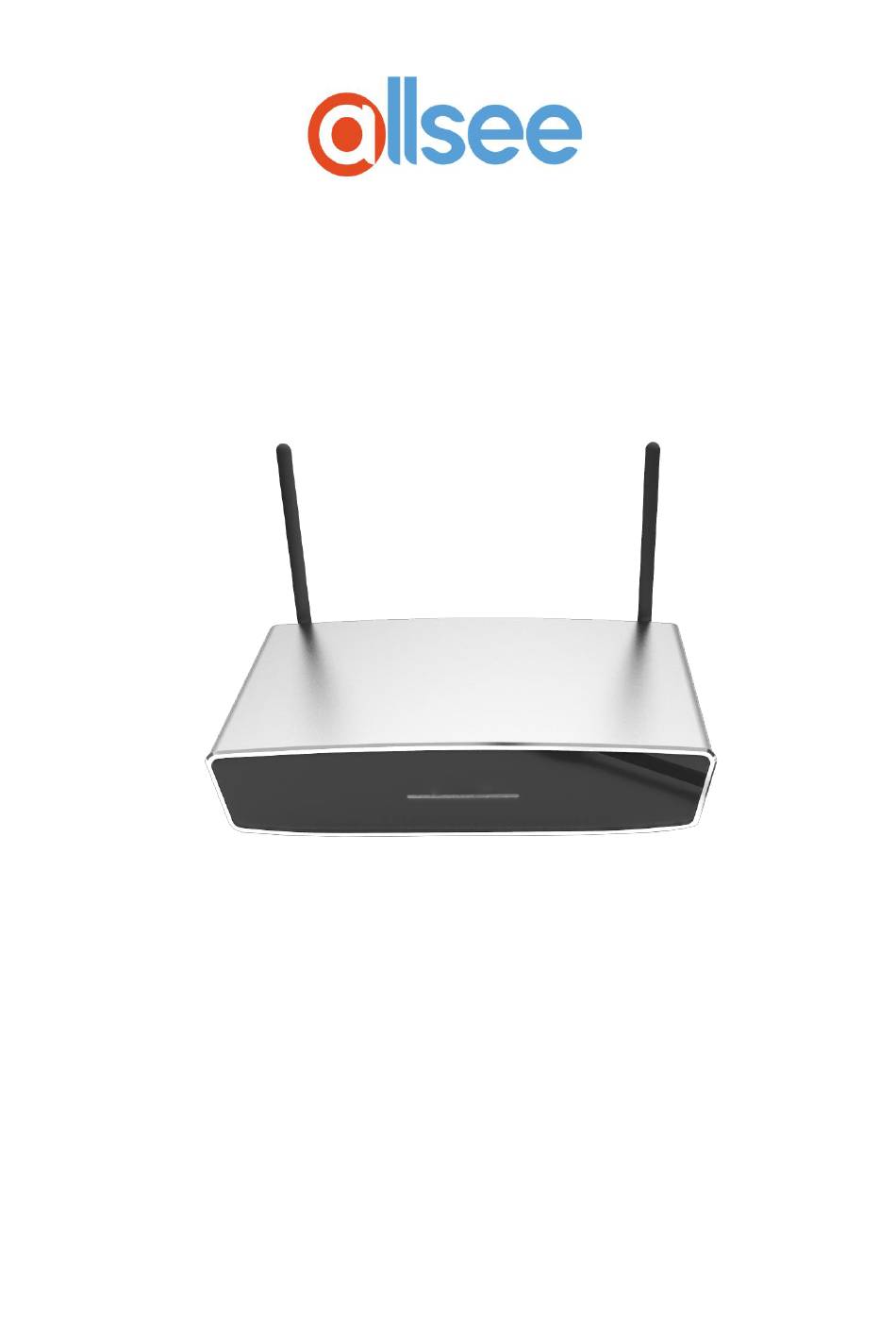

  • Page 1 PushShare Receiving Unit User Manual Manual Version PSRV1.1...
  • Page 2 PushShare Receiving Unit User Manual Safety Instructions • Read the instruction manual carefully before use. • Use only parts or accessories (especially power adapters) recommended by the manufacturer. Unapproved parts may be hazardous and cause injures to the product or users, and will void the warranty. •...
  • Page 3 PushShare Receiving Unit User Manual Quick Start Guide 1. Remove the PushShare Receiving Unit from the packaging and connect the power. 2. Connect the Receiving Unit to your display via HDMI and to the PushShare dongle via USB. If your display is a touch screen, also connect the Receiving Unit to your display via USB. 3.
  • Page 4 PushShare Receiving Unit User Manual 5. Insert the other ends of the USB and HDMI cables into the PC you wish to project to the screen. 6. Press the button on the PushShare dongle to activate the device and begin projecting onto the screen.

  • Page 5: Table Of Contents

    PushShare Receiving Unit User Manual Contents Introduction ..........................5 Box Contents ........................5 Product Overview/Inputs ....................5 Mirroring from Mobile Devices ....................6 Apple Devices ........................6 Android Devices ......................8 Accessing the Control Panel ...................... 13 Settings .......................... 14 3.1.1 Network Settings ....................

  • Page 6: Introduction

    PushShare Receiving Unit User Manual 1. Introduction PushShare allows users to wirelessly mirror their device to a presentation screen at the push of a button. Improve the productivity of your meetings by allowing participants to effortlessly collaborate, without the need for any technical training or software installation. PushShare has universal compatibility with any user device with a HDMI output and is suitable for all spaces, from small huddle rooms to large conference rooms, providing a versatile and hassle-free solution.

  • Page 7: Mirroring From Mobile Devices

    PushShare Receiving Unit User Manual 2. Mirroring from Mobile Devices 2.1 Apple Devices From your home screen, go to Settings > Wi-Fi and make sure Wi-Fi is turned on. Select the name of the secure Wi-Fi network you want to join. This can be located in the top right-hand corner of the “How to Connect”...
  • Page 8 PushShare Receiving Unit User Manual 5. Tap the “AirPlay” or “Screen Mirroring” option. Tap “MeetingPad-XXXX ” and the display on your device will now be mirrored on screen. Page 7...

  • Page 9: Android Devices

    PushShare Receiving Unit User Manual 2.2 Android Devices From your home screen, go to “Settings > Wireless & Networks > Wi-Fi” and make sure Wi-Fi is turned on. Select the name of the secure Wi-Fi network you want to join. This can be located in the top right-hand corner of the “How to Connect”...
  • Page 10 PushShare Receiving Unit User Manual 4. On your Android mobile, please download or open a “QR Code Scanner” using the Google play store. Page 9...
  • Page 11 PushShare Receiving Unit User Manual 5. Open the “QR Code Scanner” and scan the QR code that is located on the bottom right of the “PushShare” app on the screen. 6. Once the QR Code has been scanned, select “Web”. 7.
  • Page 12 PushShare Receiving Unit User Manual 8. Open the newly downloaded “PushShare” APK from the downloads folder on your Android device. Please install this app. 9. Navigate to the newly installed “PushShare” app and open. 10. Select the device you want to mirror to, listed as “PushShare_XXXX” on the app. Page 11...
  • Page 13 PushShare Receiving Unit User Manual 11. Give permission to “Draw over other apps” once prompted on your Android device. 12. The Android device is now connected to the screen and you can mirror by selecting the “Mirroring” option. NOTE: If you would like to browse the internet on your device while mirroring your Receiving Unit, will need to be connected to your network via Ethernet cable.

  • Page 14: Accessing The Control Panel

    PushShare Receiving Unit User Manual 3. Accessing the Control Panel NOTE: To access the control box for the Receiving Unit, you will need access to a PC or laptop. 1. Connect your Receiving Unit to your presentation screen via HDMI or VGA and power on from the mains.

  • Page 15: Settings

    PushShare Receiving Unit User Manual 6. Once you have logged in, you will be able to change all of the settings of your Receiving Unit. NOTE: It is not recommended to change any settings not outlined below without further guidance from the manufacturer. 3.1 Settings 3.1.1 Network Settings...

  • Page 16: Maintain

    PushShare Receiving Unit User Manual 3.2 Maintain 3.2.1 Factory Reset If you have changed any settings but would like to revert these back to default, click “Reset” to perform a factory reset. 3.2.2 Password Here you can change the control panel password from the default “admin” to anything you like. 3.2.3 Restart This function will sever any connections to your Receiving Unit and restart it back to the “How to...

  • Page 17: Faqs

    PushShare Receiving Unit User Manual 4. FAQs 4.1 I have connected my PushShare dongle to my device via USB but I cannot get my device to mirror to my presentation screen. Please connect both the HDMI and USB cables provided from the PushShare dongle to your device. The HDMI cable must be connected as well as the USB cable to send the video and audio signals.
  • Page 18 PushShare Receiving Unit User Manual 2. Connect the PushShare dongle to the Receiving Unit via USB, and then connect the Receiving Unit to your display via HDMI (and via USB if your display is a touch screen). 3. Once paired (i.e. when the flashing stops), connect the PushShare dongle to the device you want to mirror.
  • Page 19 PushShare Receiving Unit User Manual 4.2 I have connected my PushShare dongle to my device via HDMI but I cannot get my device to mirror to my presentation screen. Please connect both the HDMI and USB cables provided from the PushShare dongle to your device. The USB cable must be connected as well as the HDMI cable to provide power to the PushShare dongle.
  • Page 20 PushShare Receiving Unit User Manual 2. Connect the PushShare dongle to the Receiving Unit via USB, and then connect the Receiving Unit to your display via HDMI (and via USB if your display is a touch screen). 3. Once paired (i.e. when the flashing stops), connect the PushShare dongle to the device you want to mirror.
