Delf Architectural Privacy Installation Instructions

INSTALLATION INSTRUCTIONS
Privacy Assembly and Latch
SUITS 32 TO 45MM THICK DOORS

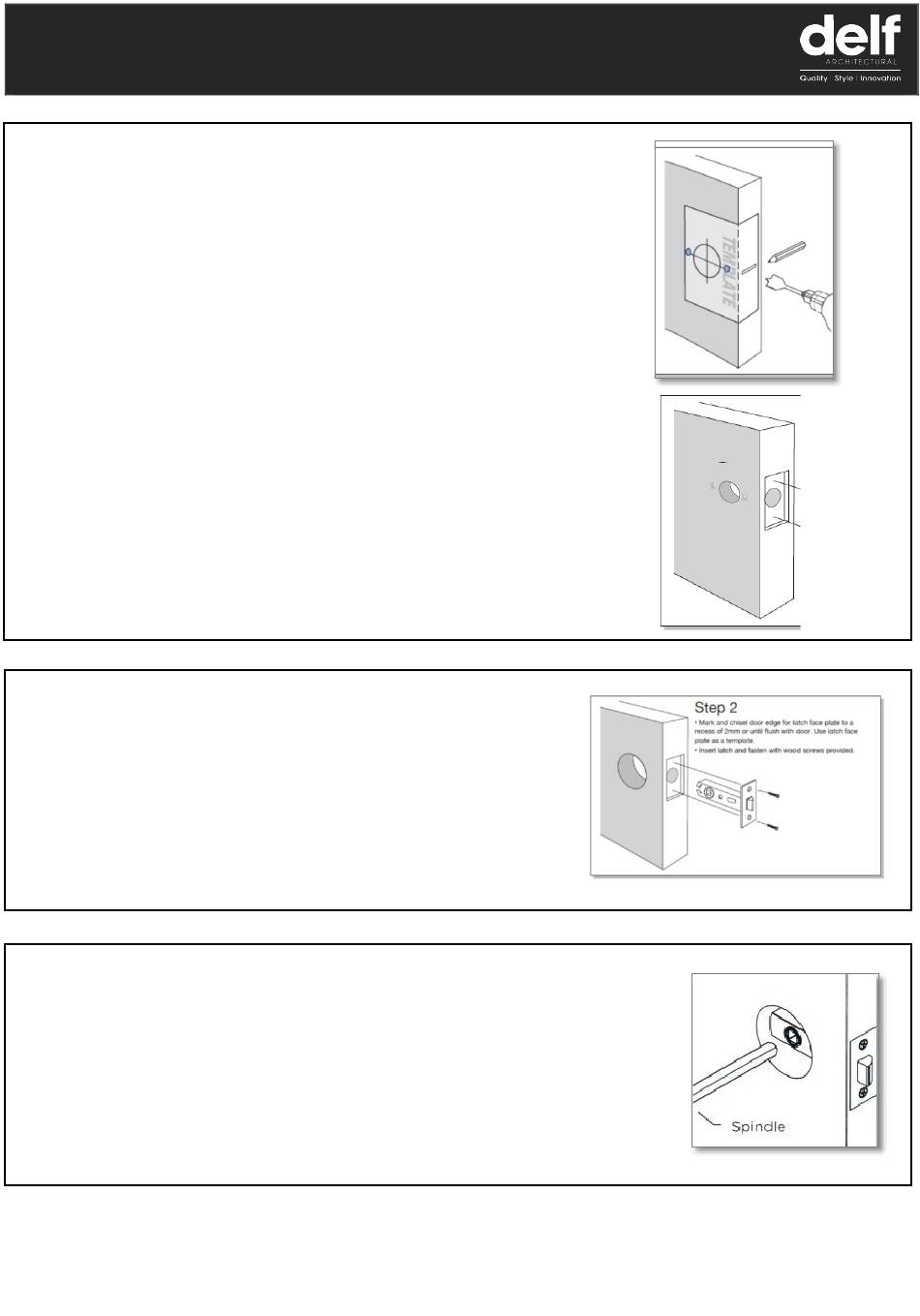

Step 1: Door Preparation

•
Fold the supplied template and position template on door
edge
•
Mark using a pencil centre of 20mm hole on both face
sides of the door
NOTE! This product can be "face fixed" (screwed onto the
door) or "through fixed" (screwed together through the
door). If you are going to "face fix" Privacy set, do not
mark nor drill the 4mm holes.
•
Mark using a pencil position of two 4mm holes each side
of 20mm door face hole – each 4mm hole must be exactly
20mm from centre of larger 20mm hole
•
Mark horizontal centre line of 25mm hole in door edge
using template, then mark centre of door thickness
•
Drill 20mm hole through door face – drill hole from both
sides to prevent splintering
•
If through fixing, drill two 4mm holes through door face -
drill hole from both sides to prevent splintering
•
Drill 25mm hole in to the edge of the door, central to the
door thickness. Ensure this hole is drilled level and
squarely.

Step 2. Latch installation

•
Place faceplate on latch and insert into hole, then mark
around the faceplate. Remove latch.
•
Chisel marked rectangular section to a recess of 3mm or
until latch is flush with door edge.
•
Insert latch into hole, position faceplate over bolt
•
Pre-drill and fasten latch and faceplate to door with wood
screws provided.

Step 3. Spindle installation

•
Slide spindle into square opening in latch
