- Page 1 Installation, operator's and technical manual Patient chair Keep this manual with the patient chair at all times. Installation, Service and annually maintenance must only be performed by authorized Heka dealer. RX Only Heka Dental A/S Catalogue no.: KA-0033-EN Revision 4.2...
-
Page 2: Table Of Contents
Table of Contents Foreword ..........................4 1.1 Introduction ........................... 5 1.2 Indications for Use ........................5 1.3 Contraindications ......................... 5 1.4 Warnings ............................5 1.5 Cautions ............................6 Assembly instructions ....................11 Description of individual components ..............13 Safety instructions ......................14 Position of the operator ..................... - Page 3 Block diagram of the operating system ................. 25 12.6 Circuit diagram ........................26 12.7 Position of components ...................... 27 12.5 Coding options ......................28 Last position function ......................28 13.1 Working with make contacts.................... 28 13.2 Working with break contacts ................... 29 13.3 Running the test program ....................
-
Page 4: Foreword
Together, the patient chair and the unit make the perfect workstation; both convenient and a pleasure to use. Heka Dental A/S has developed this patient chair with the aim of providing optimal functionality and comfort for both patient and dentist. The simple curves and stylish design result from our collaboration with dentists, the engineer and the designer. -
Page 5: Introduction
1.2 Indications for Use The UnicLine Chair is an electrically powered, is a dental chair intended to take part of a operative unit intended to supplying power to and serve as a base for other dental devices and instruments. -
Page 6: Cautions
Damaged components must not be used and must be replaced. CAUTION: Read and understand all accompanying documents for OEM instruments and equipment purchased for use with the UnicLine Mobile before attempting to connect for use. CAUTION: This patient chair maximum load is 268lbs/130Kg. - Page 7 The equipment is operated according to the instructions in the user's manual. It is not permitted: To modify this equipment without the advance written permission of Heka Dental A/S. If this equipment is modified, it must be inspected and tested by qualified and authorized...
- Page 8 Symbols Type B applied part (Standard IEC 60878) Alternating current (Standard IEC 60878) General warning (Standard ISO 7010) See attached documents and/or catalogues Protective earth High voltage Follow "Instructions for use" Separate collection of electrical and electronic equipment pursuant to Directive 2002/96/EEC (WEEE).
- Page 9 Transport and stock conditions Package contents of the UnicLine Chair FIGURE 1 – Chair Carton FIGURE 2 – Chair & Box Containing Upholstery...
- Page 10 FIGURE 3 – Chair with Box Containing Neck Support and Instructions for Use 1. Lift off the main carton from the base/pallet (FIGURE 1) 2. Lift off the box containing the upholstery from the chair and set aside until ready to install (FIGURE 2) 3.
-
Page 11: Assembly Instructions
Assembly instructions On receipt of the chair: Remove the transport packaging from the patient chair. Note: The chair is bolted to the wooden pallet for transport. Position the patient chair on the spot where it will be installed by lifting it as shown below. - Page 12 In the event of faults or defects, contact an authorised Heka Dental dealer. Heka Dental reserves the right to continue to develop the product. Although we strive to keep the documentation up to date, the chair may include options that are not described in this operator's manual.
-
Page 13: Description Of Individual Components

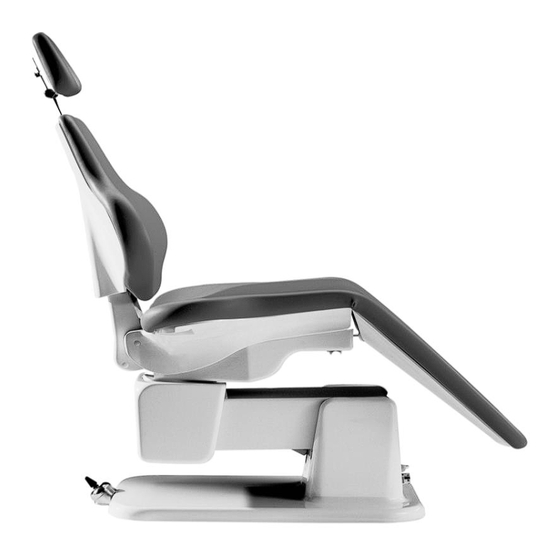

Description of individual components Headrest cover Armrest Backrest cover (Accessory) Seat cover Headrest with handle Backrest plate Handle, seat angle Footrest and Stirrup (Accessory) Joystick Programming button Safety stop, chair lowering (Accessory) -
Page 14: Safety Instructions
Safety instructions The patient chair must only be used under the supervision of dental professionals. This is to protect the operator, patient, and chair against injury and damage. To make sure the patient is in the most ergonomic position during treatment, the operator must maintain a clear view of the chair and patient at all times. -
Page 15: Warning Signals And Emergency Stop
Warning signals and emergency stop The patient chair is equipped with safety systems to protect you against injury and the chair against damage. Program stop When the chair moves to a programmed position, it can be stopped by moving the chair's joystick in one of the four directions. -
Page 16: Safety Stop, Chair Lowering (Accessory)
Safety stop, chair lowering (accessory) If the chair meets an obstruction when it is lowered, it will immediately stop and lift slightly. Starting up the patient chair On/Off The On/Off switch is under the footrest. The chair must be switched off at the end of the working day. -
Page 17: Operating The Armrest
Operating the armrest The armrest on the chair is an accessory (can be added later). The armrest can be swivelled away from the chair to make it easier for the patient to get in and out of the chair. The armrest must be raised approx. 1 cm and can then be moved to the position required for the patient to sit down or leave the chair. -
Page 18: Description Of The Joystick
Description of the joystick The chair can be adjusted manually or automatically to the desired position using the foot joystick.The chair can be equipped with up to 3 joysticks to make adjustment easier. Manual adjustment of the chair If you wish to adjust the chair manually, the joystick must be activated until the desired position is reached. -
Page 19: Automatic Adjustment Of The Chair
Automatic adjustment of the chair The chair has 4 programs that can be programmed as required. If one of the 4 programs is used, the joystick will only need to be activated briefly in the program in question. The chair will automatically move to the programmed position. The 4 programs in the chair are set at the factory. -
Page 20: Maintenance
11. Maintenance The Centers for Disease Control and Prevention (CDC) recommends use of a chemical germicide registered with the EPA as a Hospital Disinfectant and labeled for tuberculocidal activity for surfaces that have been soiled with patient material. In compliance with this guideline, we recommend intermediate-level disinfection between patients using Sani-Cloth AF3. -
Page 21: Cleaning Of External Surface Aluminium Components
Screw out the fuse carrier to remove. Replace the fuse with a new one of the same type and size. Reinsert the fuse carrier and switch on the chair. In the event of faults or defects, contact an authorised Heka Dental dealer. -
Page 22: Technical Part, Only For Authorized Technicians
12. Technical part, only for authorized Technicians. 12.1 The chair has the following physical dimensions: M A X . 8 7 0 m m . M I N . 4 6 0 m m . Technical specifications: 1 8 2 0 m m . 1 9 8 0 m m . -
Page 23: Regulatory Standards Compliance
12.3 Regulatory Standards Compliance Standard: Title: Medical electrical equipment – Part 1: General requirements ANSI/AAMI ES60601- for basic safety and essential performance 1:2005/A2:2010 EN 60601-1-2:2007 Medical electrical equipment - part 1-2, General third edition requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility, Requirements and tests. - Page 24 Backrest: Upon touching obstruction Chair Height: Upon touching obstruction Foot Rest: Upon touching obstruction Emergency Stop: Button on back of chair below backrest 12.5 Annual Maintenance Annual inspection by an authorized UnicLine technician should be performed to ensure optimal function.
-
Page 25: Block Diagram Of The Operating System
12.6 Block diagram of the operating system Counter Back Tæller Ryg Counter Seat Tæller Sæde Condensator Condensator Kondensator Kondensator Main Sæde Back motor Main Seat motor Motor Motor Telescoparm/suction Teleskoparm/ sug Sikkerhedsstop Sæde Sæde Prog. Data Safety stop, Backrest Backrest Seat Seat Program... -
Page 26: Circuit Diagram
12.7 Circuit diagram Back 7cm. 87cm. Seat 100cm. Ground, Base gb-0380 Black Blue None Black Brown None Ground, Foot... -
Page 27: Position Of Components
12.5 Position of components... -
Page 28: Coding Options
If the chair is used with a Unic foot control, the Last Position will work on the chair joystick as well as on the joystick on the foot control. Note: The last position function should only be used with UnicLine units. 13.2 Working with make contacts If the end-stops are make-contacts there should be no INIT jumper on P7, and the LEDs D7, D17, D18 and D19 are normally OFF. -
Page 29: Working With Break Contacts
13.3 Working with break contacts If the end-stops are break-contacts there should be a INIT jumper on P7, and the LEDs D7, D17, D18 and D19 are normally ON. P9, P14 and P15 must normally be closed. If the two pins on P15 are disconnected, it hardware wise prevent the chair from moving. P14 can be used for safety under the chair. -
Page 30: Warranty Terms
Heka Dental dealer/engineer. The installation card must be submitted within 15 days of the installation date. Heka Dental offers an additional spare parts warranty that runs from year 2 up to and including year 5. -
Page 31: Installation/Service Card
This installation/service card is kept in a plastic cover on the inside of the control panel's cover plate. Attention In order to obtain a three-year guarantee, the installation card and the two service cards must be filled out by an authorised service technician and sent to Heka Dental A/S after installation/service of the equipment. -
Page 32: Emc Information
Guidance and manufacturer’s declaration – electromagnetic emissions The UnicLine dental Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the UnicLine dental Chair should assure that it is used in such an environment. Emmissions test... - Page 33 40 % U 40 % U If the user of UnicLine (60 % dip in U (60 % dip in U dental Chair requires IEC 61000-4-11 for 5 cycles for 5 cycles...
- Page 34 Guidance and manufacturer’s declaration – electromagnetic emissions The UnicLine dental Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the UnicLine dental Chair unit should assure that it is used in such an environment. Immunity test...
- Page 35 Portable and mobile RF communications equipment and UnicLine dental Chair. The UnicLine dental Chair is intended for use in an electromagnetic environment in wich radiated RF disturbances are controlled. The customer or the user of UnicLine dental Chair can help prevent...
-
Page 36: Disposal Of The Unit
Disposal of the unit In order to reduce the environmental impact of the product throughout its lifetime, the UnicLine dental Chair is designed to be as safe as possible to manufacture, use and dispose of. Components suitable for recycling should always be sent to a recycling center once all hazardous materials have been removed. - Page 37 Heka Dental A/S Baldershøj 38 · DK-2635 Ishøj · Danmark Telefon +45 43 32 09 90 · Fax +45 43 32 09 90 www.heka-dental.dk...
