Summary of Contents for EasyFold EasyFold

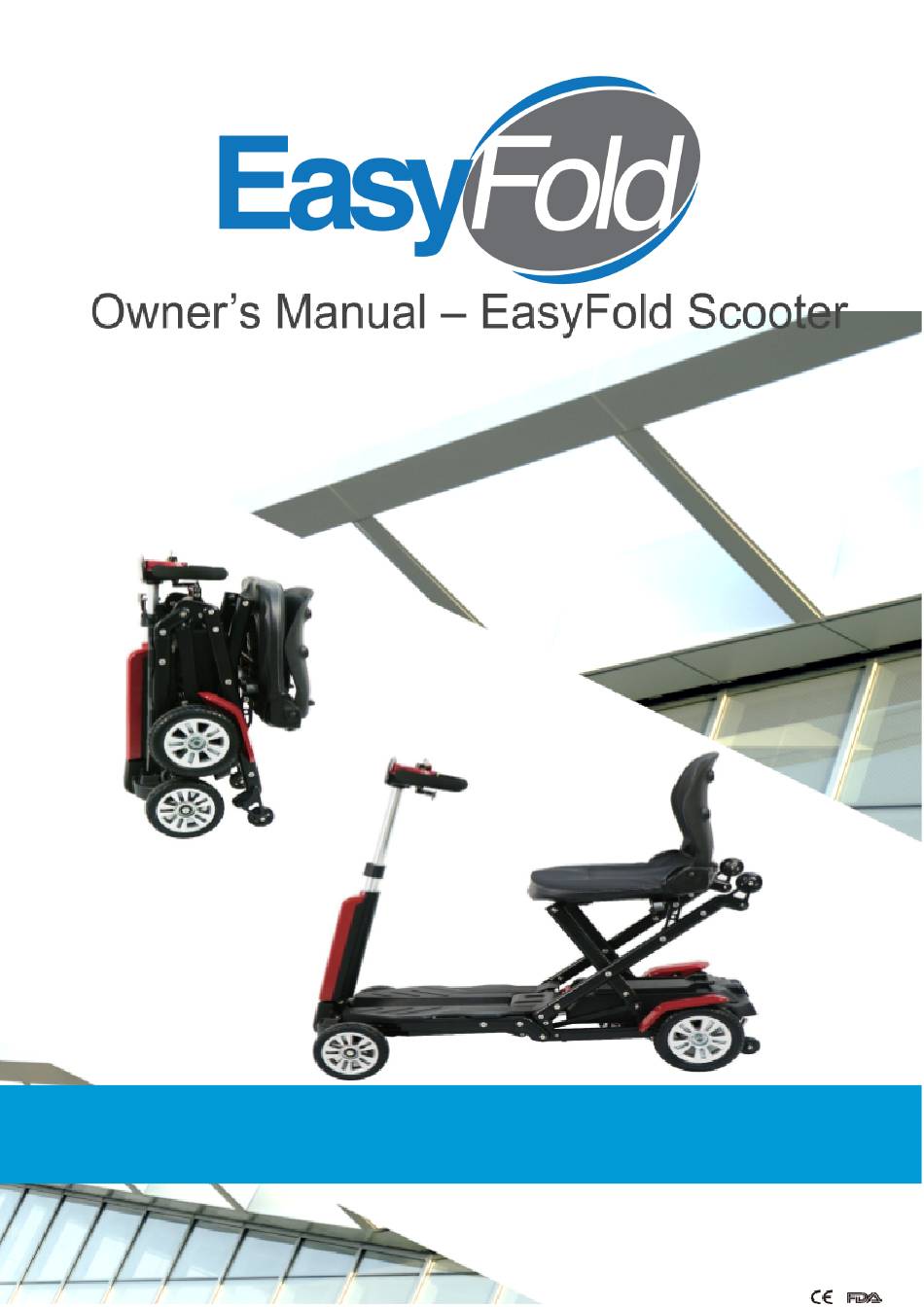

- Page 1 ...
-
Page 2: Specifications
Welcome. Scooter Components Shipping Contents. Specifications. Main Operational Functions. Folding and Unfolding. Battery and Charging. 10-11 Battery Safety. Operation Instructions Troubleshooting and Maintenance 14-15 Warranty Information. -
Page 3: How To Read This Manual
Dear Users, First and foremost, thank you very much for choosing an EasyFold Scooter! You will not be disappointed. With this scooter, you will receive the high quality of customer service that you have come to expect from EasyFold Canada. - Page 4 ...
- Page 5 Upon receipt of your EasyFold Scooter, please open the packaging to ensure the following is included:...
- Page 6 Size (Unfolded) 38.5" × 19.3" × 31.5" (L 980 W 490 H 800 mm) Size (Folded) 15.3" × 19.2" × 28.3" (L 390 W 490 H Front Wheel 720 mm) Rear Wheel 6.5" × 2" (163 x 50 mm) 7.5" × 2.15" (190 x 54 mm) Maximum Speed 3.7 mph (6 kph) Gradient...
-
Page 7: Digital Display
Digital Display CAUTION! A humid environment can significantly affect the operational function of the EasyFold Scooter. Staying in low moisture areas before operating or during operating is strongly recommended. Power Switch The power is on after the key is inserted and turned clockwise. - Page 8 Direction Control Lever Forward and backward control is under Control Lever. 1. Gently hold the delta handle with both hands. 2. EasyFold Scooter will move forward by pulling the lever on the right with fingers. 3. EasyFold Scooter will reverse by pulling the lever on the left with fingers.
- Page 9 Controller Located under the rear cover which transfers the signal from the control panel to the motor, brake and hub. CAUTION! K eep the controller in a low moisture environment and make sure it is dry before operation. Neutral Release Lever Move the lever to switch between freewheel to Drive mode.
- Page 10 Automatic: Automatic Fold A. Ensure EasyFold Scooter is turned ON using the and will not be impacted by any person, or object during the folding process. Hold button of remote control for 2-3 seconds and let go C.Automatic fold will be completed by EasyFold Scooter.
- Page 11 Manual: Manual Fold: A. Ensure EasyFold Scooter is turned off and will not be impacted by any person or object during the folding process. B. Grab the red folding handrail located in the middle of the deck, in between the footrest and the battery.
- Page 12 Fully charge the battery for more than 12 hours. Charge the battery at least once every three months. If your EasyFold Scooter will not be used for a longer period of time, charge the battery until full and remove it from the scooter.
- Page 13 Other chargers can void warranty and cause irreparable damage to the unit. Frequency of Charging The frequency of charging depends on how often you operate your EasyFold Scooter. Charge scooter once battery indicators are on last 25%. I f the scooter is used infrequently (once per week), charge the scooter once per week....
- Page 14 Storage of EasyFold Scooter and Battery If you will not be using the EasyFold Scooter for a longer period of time, follow these instructions for storage: A. Charge battery to 100%.
- Page 15 B.Check that the seat is at the right position and adjust the tiller based on comfort level. C.Turn on power after sitting properly and with your hands on the handlebar. D.Gently push the directional control lever with your right thumb. E.The brake will release automatically, and the EasyFold Scooter will move forward. ...
- Page 16 The fault display shows that the ECU shines continuously in the form of a flash until the fault is eliminated. Example: The number of flashes is “1-9”. Users can try to solve their problem as follows. If the problem persists, please contact EasyFold Canada. Number of Fault description...
- Page 17 C.Increase the charging cycle and time when battery capacity is dropped. D.After going through the above steps without any improvement, a capacity test on battery is required. Though the EasyFold Scooter is designed to be service free, the following must be checked and maintained. Connection of Battery A.
- Page 18 Please notify us immediately if you are having trouble with your EasyFold Scooter, or if the wheelchair has stopped functioning completely. We will provide technical assistance to help you troubleshoot the issue. If we cannot resolve the issue through technical support, we will ship you any required replacement parts still under warranty.
