Summary of Contents for X-POWER X-41ATR TURBO-PRO

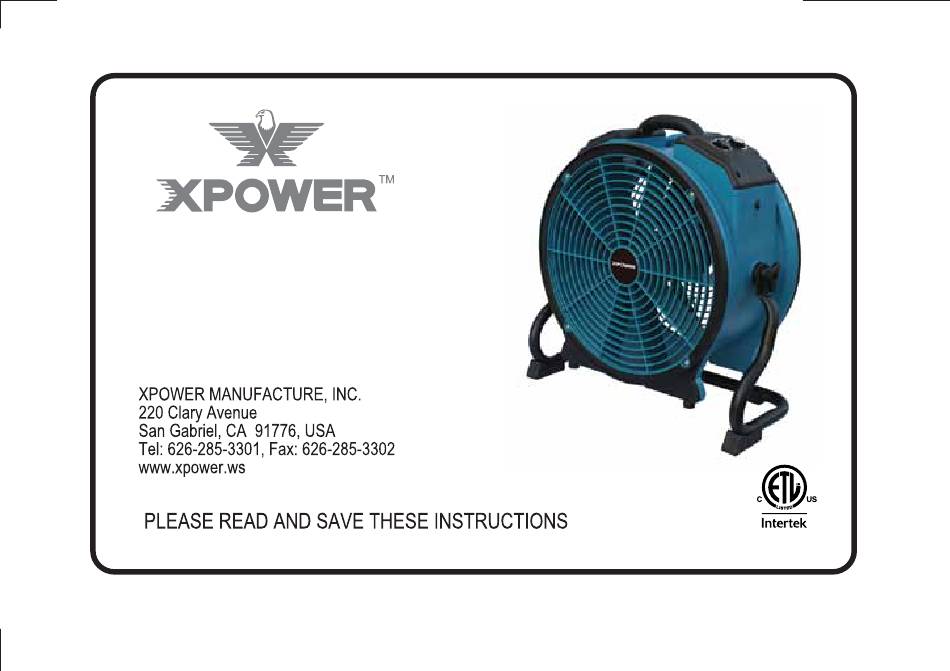

- Page 1 OWNER’S MANUAL X-41ATR TURBO-PRO Professional Axial Fan...
-
Page 2: Table Of Contents
INDEX Introduction ........................ 2 Features ........................ 2, 3 Operation ........................4 Specifications ......................5 Safety Instructions ....................5, 6 Warranty ........................7 Troubleshooting ......................8 Parts List ........................9 Warranty Registration Form ..................10... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the XPOWER X-41ATR Turbo-Pro Axial Fan! XPOWER Manufacture, Inc. with over 25 years of manufacturing experience is bringing a series of products with the most advanced technology in today’s market. Our goal with the 41 series was to bring an axial fan never seen before, through our research and design;... -
Page 4: Features
FEATURES (cont’d) DAISY CHAIN FEATURE: 2 Built-In Outlets for Additional Machines 3-HOUR TIMER: Extremely convenient in busy contractor projects for the professional or a busy afternoon for the handyman, 3 hour timer allows you to setup multiple fans without having to comeback to turn them off. -
Page 5: Operation
OPERATION 1) With the unit unplugged, carefully place the XPOWER unit on stable, flat, and dry surface. 2) Plug the cord into a grounded G.F.C.I. outlet only, the use of a 3-prong to 2-prong adapter is strictly prohibited. 3) Turn on the switch to make sure the fan is operating correctly. 4) All fans in operation must be supervised at all times. -
Page 6: Specifications
SPECIFICATIONS Model X-41ATR Voltage/Frequency 115V/60HZ Airflow 3,600 CFM AMPS 3.2A Power 1/3 HP Weight 24.2 LBS Dimensions (L x W x H) 21.9” x 9.8” x 22.5” Cord 20 ft. / 14AWG Housing Injection-molded ABS Positions 360° Rotational Coverage Timer Yes –... -
Page 7: Warranty
SAFETY INSTRUCTIONS (cont’d) 5. Do not operate any unit with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. 6. It’s automatically operated device. To reduce the risk of injury disconnect from power supply before servicing. - Page 8 XPOWER LIMITED WARRANTY (USA) XPOWER’s Limited Warranty covers the unit (excludes POWER CORD) from defects in material and craftsmanship. The Warranty covers normal use for a term of one year from the original date of purchase including parts, labor and one way shipping. Non-contiguous states must pay for roundtrip freight.
-
Page 9: Troubleshooting
TROUBLESHOOTING SYMPTOM PROBABLE CAUSE ACTION Make sure unit is plugged in Switched Off and switch is turned to ON mode Motor Not Running Check outlet/Change to Power failure another outlet Wiring failure Contact XPOWER for repair Obstructions at the Remove obstruction(s) Scraping Noise From Fan intake or exhaust of fan Fan broken... - Page 10 41 Series Parts List Item No. Parts Name Item No. Parts Name Item No. Parts Name Front air cover Front end cover Housing Outlet cover AC receptacle Circuit breaker Handle cover Power cord Timer knob Speed control knob 11 Switch plate Timer Switch Side cover...
- Page 11 Please complete and mail or fax this form for your product warranty. For multiple units, please list serial numbers on a separate sheet of paper. Address: XPOWER MANUFACTURE, INC, 220 Clary Avenue San Gabriel, CA 91776, USA Tel: (626) 285-3301; Fax: (626) 285-3302 Company Name / Contact Person / Title State / Province Country...
- Page 13 Professional Axial Fan INTRODUCTION Thank you for purchasing the XPOWER X-41ATR Turbo-Pro Axial Fan! XPOWER Manufacture, Inc. with over 25 years of manufacturing experience is bringing a series of products with the most advanced technology in today’s market. Our goal with the 41 series was to bring an axial fan never seen before, through our research and design;...
- Page 14 INDEX Introduction ........................ 2 Features ........................ 2, 3 Operation ........................4 Specifications ......................5 Safety Instructions ....................5, 6 Warranty ........................7 Troubleshooting ......................8 Parts List ........................9 Warranty Registration Form ..................10 FEATURES (cont’d) DAISY CHAIN FEATURE: 2 Built-In Outlets for Additional Machines 3-HOUR TIMER: Extremely convenient in busy contractor projects for the professional or a busy afternoon for the handyman, 3 hour timer allows you to setup multiple fans without having to comeback to...
- Page 15 OPERATION 1) With the unit unplugged, carefully place the XPOWER unit on stable, flat, and dry surface. 2) Plug the cord into a grounded G.F.C.I. outlet only, the use of a 3-prong to 2-prong adapter is strictly prohibited. 3) Turn on the switch to make sure the fan is operating correctly. 4) All fans in operation must be supervised at all times.
- Page 16 SPECIFICATIONS Model X-41ATR Voltage/Frequency 115V/60HZ Airflow 3,600 CFM AMPS 3.2A Power 1/3 HP Weight 24.2 LBS Dimensions (L x W x H) 21.9” x 9.8” x 22.5” Cord 20 ft. / 14AWG Housing Injection-molded ABS Positions 360° Rotational Coverage Timer Yes –...
- Page 17 TROUBLESHOOTING SYMPTOM PROBABLE CAUSE ACTION Make sure unit is plugged in Switched Off and switch is turned to ON mode Motor Not Running Check outlet/Change to Power failure another outlet Wiring failure Contact XPOWER for repair Obstructions at the Remove obstruction(s) Scraping Noise From Fan intake or exhaust of fan Fan broken...
- Page 18 41 Series Parts List Item No. Parts Name Item No. Parts Name Item No. Parts Name Front air cover Front end cover Housing Outlet cover AC receptacle Circuit breaker Handle cover Power cord Timer knob Speed control knob 11 Switch plate Timer Switch Side cover...
