- Page 1 EX-1 Super Fishing Drone User Manual V1 www.cutacopteraustralia.com.au Copyright © 2020 | UDF Enterprises Pty Ltd www.cutacopteraustralia.com.au...
-
Page 2: Table Of Contents
Thank you very much for purchasing the Cuta-Copter EX-1 fishing drone and we hope you have hours of enjoyment. This manual is subject to update and change without notice Contents Disclaimer Liability Safety Precautions Features Components List Download The App... -
Page 3: Disclaimer
2. The user undertakes to only operate the craft when they are competent in the operation of the craft. The user should arrange appropriate insurance if required. 3. Only approved technicians are authorized to service the Cuta-Copter. 4. Make sure you know how to calibrate the GPS. Make sure that you understand the meanings of the various warning LED colors. - Page 4 Sale terms and conditions Please consult the terms of sale from your dealer. Consult the CUTA-COPTER terms and conditions. Personal responsibility to drone maintenance As a drone owner it is your personal responsibility to maintain the drone for safe operation. Internal electronics calibration and compass need to be checked regularly.
-
Page 5: Safety Precautions
Safety Precautions The Cuta Copter EX-1 can be extremely dangerous and could cause personal injury, be careful when flying and operating it. Please follow the contents of this manual and ensure you comply with CASA regulations when flying. Always fly the craft above 20metres to activate its safety functions. -
Page 6: Features
New servo release – a new water-proof servo is standard. Landing on water – the EX-1 can land and take off from water. Rough water will impact the ability of the craft to take-off, as waves will interfere with the prop lift. Extreme care and after salt cleaning are required with salt exposure. - Page 7 Follow-Me mode - In this mode, the drone will follow the location of the remote\phone. Boat Landing mode – this feature allows the drone to land (RTL) at the location of the pilot and not at the take-off point. This function is useful when using the drone on a boat which has drifted away from the original take-off co-ordinates.
-
Page 8: Components List

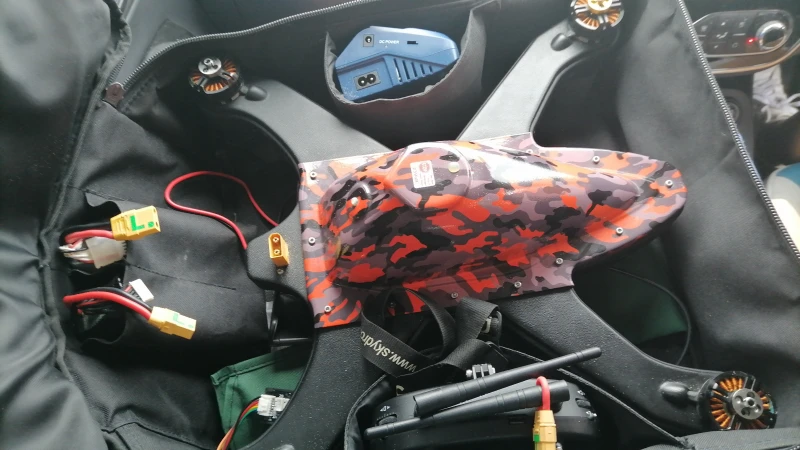

Component List Content - What’s in the box EX-1 Drone with camera and bait release servo installed Battery EX-1 Remote Controller with phone holder Battery balance charger and cables Carbon fibre quick release props (silver and gold HUBS) – Prop Bag... -
Page 9: Download The App
Download The App Download the Skydroid Tower App from the Playstore – Android Only Activate verbal warnings To enable verbal warning - go to the Android device SETTINGS and click enable speech output and check the devices volume. Once the APP is downloaded open the APP and ensure the bottom left setting is set to T10/T12 – The craft will not respond in settings (M11 or M12/L) View Video 1 - Installing the Skydroid Tower APP Battery Charger Procedure... - Page 10 Battery Safety and Care • DO NOT leave batteries in full charge state when not in use • DO NOT leave on low charge when not in use • NEVER over charge or over discharge a LiPo battery • ALWAYS store batteries at 3.8V per cell •...
-
Page 11: Voltmeter Calibration
Voltmeter Calibration Check the voltage reading on the app to the actual voltage of the battery by using the BX100 battery Voltage/Cell monitor. Connect the BX100 to the battery that is connected to the drone. To check and set the voltmeter via the APP, go to App menu at the top left and select parameters - Scroll down and select parameter: BATT_VOLT_MULT If the voltage on your phone is reading low compared to the actual battery voltage, then increase the BATT_VOLT_ MULT value by 0.01 at a time until the Phone/APP reading matches the reading using the BX100 meter on the... - Page 12 Remote Controller Switch ‘E’ Flying mode switch Switch ‘F’ – No function Throttle/Direction Aileron/Lift Lanyard connection Battery level indicator ‘A’ Return to launch ‘B’ Bait release Power On/Off Switch ‘E’ Flying mode switch Remote battery charge point USB for Android Switch ‘F’...
-
Page 13: Modes And Functions
ALL the way forward whilst flying out a bait, as the drone can achieve a high speed that may over-wind your reel. Practice flying so that you can become familiar with the EX-1 flying speed. In POS HOLD mode the drone will drift slightly after stick centering. - Page 14 Once the battery drops below this set level, the drone will not take-off. The light will flash orange and NOT turn GREEN. LOW BATTERY TO LAUNCH - The EX-1 is programmed with a LOW battery return to launch. The pre-set low voltage level is: 1.
-
Page 15: First Flight
• Attach phone to mount and connect the cable to radio and phone. • Place the EX-1 drone on a level surface. • Insert the YELLOW ‘Quick Switch’ bridge switch into the yellow plug at the rear of the drone. -
Page 16: Compass Calibration
After arming with the phone and the motors are spinning, you can then just push the left stick up to launch the drone. View Video 5 - Arming the EX-1 Motors and Takeoff Copyright © 2020 | UDF Enterprises Pty Ltd... -
Page 17: Landing
LANDING The craft will descend when the throttle is below half • Always slow the drone down to eye level before landing the craft gently – On touch down always hold the left stick full down and hold it down until the motors stop and keep the left stick held down for 5 seconds after motors de-arm. -
Page 18: Cuta Copter Ex-1 - Dropping Baits Flight Checklist
Read the manual and watch the instructional videos fully • Complete the Cuta Copter EX-1 Quiz and ensure you have achieved a result of 100% • If it is possible, use a drone flight simulator to get some virtual flight time before flying if you have never flown a drone before or buy a cheap $100 drone and practice, practice, practice. - Page 19 First Flight Checklist • Ensure you have downloaded the Skydroid Tower App and setup the App as per the manual and video directions • Check the remote controller and drone batteries are fully charged • Make sure the wind is low •...
- Page 20 Do not attempt to carry more than half a kilo while you are learning. The Cuta Copter EX-1 battery can carry 700gms baits to 200metres four times on average and dependent upon wind conditions.
- Page 21 Dropping the Bait • Always try to release the sticks slowly when approaching the drop zone and come to a full stop and then press button “B” (Bait release) to release the bait. Practice this function over land before flying a bait out. Once you have dropped the bait press the “A”...
-
Page 22: Maintenance
We do not recommend intentionally exposing your craft to saltwater, but this is acceptable if you need to if you follow the after-salt water exposure steps carefully. The EX-1 has 3 watertight chambers. 1. Top main electronics bay 2. Lower battery bay 3. - Page 23 Corrosion-X. Treat external battery terminal with anti-corrosion fluid. The EX-1 has closed cell flotation installed in the centre section of the drone. This is the 2nd level of flotation to protect the drone in the case that any of the chambers has a water breach. Make sure that the fresh water flushes this inner core as well.
-
Page 24: Ex-1 Specifications
EX-1 SPECIFICATIONS SPEC 4S MODEL 6S MODEL • Loiter Mode • Loiter Mode • Position Hold • Position hold • Altitude Hold • Altitude Hold • Guided Mode (via app) • Guided Mode (via app) • Auto-Land– SIGNAL • RTL – SIGNAL •... - Page 25 Satellites, Distance, Voltage, Satellites, Distance, Voltage, Data display on Android Device Speed, Attitude, Vibration etc Speed, Attitude, Vibration etc Remote batteries Re-chargeable 18560 x 2 18560 x 2 Package Backpack included Backpack included Charger 100W 100W 2.4ghz Dual RF, 10 Channel Radio 2.4ghz Dual RF, 10 Channel Phone APP...
- Page 26 www.cutacopteraustralia.com.au PO Box 1076 Canning Vale DC PERTH WA 6970 sales@cutacopteraustralia.com.au...
Need help?
Do you have a question about the EX-1 and is the answer not in the manual?
Questions and answers
Hi my EX1 says Thrust loss rotor 4..what does that meen please and how can I fix it.
"Thrust loss rotor 4" on the CUTA-COPTER EX-1 indicates that rotor 4 is not producing enough thrust, which can lead to unstable flight or crash. This may be caused by a damaged propeller, motor failure, ESC (Electronic Speed Controller) issue, or a wiring/connectivity problem.
To fix it:
1. Inspect rotor 4’s propeller for damage and replace if needed.
2. Check motor 4 for proper operation.
3. Verify the ESC for rotor 4 is working correctly.
4. Ensure all connections and wires to rotor 4 are secure.
A full pre-flight check should be done before flying again.
