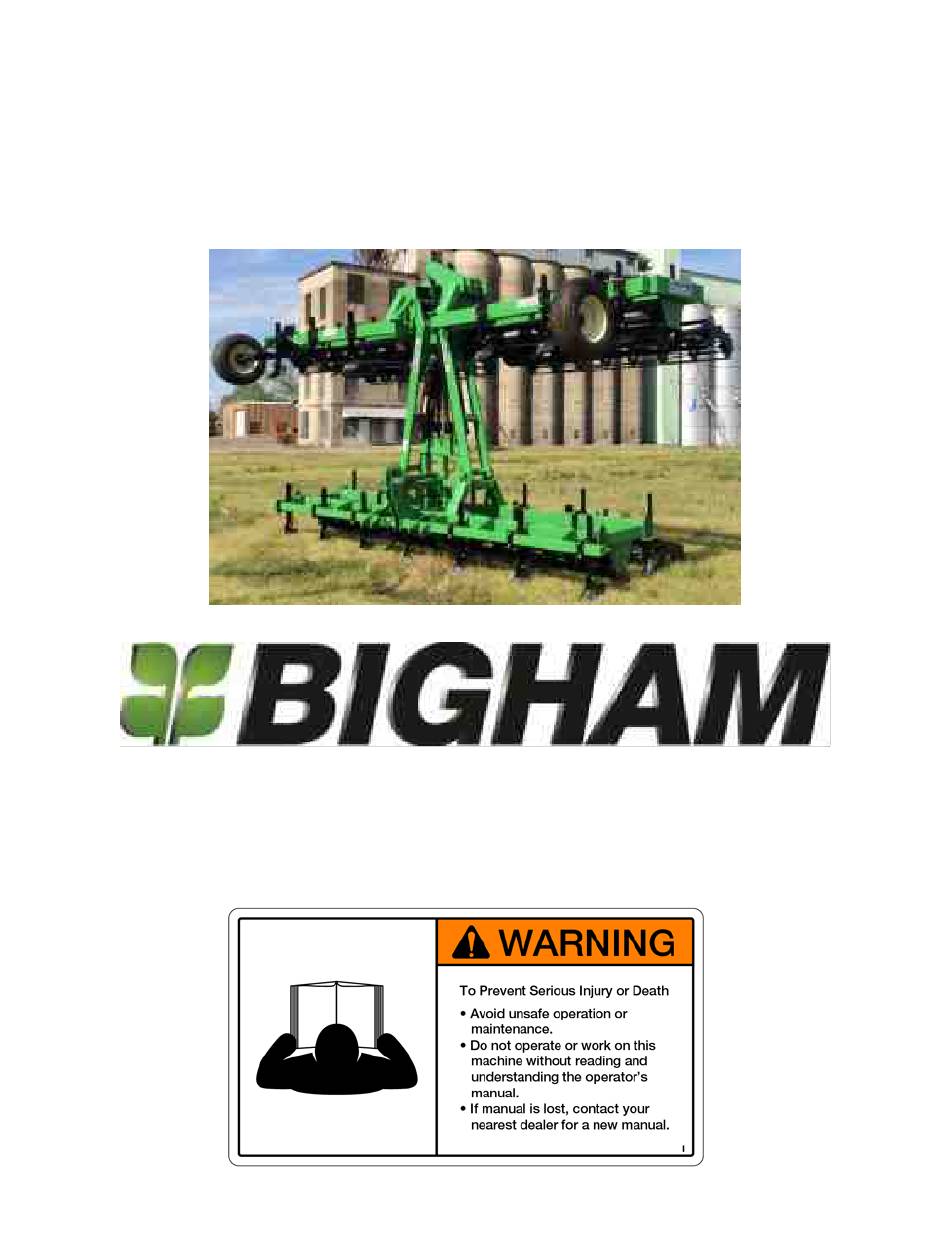

- Page 1 OWNER’S MANUAL Stack Fold Hipper HC40SF, HT40SF, HR40SF – 16 row 30 / 12 row 40 / 12 row 38 HC36SF, HT36SF, HR36SF – 12 row 36 HC32SF, HT32SF, HR32SF – 12 row 30 1220 E Durkee Street, Carlisle, AR 72024...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARRANTY…………………………………………………………………………………….………. INTRODUCTION……………………………………………………………………………………..… SAFETY………………………………………………………………………………………………..… SAFETY SIGNAL WORDS……………………………………………………………………………. GENERAL SAFETY GUIDELINES…………………………………………………………………..SAFETY SIGN LOCATIONS………………………………………………………………………..SAFETY DECAL CARE……………………………………………………………………………...… TIRE SAFETY…………………………………………………………………………………………… LIGHTING AND MARKING………………………………………………………………………….… PERSONAL PROTECTIVE EQUIPMENT…………………………………………………………… BEFORE OPERATION………………………………………………………………………………… DURING OPERATION…………………………………………………………………………………. HIGHWAY AND TRANSPORTATION OPERATIONS……………………………………………... FOLLOWING OPERATION……………………………………………………………………………. UNIT FEATURE ADJUSTMENTS……………………………………………………………………. FRAME HITCH COMPONENTS……………………………………………………………………… WING FRAME ASSEMBLY COMPONENTS………………………………………………………... -
Page 3: Warranty
The Warranty on your machine is included with this manual. Your dealer will review both this manual and the warranty with you when you take delivery of your machine. Manufactured By Bigham Brothers Inc. – Carlisle, AR Model # ________________________ Serial # _________________________... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing a Bigham Hipper tillage implement. We hope you will get many years of productive use from it. The Hipper can simultaneously prepare seed beds, shape furrows, and form drainage or irrigation in a single pass. -
Page 5: Safety
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. NOTICE is used to address safety practices not related to personal safety. Bigham Ag Stack Fold Hipper Page | 5... -
Page 6: General Safety Guidelines
Stay clear of any moving parts, such as shafts, couplings and universal joints. Do not allow anyone to ride on any part of the equipment for any reason. Assure that all bystanders are at a safe distance before operating or maintaining this equipment. Bigham Ag Stack Fold Hipper Page | 6... -
Page 7: Safety Sign Locations
SAFETY SIGN LOCATIONS Safety Sign location is shown below. Front of Toolbar, End of LH Wing Front of Toolbar, LH Hinge Bigham Ag Stack Fold Hipper Page | 7... - Page 8 3-Point Hitch Front of Toolbar, RH Hinge Bigham Ag Stack Fold Hipper Page | 8...
- Page 9 Rear of Toolbar, Center Frame REMEMBER: If Safety Signs have been damaged, removed, become illegible or parts replaced without decals, new decals must be applied. New decals are available from your authorized distributor or factory. Bigham Ag Stack Fold Hipper Page | 9...
-
Page 10: Safety Decal Care
Always order and install tires and wheels with appropriate capacity to meet or exceed the anticipated weight to be placed on the equipment. • Tire changing can be dangerous and should be performed by trained personnel using the correct tools and equipment. Bigham Ag Stack Fold Hipper Page | 10... -
Page 11: Lighting And Marking
Lighting kits ship standard with each unit from the Bigham factory. • An SMV emblem ships standard on each unit from the Bigham factory. Always ensure the emblem is in place when transporting on public roadways. Keep it clean and bright. -
Page 12: Personal Protective Equipment
Do not use the unit until you are sure that the area is clear, especially children and animals. • Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar with your new equipment. Bigham Ag Stack Fold Hipper Page | 12... -
Page 13: During Operation
This is particularly important with higher noise levels and quiet cabs, as you may not hear people shouting. • NO PASSENGERS ALLOWED - Do not carry passengers anywhere on, or in, the tractor or equipment, except as required for operation. Bigham Ag Stack Fold Hipper Page | 13... -
Page 14: Highway And Transportation Operations
When driving the tractor and equipment on the road or highway under 40 kph (20 mph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem. • Plan your route to avoid heavy traffic. Bigham Ag Stack Fold Hipper Page | 14... -
Page 15: Following Operation
• Do not permit children to play on or around the stored unit. • Make sure all parked machines are on a hard, level surface and engage all safety devices. Bigham Ag Stack Fold Hipper Page | 15... - Page 16 Always use a safety support and block the wheels. Never use a jack to support the equipment. • Always use the proper tools or equipment for the job at hand. • Use extreme caution when making adjustments. Bigham Ag Stack Fold Hipper Page | 16...
- Page 17 Cleaning solvents should be used with care. Petroleum based solvents are flammable and present a fire hazard. Don’t use gasoline. All solvents must be used with adequate ventilation and their vapors should not be inhaled. Bigham Ag Stack Fold Hipper Page | 17...
- Page 18 Stack Lock Adjustment The BIGHAM Ag Stack Fold Hipper Implement is equipped with the BIGHAM STACK LOCK feature. This feature helps lock the two lift arms together when the Implement is in the Stacked (folded) position. To ensure that this Stack Lock Feature is always engaged, there has been some adjustment built into the assembly.
-
Page 19: Unit Feature Adjustments
Setting the Furrowing Plow Depth Each Hipper Implement comes from BIGHAM with a specific set up on the furrowing plow depth. A general good initial setting is with the Hipper Implement drum, chopper, or tumbler basket 4” to 4.5” from a good flat surface when the furrow plows are evenly touching the same flat surface. - Page 20 If less down-pressure is desired, loosen the spring bolt by turning the nut counter- clockwise. When decreasing the pressure, do NOT loosen the nut past the nylon insert in the nut. Figure 5 Bigham Ag Stack Fold Hipper Page | 20...
- Page 21 Wing Leveling Adjustment Each BIGHAM Stack Fold Hipper Implement is equipped with heavy duty leveling bars that hold the wings level with the rest of the Hipper Implement frame. These leveling bars have a built in adjustment point to ensure that the Hipper Implement both stays engaged with the ground correctly, and folds without interference.
- Page 22 Figure 8. Horizontal adjustment of the wheel assembly is done by adjusting the axle in or out, shown in Figure 9. After final adjustments, make sure to tighten the jam nut of the turn buckle or the axle keeper bolts as necessary. Figure 8 Figure 9 Bigham Ag Stack Fold Hipper Page | 22...
- Page 23 To have the best equipment possible, only Genuine BIGHAM Parts should be ordered. To fulfill all parts needs by both the Dealer and the Farmer, BIGHAM has a very capable and friendly parts department at both our Carlisle, AR and Lubbock, TX locations.
-
Page 24: Frame Hitch Components
Cat 3 Top Link Hitch Pin H617-191 Cat 4 Top Link Hitch Pin H617-196 Cat 3/4 Bottom Hitch Pin H312-404 Cat 4 Bottom Hitch Pin Spacer Sleeve H230-123 7/16" Lynch Pin H617-104 5/16" Lynch Pin Bigham Ag Stack Fold Hipper Page | 24... -
Page 25: Wing Frame Assembly Components
602-0816Z 1/2" Gr. 5 Zinc Plated Bolt X 4" Long 613-0800Z 1/2" Gr. 5 Zinc Plated Nylock Nut 616-1802Z 1 1/2" Zinc Plated Flat Washer 617-056 1/4" Roll Pin X 2" Long Bigham Ag Stack Fold Hipper Page | 25... -
Page 26: Leveling Bar Components
Leveling Bar Tube Weldment, H36SF H703-548 Leveling Bar Tube Weldment, H32SF Complete Leveling Bar Assembly Part Numbers: (includes all items above) H703-405 Leveling Bar Assembly, H40SF H703-365 Leveling Bar Assembly, H36SF H703-549 Leveling Bar Assembly, H32SF Bigham Ag Stack Fold Hipper Page | 26... -
Page 27: Lift Arm Assemblies
H703-453 Lift Arm Weldment, H32SF Bronze Bushing: 624-041 2-1/2” ID x 2-5/8” OD Bronze Bushing x 2-1/2” Length Note: Bronze bushings only for 2017, 2018, and early 2019 model Stack Fold Hippers. Bigham Ag Stack Fold Hipper Page | 27... -
Page 28: Stack Lock Assemblies
Stack Lock Assemblies To assist with the stability of the BIGHAM Stack Fold Hipper Implement during folded transportation, BIGHAM has integrated the STACK LOCK feature into each unit. This feature locks the two lift arms together when the Hipper Implement is folded into the stacked position. The components needed for these assemblies are listed below. - Page 29 Male Stack Lock Engagement Weldment H310-518 H40SF Stack Lock Shim Plate 602-0606Z 3/8" Gr. 5 Zinc Plated Bolt X 1 1/2" Long 613-0600Z 3/8" Gr. 5 Zinc Plated Nylock Nut 616-0600Z 3/8" Zinc Plated Flat Washer Bigham Ag Stack Fold Hipper Page | 29...
-
Page 30: Rear Basket Assemblies
1/2" Gr. 5 Zinc Plated Bolt x 2" Long 613-0800Z 1/2" Zinc Plated Nylock Nut H312-001 HC Tumbler Bolt Bushing Table 8 – Rear Baskets, Round Bar Center Wing HC40SF H785-230 (106.5”) H785-235 (119.5”) HC36SF H785-231 (103.0”) H785-231 (103.5”) HC32SF H785-232 (84.5”) H785-232 (84.5”) - Page 31 Table 11 – Rear Tumbler Assemblies, Double Center Wing HC40SF H785-200 H785-205 HC36SF H785-201 H785-201 HC32SF H785-202 H785-202 Rear Tumbler Assemblies, Flat with 12” Drum and Scraper Table 12 – Rear Tumbler Assemblies, Flat with 12” Drum and Scraper (Complete)
- Page 32 A-Frame, 12” Drum See Table 15 Scraper Assembly, 12” 622-084 Bearing, Flange 1.5” 2-Bolt Table 13 – 12” Roller Drums Center Wing HC40SF H688-106 (106.0”) H688-119 (119.0”) HC36SF H688-102 (102.5”) H688-102 (102.5”) HC32SF Table 14 – A-Frame, 12” Drum Center...
- Page 33 Nut, Jam 1/2” Fine Thread 301-109 Threaded Rod, 1/2” Fine Thread L15662 Cotter Pin, 1/8” x 1.0” Table 17 – Scraper Mount Angles Center Wing HC40SF H686-708 H686-718 HC36SF H686-717 H686-717 Table 18 – Scraper Blade, 12” Drum Center Wing...
-
Page 34: Linkage Arm Assembly
Pin, Clevis CAT2 Top Link 602-0818Z 1/2" Gr. 5 Zinc Plated Bolt X 4 1/2" Long 613-0800Z 1/2" Zinc Plated Nylock Nut H685-302 40 Deg. Linkage Arm Bracket H309-001 Tumbler Mount Plate Bigham Ag Stack Fold Hipper Page | 34... -
Page 35: Chopper Basket Assemblies
5/8" Zinc Plated Nylock Nut 602-1010Z 5/8" Zinc Plated Bolt X 2 1/2" Long 616-100Z 5/8" Zinc Plated Flat Washer Table 21 - Chopper Blades Center Wing HC40SF H287-109 (106.0”) H287-121 (118.0”) HC36SF H287-100 (100.0”) H287-100 (100.0”) HC32SF H287-085 (82.0”) H287-085 (82.0”) -
Page 36: Tumbler Basket Assemblies
5/8" Zinc Plated Flat Washer 613-1000Z 5/8" Zinc Plated Nylock Nut Table 24 - Tumbler Basket Weldments Center Wing HT40SF H684-104 (104.0”) H684-116 (116.0”) HT36SF H684-100 (100.0”) H684-100 (100.0”) HT32SF H684-082 (82.0”) H684-082 (82.0”) Bigham Ag Stack Fold Hipper Page | 36... -
Page 37: Roller Drum Assemblies
Center Roller Drum Assembly (108") See Table 26 24” Drum Weldment Table 26 – 24” Drum Weldments Center Wing HR40SF H686-108 (108.0”) H686-120 (120.0”) HR36SF H686-102 (102.0”) H686-102 (102.0”) HR32SF H686-084 (84.0”) H686-084 (84.0”) Bigham Ag Stack Fold Hipper Page | 37... -
Page 38: Roller Scraper Assemblies
Wing HR40SF H686-759 H686-759 HR36SF H686-750 H686-750 HR32SF H686-751 H686-751 Table 29 – Scraper Blades Center Wing HR40SF H901-52240CS (106.0”) H901-52240WS (118.0”) HR36SF H901-52236S (100.0”) H901-52236S (100.0”) HR32SF H901-52232CS (82.0”) H901-52232CS (82.0”) Bigham Ag Stack Fold Hipper Page | 38... -
Page 39: Furrow Assemblies
HX Furrow Assem., 11" Plow, 7" Bar, 1" X 3" Shank Varies H806-743 Cast Clamp for 7X4 Bar & 1X3 Shank 705-300F Shank Assembly, 1X3X30 W/ Foot Piece H638-211 11" Furrowing Plow Bigham Ag Stack Fold Hipper Page | 39... - Page 40 Foot Pieces Table 31 - Foot Piece Assemblies Item Part Number Description 636-503 Foot Piece for 1" Shank H450-3376 Foot Piece for 5/8" or 3/4" Shank Bigham Ag Stack Fold Hipper Page | 40...
- Page 41 Body, Clamp 4" 1X3 Shank 628-400 Cap, 4" Bar 606-1006Z 5/8" Zinc Plated Square Head Set Screw X 1 1/2" Long 601-1424Z 7/8" Zinc Plated Bolt x 6" Long 611-1401Z 7/8" Zinc Plated Hex Nut Bigham Ag Stack Fold Hipper Page | 41...
-
Page 42: Gauge Wheel Assemblies
BIGHAM have designed a new style gauge wheel to meet the growing needs of our Customers. The new BIGHAM Ag Universal Gauge Wheel is easily adaptable to fit 7” x 7” tubing, 7” x 4” tubing, 4” x 7” tubing, and 4” x 4”... - Page 43 7” X 4” TUBING CONFIGURATION BIGHAM Universal Gauge Wheel Assembly (7" X 4" Tube Configuration) P/N: 855-444 Item Part Number Description Quantity per Assembly H705-000 Universal Gauge Wheel Mount Bracket H705-001 Universal Gauge Wheel Arm Weldment 627-161 Gauge Wheel Hub Assembly W/ 2" Spindle 627-567 Wheel &...
- Page 44 Keep body and body extremities away from areas such as pivot points and hydraulic cylinders. Always secure equipment pivot points to assure they will not move when working on or near them. Bigham Ag Stack Fold Hipper Page | 44...
-
Page 45: Hydraulic Assemblies
HYDRAULIC HOSE ASSEMBLIES Each BIGHAM Ag implement has a specifically designed hydraulic hose system. These systems are designed to allow the specific implements to operate at the optimum level. Below is the breakdown of the hydraulic layout for the Stack Fold Hipper... - Page 46 As needed. ASSISTANCE If you have questions not answered in this manual, or require additional copies, or the manual is damaged, please contact your dealer or: Bigham Ag Customer Service Department 1220 E Durkee Street, Carlisle, AR 72024 Phone: 870-552-7517...
