Summary of Contents for Blaupunkt VW / AUDI 7 607 545 550

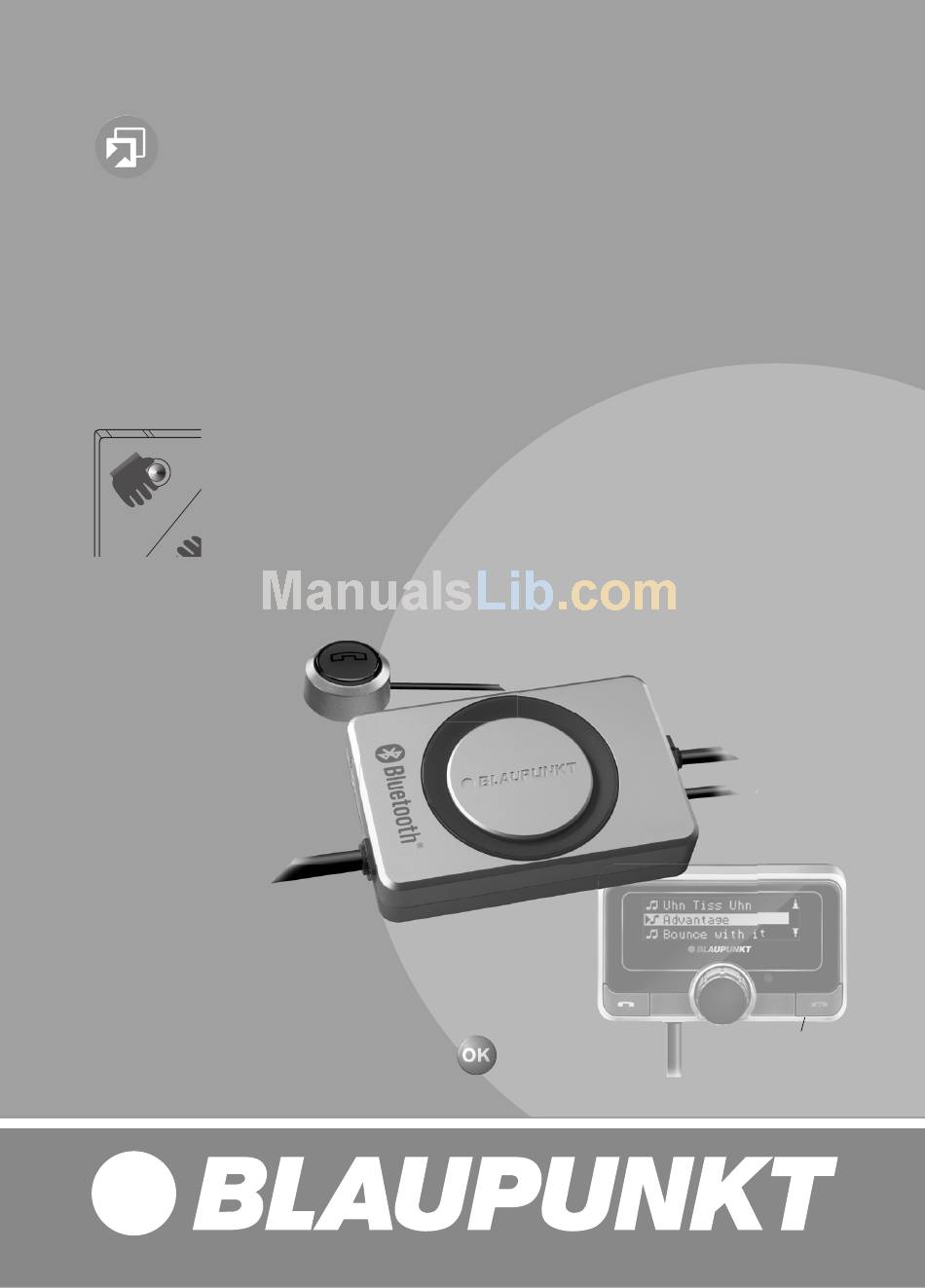

- Page 1 Zubehör / Accessories Bluetooth-/USB-Interface VW / Audi 7 607 545 550 mit / with PTT mit / with OLED-Display (optional) 7 607 548 500 optional www.blaupunkt.com...
- Page 2 Connection / Anschluss Fakra GROUND Pin9 (Fakra) Pin 2 (ISO) Fakra AK 7 607 001 539 Phone Mute PTT (Push to talk) - key Microphone GROUND Radio Mute Pin9 (Fakra) AK 7 607 001 543 Phone Mute OLED (not included) oder/or oder/or USB socket...
- Page 3 Connection / Anschluss GROUND Pin 2 (ISO) ISO Audi GROUND Pin 9 Pin 9 PTT (Push to talk) - key Microphone Microphone 7 607 001 540 USB socket (Memory stick not included) OLED (not included) oder/or USB socket (Memory stick not included) OLED (not included) PTT (Push to talk) - key...
- Page 4 Dimensions (inch) Abmessungen (mm) Weight Gewicht For / Für VW, Audi, Seat, Skoda, Ford Radios see / siehe www.blaupunkt.com Bluetooth USB Interface VW Compatibility list of OEM devices Bluetooth-USB-Interface-VW Kompatibilitätsliste Erstausrüstergeräte 1.2 (compatible with 1.x) HFP, SPP, GAP, SDAP. AADP (A2DP), AVRCP e1, CE, FCC, Bluetooth Version 2.0 (full speed), (compatible with 1.x)
-
Page 5: Table Of Contents
Connection ... 2 Technical Data ... 4 Safety notes ... 25 Declaration of conformity ... 25 Switch-on ... 25 Switch-off ... 25 Displays and controls ... 26 Registering (pairing) your cell phone with the interface ... 26 Connecting two BT devices with the interface at the same time ... -
Page 6: Safety Notes
Please use the return and collection systems avail- able to dispose of the product. Declaration of conformity The Blaupunkt GmbH declares that the Bluetooth/ USB Interface device complies with the basic re- quirements and the other relevant regulations of the directive 1999/5/EG. -
Page 7: Displays And Controls
German) or ID3 tags from MP3 fi les to be dis- played. After initial switch-on After switch-on, the OLED display greets you with a Blaupunkt lettering which gives way for a smaller lettering after a few seconds. Registering (pairing) your cell phone with the interface Use your cell phone to search for Bluetooth de- vices (see the instructions of the cell phone ->... -
Page 8: Connecting Two Bt Devices With The Interface At The Same Time
Connecting two BT devices with the interface at the same time The use of the services "Hands-Free Calling" and "Audio Streaming" can now (new) be performed by different BT devices that are connected with the interface at the same time. For example: cell phone for hands-free calling and Music Player with Bluetooth transmitter (BT-TX) for audio streaming. -
Page 9: Overview Of Functions
Overview of functions Previously possible Mode Hands-free calling with cell phone BT-Freisprechen Hands-free calling and audio streaming with cell phone BT-Audio-Streaming BT-Freisprechen Audio streaming with BT transmitter (BT-TX) BT-Audio-Streaming Function not available! Possible with SW8205 or higher Hands-free calling with cell phone BT-Freisprechen Hands-free calling and audio streaming with cell phone... - Page 10 Overview of functions Mode Previously possible Hands-free calling with 2 cell phones pos- Function not available! sible Audio streaming with 2 BT pos- transmitters (BT-TX) sible Function not available! Technically not possible Hands-free calling with 2 cell phones Function not available! BT-Freisprechen BT-Freisprechen Audio streaming with 2 BT...
-
Page 11: Telephone: Incoming Call
Telephone: incoming call An incoming call is shown on the OLED display by a vibrating telephone, the note "Call" and (if trans- mitted) name or phone number of the call as well as a fl ashing rotary button. You can reject the call by pressing the red tele- phone button or pressing the PTT button for a longer time. -
Page 12: Mp3 Playback Via Usb
MP3 playback via USB You can connect a USB removable media drive with MP3 fi les to the interface to play the MP3 fi les via the car sound system. The car sound sys- tem must be switched on. During a hands-free telephone call and with active audio streaming, the USB playback is interrupted. -
Page 13: Folder Management / Structure On Usb Removable Data Carrier
In radios with integrated CD changer, the CD count for the interface begins after the maximal internal CD number. Example: Internal changer for 6 CDs (CD01 ... CD06) BT-USB interface with 6 directories Blaupunkt \ CD01 ... CD06 will be shown as CD 07 ... CD12. -
Page 14: Settings Menu (Oled Only)
• To avoid possible setting confl icts, you should delete or rename the confi g.txt fi le from your Blaupunkt directory when using an OLED display. • The following overview shows which settings you can perform in your interface. The basic... -
Page 15: Settings
This setting should be activated if your cell phone does not request the PIN for the "Blaupunkt IF" after the pai- ring during the Bluetooth connection attempt. For exa- mple, this applies to Nokia 6210, Motorola V300... - Page 16 Text is fed through once, then the fi rst part of the text is permanently displayed First part of text is permanently displayed Standard or extended browsing options Access to Blaupunkt directories only \ CD01 ... CD06. Access to any directories (only possible with OLED display!).
- Page 17 Settings [Confi g dispay] ID3 Confi g Display 1 line 2 lines Info 1 Track Album Artist File name Directory or playlist name Info 2 Track Album Artist File name Directory or playlist name Function Display of data from MP3 fi les (ID3 tags) Selection of display form The data selected in "Info 1"...
- Page 18 Display of technical data The displayed technical data of the Bluetooth USB interface correspond to the data listed in "id.txt" Product name of the interface Blaupunkt product no Bluetooth address (serial number of the interface) Hardware version, here "1" Software version, here "8C01VW"...
- Page 19 Setting of the interface to the radio, no change for the OLED dis- play use. Please delete existing confi g.txt fi les from the Blaupunkt directory of your USB stick or USB hard disk stick or USB hard disk. For all compatible VW radios, except for the following model.
-
Page 20: Software Update
Example: "W:\ Blaupunkt" Load the software of the Bluetooth/USB inter- face from www.blaupunkt.de and store it in a directory of your computer. Unzip the ZIP fi le and copy the unzipped fi les to the Blaupunkt directory on the USB device. -
Page 21: Changing The Confi Guration (Ptt)
(remove # in the fi rst column) or deac- tivating (add # in the fi rst column) the desired parameters. For this, proceed as follows: Create a new "Blaupunkt" directory on the USB removable media drive. Display of technical data Product name of the interface... - Page 22 If you have any questions, please take a look at the FAQ (Frequently Asked Questions) under http://blaupunkt.com/de/infoservices_3.asp or contact the Blaupunkt Hotline +49 (180) 5000 225 (0.14 EUR/min from the German PSTN; for cell phone rates, please con- tact your provider)
-
Page 23: Fcc-Statements
FCC-Statements All following FCC statements are valid for the Industry Canada Standard (IC) as well. 1. General Interference Warning: (according to FCC part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and... - Page 24 08-750 18 50 01-8471644 02-6130 0446 76 889 704 0800-118922 0212-335 07 23 800-950-2528 0800 7045446 +604-6382 474 Blaupunkt GmbH Robert-Bosch-Str. 200 D-31139 Hildesheim CM-BP/PRM-AC - 8 622 406 381 Fax: 05121-49 4002 01-610 393 91 44-898 644 09-435 99236...
