REVIEW THE PACKING LIST

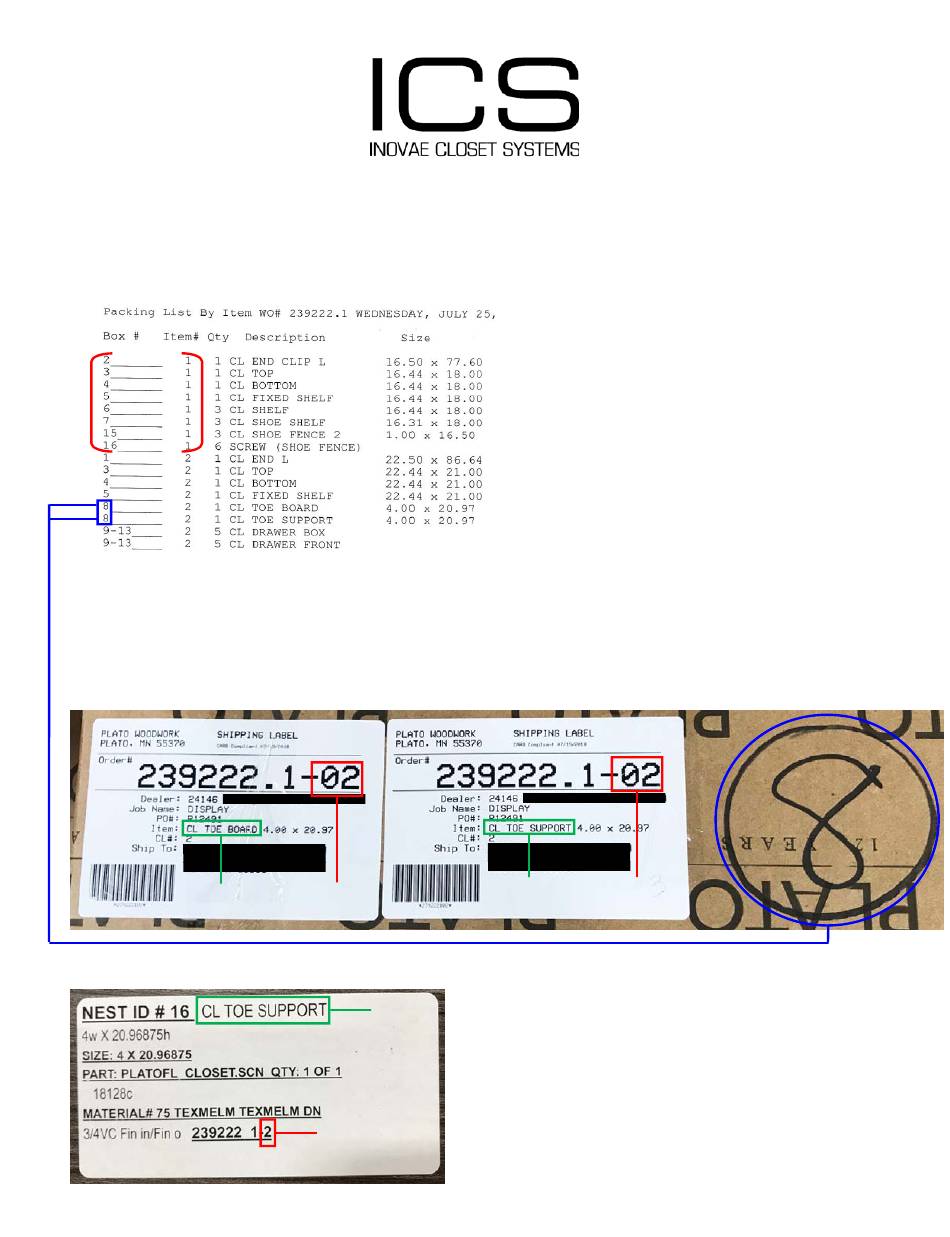

The last section of the packing list is by item number. This list has all of the box numbers required for each
item number. In the list below, there are eight boxes required for item 1.
BOX #
The box number is written on the outside of the box in black magic marker. In the first photo below the box
number is 8. This box contains two items (toe board and toe support for item 2) per the labels attached to the
box. Like sized parts are packaged together so different item numbers can be packaged in the same box.
In the bottom photo, each part has a label that includes the item number and part name, make sure the cor-
rect part is used for the correct item.
PART NAME
PART LABEL
BEFORE YOU BEGIN...
ITEM #2
BOX NUMBER AND BOX LABELS
PART
NAME
ITEM #2
PART NAME
ITEM #2
BOX #8
Advertisement
Table of Contents
Summary of Contents for Plato Woodwork ICS
- Page 1 BEFORE YOU BEGIN... REVIEW THE PACKING LIST The last section of the packing list is by item number. This list has all of the box numbers required for each item number. In the list below, there are eight boxes required for item 1. BOX # The box number is written on the outside of the box in black magic marker.
- Page 2 Plato Woodwork Installation Instructions Plato Woodwork, Inc. | 200 Third Street SW | P.O. Box 98 | Plato, MN 55370 www.platowoodwork.com 800.328.5924 Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014...
-
Page 3: Table Of Contents
Installing your closet in any manner other than the steps outlined in this manual may lead to structural failure of your closet. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 2 ... -
Page 4: Installation Methods
SUSPENDED WITHOUT BACK Units do not touch the floor and are mounted to the wall. SUSPENDED WITH BACK Units do not touch the floor and are mounted to the wall. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 3 ... -
Page 5: Required & Recommended Tools
Connector Bolt Connector Bolt Connector Connector #6 x 5/8” screw #8 x 1/2” screw Shelf Peg #8 - 32 x 1” Screw 2-1/2” Cabinet Hanging Screw (not included) Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 4 ... -
Page 6: Typical Part Identification
Connectors are on the bottom Hanger rail is 3-1/2” high Shelves Toe Support Fixed Shelves Adjustable Shelves Toe Board Connector (installed) Connector (installed) Fixed Shelves Adjustable Shelves Connector Bolt Connector Bolt Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 5 ... -
Page 7: Inventory Your Shipment
PACKING SLIP off items as you take inventory. It will also make the installation process run smoother and will help to prevent any delays along the way. Item number SHIPPING LABEL Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 6 ... -
Page 8: Before You Begin
REVIEW FLOOR PLAN. Install corner units first. Corner Spiral Clothes Pole Unit ......see page 12 Corner Shelf Unit ............. see page 13 Blind Shelf Unit ............see page 14 Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 7 ... -
Page 9: Typical Unit
Typical location is 36th hole from the bottom of the panel or Bolts 44-11/16”. NOTE: The middle fixed shelf may need to be locat- ed precisely while others may be located according to preference. Vertical Panel Figure 2. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 8 ... - Page 10 The route on the back goes towards the back. Attach right vertical panel after back is in place. See Figure 4. Figure 3. Figure 4. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 9 ...
- Page 11 STEP 8: REPEAT STEPS FOR REMAINING UNITS, IF ANY If your floor-based design consists of a multi-section unit, in- stall the fixed shelves and vertical panels of the adjacent units. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 10 ...
- Page 12 NOTE: Toe board is very difficult to remove once in- stalled. INSTALL FRONT TOE BOARD STEP 11: REINSTALL BASEBOARD After installing your closet, reinstall baseboard over any areas not covered by the closet. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 11 ...
-
Page 13: Corner Spiral Clothes Pole Unit
STEP 9: TOE BOARD Install toe board assembly at front by snapping into place. See Fig- ure 5. Shim as needed. NOTE: Toe board is very difficult to remove once installed. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 12 ... -
Page 14: Corner Shelf Unit
STEP 10: TOE BOARD Install toe board assembly at front by snapping into place. See Fig- ure 5. Shim as needed. NOTE: Toe board is very difficult to remove once installed. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 13 ... -
Page 15: Blind Shelf Unit
Secure the L-Bracket using two #6 x 5/8" screws. See Figures 1 & 2. 2” 3/4” Pre-drill Pre-drill Back Elevation Pre-Drill location L-bracket L-bracket Back Elevation L-Brackets in Place Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 14 ... -
Page 16: Open Holes Between Components
Floor middle fixed shelf bottom 3rd bottom 3rd supported 36th hole from hole from hole from bottom 4th bottom bottom bottom hole from (45 1/16” from floor) bottom Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 15 ... -
Page 17: Drawers
Slide above a 8” drawer is located in the 9th hole above this slide. Slide for bottom drawer is located in the 2nd hole above the bottom. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 16 ... -
Page 18: Baskets
allow at least 15 open holes between slides for a 17" basket allow at least 9 open holes between slides for an 11" basket allow at least 5 open holes between slides for a 6" basket Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 17 ... -
Page 19: Tilt-Out Hamper
Shelf screws into two Euro screws into the pre-drilled 7th and 8th pre-drilled Hinge holes holes above the hamper (attached to hamper bottom. bottom) Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 18 ... -
Page 20: Slide-Out Hamper
STEP 6: ADJUST DOOR Turn bolt left or right to adjust angle of the door. See Figure 7. Figure 4. Figure 5. Figure 2. Figure 3. Figure 7. Figure 6. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 19 ... -
Page 21: Slanted Shoe Shelves
STEP 4: INSTALL REMAINING SHELVES Install next shelf using the 7th hole up, leaving 6 open holes between. IMPORTANT: Slanted shoe shelves require adjustable shelf connectors at back and shelf pegs at the front. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 20 ... -
Page 22: Shelf-Mounted Ironing Board
Board rotates 180º. See Figure 6. notch over hinge pin. 4) STORE THE IRONFIX Reverse steps 1 – 3 to store the Ironfix. Figure 3. Figure 6. Figure 4. Figure 5. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 21 ... -
Page 23: Wardrobe Lift
Once installed, cycle the unit 3-5 times to loosen the pistons to and allow for smooth operation. STEP 1 STEP 2 STEP 4 STEP 5 Alignment block STEP 6 STEP 3 Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 22 ... -
Page 24: Doors
To reactivate, move switch back to original posi- tion. Depth Adjustment: Rotate screw to ad- just door in/out (+3 mm, —2mm). Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 23 ... -
Page 25: Adjustable Shelves
floor. Secure to vertical panel using a Euro Screw at the front using one of the 5mm pre-drilled holes and a #6 x 5/8” screw at back. Valet Pole: 70” from floor, 60” from floor for a child’s closet Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 24 ... -
Page 26: Pants Rack Hanger
Pulls out on full-extension, soft-close slides and swivels 90 degrees. Framed mirror is 13-3/16" wide by 47-1/4" tall by 1-1/8" thick. Follow the instructions included with the mirror. Inovae Closet Systems by Plato Woodwork | Installation Instructions | 07.2014 25 ...
