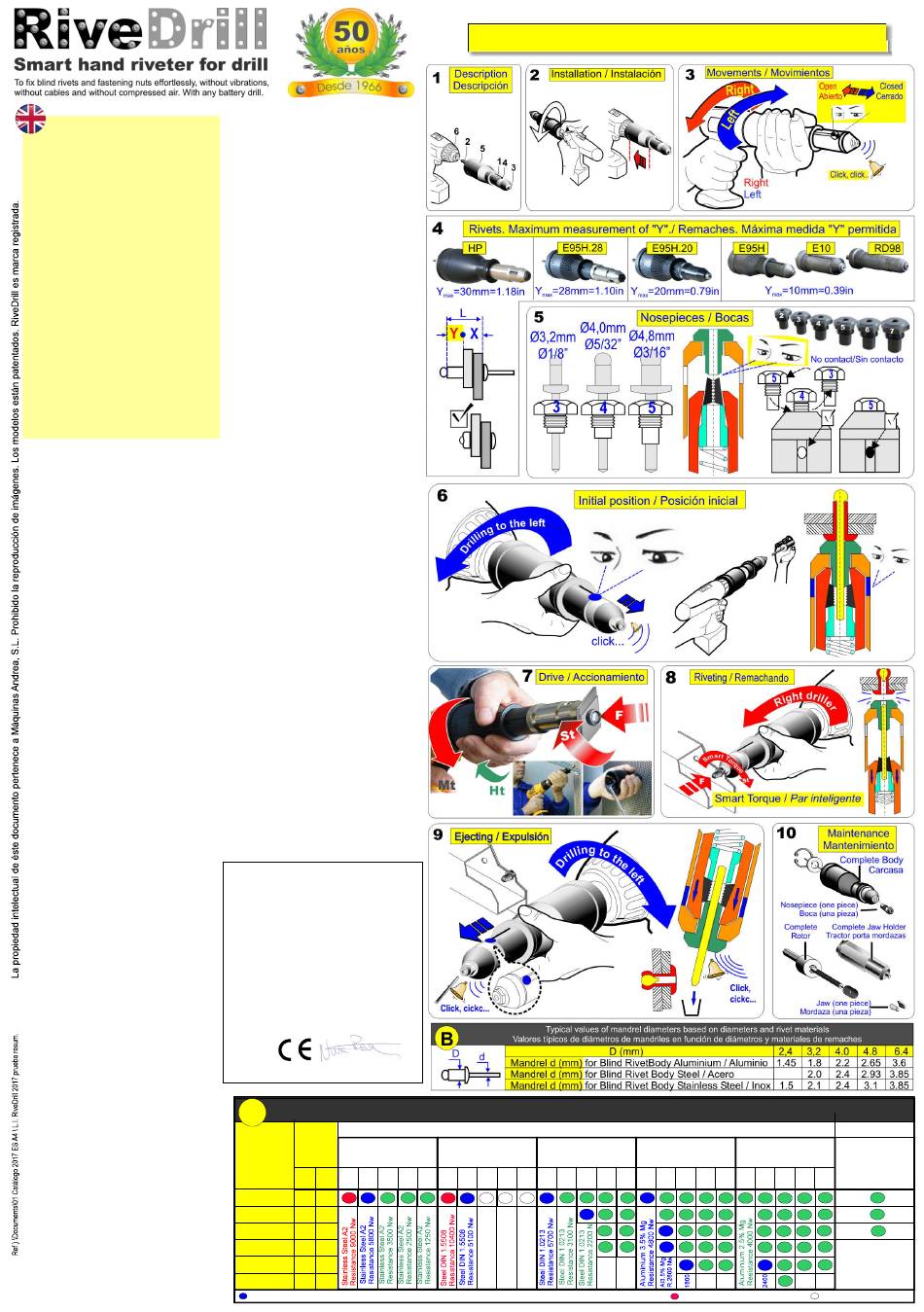

RiveDrill HP Instructions For Use

Security
Wear gloves on the hand holding RiveDrill,
glasses and safety shoes. Adopt stable
and secure postures. Keep work areas
clear, without children or people around,
unrelated to the work being done. Be
aware of the reaction in the hand holding
RiveDrill and release if it seems excessive
reaction, than can increase if it is heating
or overloading. In that case, stop and leave
to cool.
Terms of use
a) RiveDrill should only be used with
reversible cordless (battery) drills.
b) Always respect the measure of "Y"
according to paragraph and figure 4
c) Always use the proper nosepiece
according to paragraph and figure.5
d) Never exceed the speed of the drill,
according to paragraph and table "A".
e) When RiveDrill is heated during long
cycles of work using hard rivets, the
reaction in the hand increases and must be
stopped to cool.
Previus information
1.Description
1Riveter. 2 Axis. 3 Nosepiece. 4 Control
Hole. 5 Hand Protector. 6 Drill.

2. Installation

. RiveDrill is installed as a
drill bit in any cordless (battery) reversible
drill, with torque control and variable
speed. Ensure that the chuck does not rub
on RiveDrill, that it is well centered so that
it will not oscillate and that it is fastened
and tight. A telescopic safety protector
covers the hand, when moving it covering
the drill holder, only on the models;
E95H.28, E95H.20, E95H, and E95H.ND2.

3. RiveDrill interior movements.

RiveDrill is hold with the hand so that it
does not turn when the battery drill is
operated. Turning to the right opens the
control hole and closes the jaws (black).
Turning to the left the control hole is
closed, the jaws are opened and the front
clutch sounds when the tractor jaws holder
is coming to the end of its run.
4. Rivets and its measurement "L" "X"
and "Y". Rivets of any length "L" can be
used to attach any "X" thickness but the
"Y" size of the rivet should never be longer
than the "Y " path indicated for each
max
RiveDrill model, which are as follows: HP
(Y = 30mm), E95H.28 (Y = 28mm),
MAX MAX
E95H.20 (Y = 20mm), and E95H, E10,
MAX
and RD98, (Y = 10mm). As RiveDrill
MAX
rivets in a single action, the length "Y" that
will form the rivet (Y = L-X) must be shorter
than the run of RiveDrill "Y " allowed for
max
each model of fig.4.

5. Nosepieces.

Use only the nosepiece
marked on its hexagonal side, with the
number closest to the diameter of the rivet
in mm, or its equivalent in inches. Some
nosepieces are optional and are not
included in the unit of purchase. Before
replacing the Nosepiece, move the jaw-
holder tractor, turning to the right and
holding RiveDrill with the hand until the
control hole opens, to remove pressure
between the nosepiece (green) and the
jaws (black). Use only the corresponding
nosepiece. Without the nosepiece in place,
RiveDrill will not move, even if the drilling
machine is operated.

6. Initial position.

Turn the cordless
(battery) drill to the left while holding it with
the gloved hand so that it does not turn
until the control hole is closed and the
clutch is heard, indicating that the RiveDrill
is in the initial position with the jaws open,
ready to receive the rivet.

7. Set the rivet.

Smart RiveDrill transforms
the rotary power of the drill (Mt),
automatically generating an intelligent
torque (Smart torque) (St), which reduces
the operator's effort (Hand torque) (Ht),
especially in the most resistant rivets.
Simultaneously it produces a powerful
riveting force (F), which crushes the rivet.
Wai of use

8. Riveting.

Hold RiveDrill with your gloved
hand and turn the cordless (battery) drill to
the right until it rivets. Stop immediately. The
reaction in the hand is proportional to the
hardness of the rivet used. If the reaction in
the hand is increasing with the use, you must
stop to avoid overheating.

9. Expel the mandrel of the rivet

. Change
the turn of the cordless (battery) drill holding
RiveDrill with the hand, do it inclining the
riveter down, until hear the clutch and fall
down the broken mandrel. RiveDrill is ready
at the initial position for the next rivet.
Aditional information

10. Spare parts.

RiveDrill is designed so that
the user can perform simple maintenance. It
is disassembled just by releasing the spring
washer from its shaft with pliers. This way the
Rotor and the tractor jaw-holder are
extracted. Both modules, as well as jaws and
any other piece, can be purchased online.
You can also download the maintenance
manual at www.rivedrill.net, with tips,
suggestions and videos, to obtain the best
professional fixings, with RiveDrill.

Tabla "A"

Indicates in green or blue, rivets
that can be used respectively at maximum
speeds of 1400 r.p.m. Or 450 r.p.m. ,
depending on their size, materials, alloys and
types. It should be noted that there are
aluminum rivets, diameter 4.8 mm, which
have resistances from 102 kg to 260 kg, and
rivets of steel, diameter 6.4 mm, which have
resistances from 570 kg to 1040 kg,
depending on their alloy. The durability of the
RiveDrill depends on the hardness of the
rivets, the riveting speed and the care of the
operator in avoiding overheating.
Table "B" Contains the typical values ??of
the diameters of the mandrels according to
diameters and materials of the rivets. Values
??other than those indicated may cause jams
or breakdowns.

Warranty

In case of a manufacturing defect, contact
your distributor, supplying a purchase invoice.
The defects produced by not applying; The
"Conditions of use", improper use, overload
or overheating, or normal wear and tear, as
well as shipping or receiving costs, are
excluded from the guarantee.
In case of a manufacturing defect, contact
your distributor, supplying a purchase invoice.
The defects produced by not applying; The
"Conditions of use", improper use, overload
or overheating, or normal wear and tear, as
well as shipping or receiving costs, are
excluded from the guarantee.
Declaration of conformity
Máquinas Andrea, S.L.
Calle Islas Cíes 61, 28035 Madrid (España)
Declares that RiveDrill satisfy the
requirements of Directive 2006/42 / EC in
accordance with Annex V of the European
Parliament and of the Council of 17 May
2006. RiveDrill is designed to be operated by
a cordless (battery) drill only after it has been
determined The conformity of the finished
product with the requirement of the directive.
1-July-2017 Administrator. Nuria Pérez
RiveDrill capacity based on; Maximum value "Y", material, diameter, type of rivet, and drilling speed
A
Capacidad de RiveDrill en función de; valor máximo "Y", material, diámetro, tipo de remache, y velocidad de taladrador
Y
Stainless Steel A2
MAX.
Acero Inox A2
RiveDrill
1/4 3/16 5/32 1/8 3/32
in mm
6,4 4,8 4,0 3,2
1.18 30
HP
1.10 28
E95H.28
0.79 20
E95H.20
0.39 10
E95H
0.39 10
E10
0.39 10
RD98
Use only with battery drill at speeds lower than 1000 r.p.m/ Usar sólo con taladrador de baterías a velocidad menor a 1000 r.p.m.
Rivet. Material and diameter. / Material y Diámetro de Remache
Steel DIN 1.5508 Steel DIN 1.0213
Acero DIN 1.5508 Acero DIN 1.0213
1/4 3/16 5/32 1/8 3/32 1/4 3/16 5/32 1/8 3/32
2,4 6,4 4,8 4,0 3,2 2,4 6,4 4,8 4,0 3,2
instructions for use
Aluminium 3.5% Mg Aluminium 2.5% Mg
Aluminio 3,5% Mg Aluminio 2,5% Mg
1/4 3/16 5/32 1/8 3/32
1/4 3/16 5/32 1/8 3/32
2,4 6,4 4,8 4,0 3,2 2,4 6,4 4,8
Red is not possible / Rojo no es posible
Type / Tipo
Peeled, Grooved,
Sealed, Structural.
Flor, Ranurado,
Estanco, Estructural.
4,0 3,2 2,4
Infrequent / Poco frecuente
