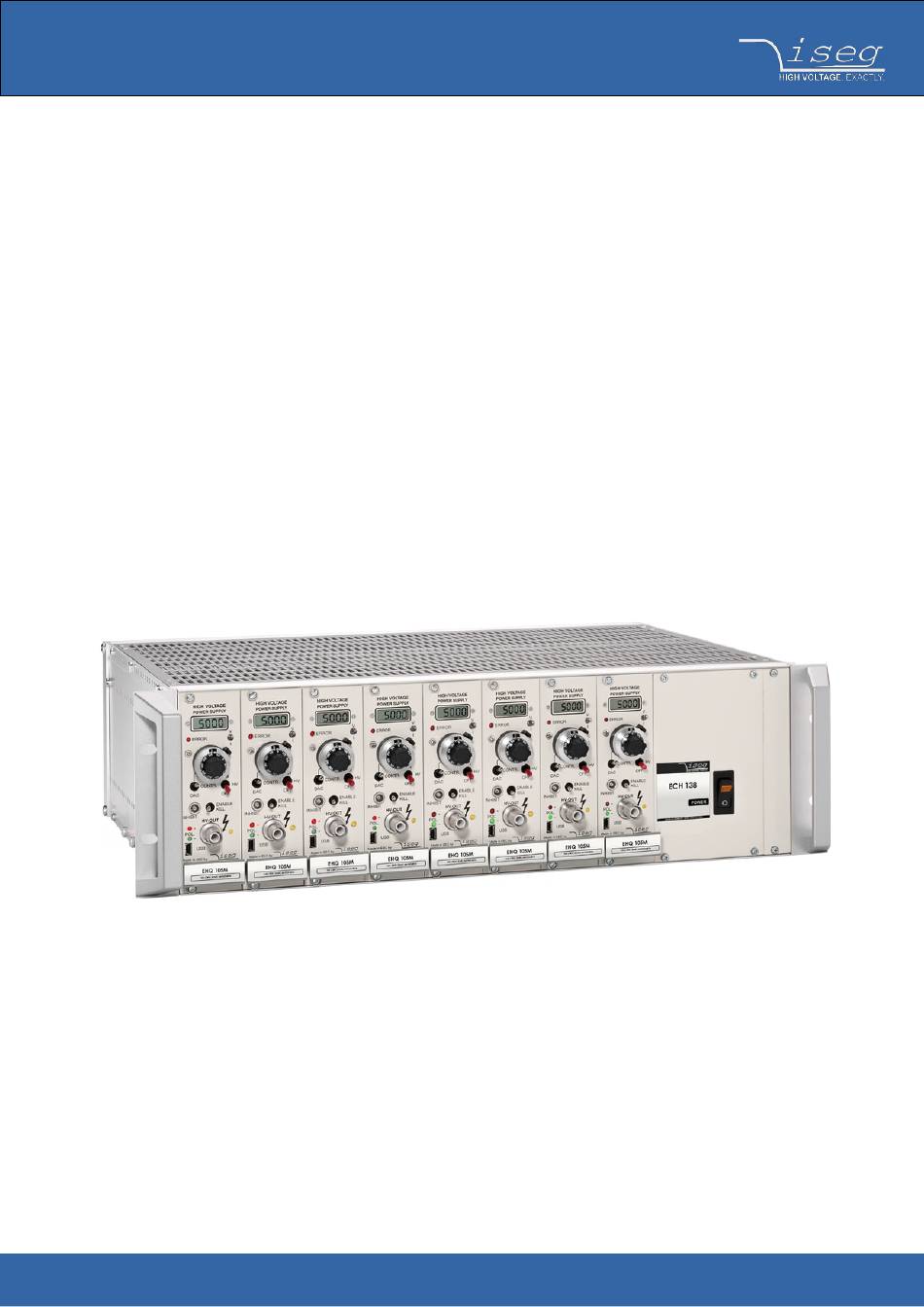

- Page 1 Technical documentation last changed on: 11.02.2020 ECH 104 / 134 / 108 / 138 MMC-Crate Series for iseg MMC High Voltage Power Supply Modules 19“ and desktop versions • 4 / 8 MME slots • 200 W power supply •...
-
Page 2: Document History
Copyright © 2020 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advices marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advices marked as “Information” give important information. INFORMATION Read the manual. Attention high voltage! Important information. ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 3/17... -
Page 4: Intended Use
The high-voltage power supply unit may only be installed by qualified personnel. • ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 4/17... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 5/17... - Page 6 When controlling, with software, the high voltage systems, make sure that nobody is near the high voltage or can be injured. Caution! INFORMATION Please check the compatibility with the devices used. INFORMATION ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 6/17...
-
Page 7: Table Of Contents
ECH 104 and ECH 108 with RS232 ECH 134 and ECH 138 with CAN Accesories Order guides Appendix Glossary Warranty & Service Disposal Manufacturer contact ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 7/17... -
Page 8: General Description
1 General description The crate series ECH 104/134/108/138 stands for iseg MME systemcrates in half 19“ or 19“ racksize, 3U height and integrated 200 W power supply. By the compact form factor they are suitable for desktop or mobile use. 4 or 8 MME slots are available. -
Page 9: Operation And Maintenance
The devices can be controlled via the iseg terminal. For more information please refer to the description “SCPI Common Programmers-Guide”, see 9 Appendix. ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 9/17... -
Page 10: Dimensional Drawings
5 Dimensional drawings Figure 1: ECH 104 Figure 2: ECH 134 ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 10/17... - Page 11 Figure 3: ECH 108 ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 11/17...
- Page 12 Figure 4: ECH 138 ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 12/17...
-
Page 13: Connectors And Pin Assignments
CAN low CAN_GND CAN ground CAN_H CAN high Table 4: CAN Interface connector (DSUB9) CONNECTOR ASSIGNMENTS Name DSUB9 Figure Table 5: Connectors ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 13/17... -
Page 14: Accesories
4 = 4 Slot For Examle: 8 = 8 Slot 201 = 20 • 10 [W] = 200W Table 7: Configuration item code ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 14/17... -
Page 15: Appendix
9 Appendix For more information please use the following download links: This document https://iseg-hv.com/download/SYSTEMS/MME/ECH/iseg_manual_ECH1x4-1x8_en.pdf isegTERMINAL https://iseg-hv.com/download/SOFTWARE/isegTERMINAL/current/ SCPI Programmers-Guide https://iseg-hv.com/download/SOFTWARE/isegSCPI/SCPI_Programmers-Guide.pdf ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 15/17... -
Page 16: Glossary
Reference temperature HV ON/OFF HV OFF/ON channel(s) high voltage low voltage signal ground Inhibit Polarity KILL KillEnable ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 16/17... -
Page 17: Warranty & Service
Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de ECH 104 / 108 / 134 / 138 - MME Crate | Last modified on: 11.02.2020 | www.iseg-hv.com 17/17...
