Summary of Contents for Connect Tech COM Express CCG022
-

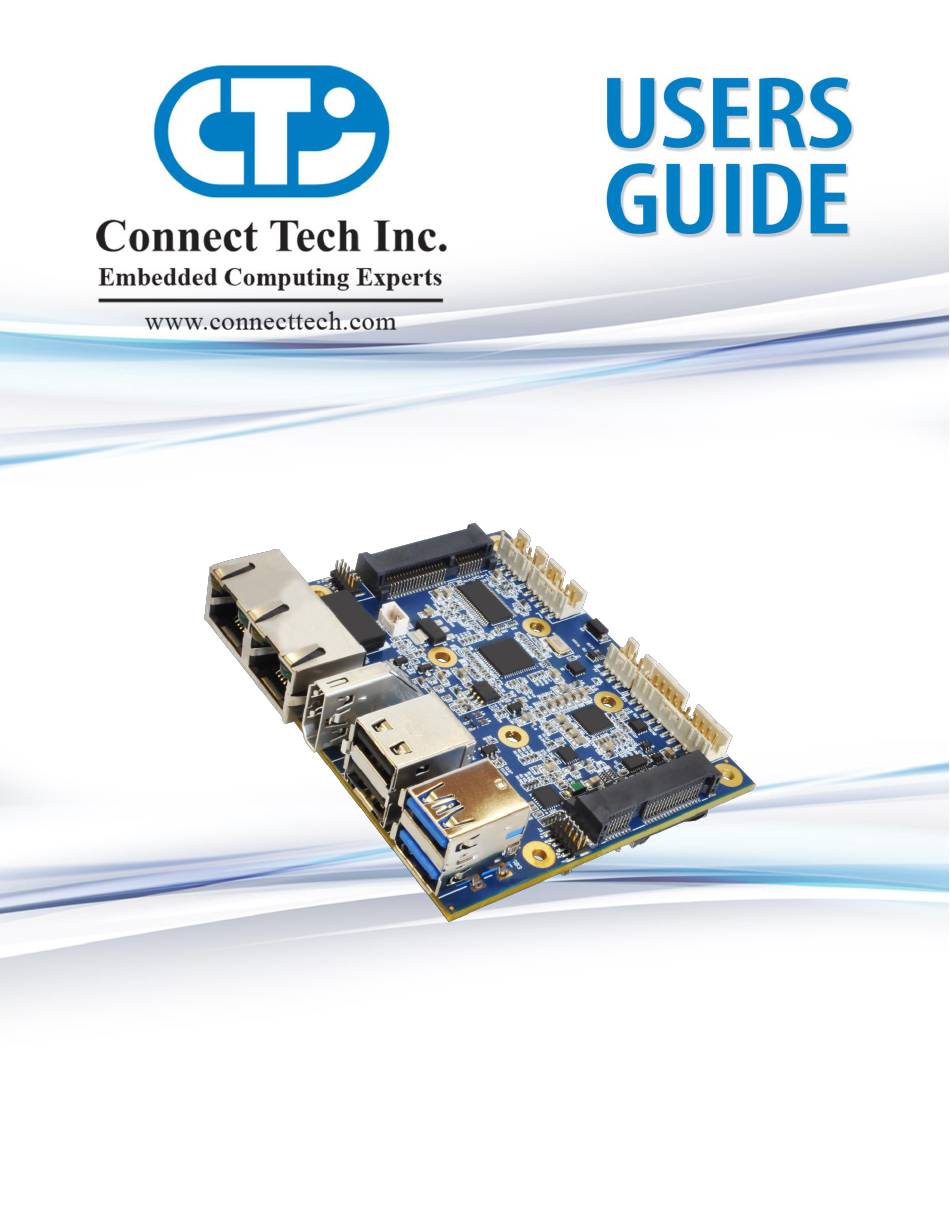

Page 1: Table Of Contents
® COM Express Type 10 Mini Carrier CCG022 Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00489 Revision 0.01 2019-07-04... -
Page 2: Table Of Contents
/ mSATA Connector Pinout ....................25 System Miscellaneous ........................... 26 System Connector ..........................26 J2 – System Jumper Block ........................26 Input Power & Control ..........................27 Document: CTIM-00489 Page 2 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 3 Cable Kits ............................32 CCG022 Cable Kit - CKG044 – “Full” Cable Kit ..................32 Appendix A – COM Express Signal/Pinout Connection Details ............33 Document: CTIM-00489 Page 3 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 4: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 5: Limited Product Warranty
Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. authorized modification or repair. -
Page 6: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: •... -
Page 7: Introduction
Introduction Connect Tech’s COM Express® Type 10 PC Connector Carrier is an extremely small carrier board featuring a combination of PC style connectors and locking pin header connectors. The carrier has a robust offering, with 2x USB 3.0 Type A ports, 2x USB 2.0 Type A ports, 1x HDMI, 1x LVDS interface, and 2x GbE. -
Page 8: Part Numbers / Ordering Information
COM Express Type 10 PC Connector Carrier Manual Users Guide www.connecttech.com Part Numbers / Ordering Information Part Number CCG022 COM Express® Type 10 PC Connector Carrier Document: CTIM-00489 Page 8 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Product Overview
COM Express Type 10 PC Connector Carrier Manual Users Guide www.connecttech.com Product Overview CCG022 Block Diagram Document: CTIM-00489 Page 9 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Connector Summary & Locations
COM Express Type 10 PC Connector Carrier Manual Users Guide www.connecttech.com Connector Summary & Locations CCG022 Top View CCG022 Bottom View Document: CTIM-00489 Page 10 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 11: Jumper Summary
Audio Input/Output Connector USB 2.0 Port 2 & 3 Connector miniPCIe Slot-1 SIM Socket Jumper Summary Designator Description RS-232/RS-485 Jumper Block System Jumper Block Document: CTIM-00489 Page 11 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 12: Detailed Feature Pinouts And Functional Descriptions
COM Express carrier via a Tyco fine pitch stacking connector. Function COM Express interface Location Carrier 3-6318491-6 Connector PN Manufacturer: TE Connectivity Mating 3-1827231-6 Connector PN Manufacturer: TE Connectivity Pinout See Appendix A Document: CTIM-00489 Page 12 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 13: Display Outputs
[2] – BKLT Control – This signal can be connected to the COM Express backlight control pin or to GND via Jumper J2 position C and D. Document: CTIM-00489 Page 13 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 14: Lvds Backlight Power Connector
LVDS backlight Inverter power Location Carrier SM02B-BHSS-1-TB - Manufacturer: JST Connector PN Mating BHSR-02VS-1 (N) - Manufacturer: JST Connector PN Pinout Signal VA LED VK LED Document: CTIM-00489 Page 14 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 15: Hdmi Video Connector
HDMI Output Connector Location Carrier 2007435-3 - Manufacturer: TE Connector PN Mating Standard HDMI Type A Plug Connector PN Pinout Standard HDMI Type A pinout. Document: CTIM-00489 Page 15 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 16: Usb
USB 2.0/3.0 Location 1932355-1 – Manufacturer: TE Carrier Connector PN Mating Standard USB 3.0 Type A Connector PN Pinout Standard USB 3.0 Type A Document: CTIM-00489 Page 16 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 17: 10/100/1000 Ethernet (Gbe) Connector
Additional drivers will be needed to properly operate the GBE Port 2 on the COM Express carrier. These drivers can be downloaded directly from Intel website from the below link: http://downloadcenter.intel.com/SearchResult.aspx?lang=eng&ProductFamily=Ethernet+Components&Produc tLine=Ethernet+Controllers&ProductProduct=Intel%C2%AE+82574+Gigabit+Ethernet+Controller Document: CTIM-00489 Page 17 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 18: Serial
RS-232 1 Transmit / RS-485 1 Transmit + 232RX1/485RX+ RS-232 1 Receive / RS-485 1 Receive + 485TX1- RS-485 1 Transmit - 485RX1- RS-485 1 Receive - Document: CTIM-00489 Page 18 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 19: Rs-232/485 Jumper Configuration
Position A – M0 Position B – M1 Port 0 Selected Mode Port 1 Selected Mode RS-232 RS-232 RS-422/485 RS-422/485 RS-232 RS-422/485 Undefined Undefined Examples Document: CTIM-00489 Page 19 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 20: Audio
Additional drivers will be needed to properly operate audio on the COM Express carrier. Some downloadable ldrivers can be found below. https://www.cirrus.com/products/cs4207/ Linux Driver: Included in kernels 2.6.30 and up. Document: CTIM-00489 Page 20 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 21: Microsd Card Connector
Connector PN Pinout SDIO Signal COM Express GPIO Mapping SD_D2 GPI2 SD_D3 GPI3 SD_CMD GPO1 SD_VCC (+3.3V) SD_CLK GPO0 SD_D0 GPI0 SD_D1 GPI1 SD_CD# GP03 Document: CTIM-00489 Page 21 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 22: Mini Pcie & Msata Slots
PCIe / SATA Dual Functionality Diagram (U12) ** Selection between mSATA and mini pcie is done via Jumper J2 position E. (ON = mini pcie, OFF = mSATA) Document: CTIM-00489 Page 22 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 23: Half And Full Length Mini Pcie / Msata Module Installation
Below is a diagram of how the standoffs and mounting hardware should be installed. If the screw mount type standoffs is not preferred a solder-in standoff is also available. Document: CTIM-00489 Page 23 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 24: Ccg022 - External Hard Drive Installation
The CCG022 model only has a single mSATA link, so if an external 2.5” (or other) drive is needed, this can be facilitated by the use of an mSATA to SATA adapter. Contact sales@connecttech.com for more details on this configuration. Document: CTIM-00489 Page 24 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 25: Mini Pcie / Msata Connector Pinout
PCIe TX+ From Host System SATA RX+ From Host System USB D- USB D+ +3.3V +3.3V +3.3V +3.3V RESV RESV +1.5V +1.5V +3.3V +3.3V Document: CTIM-00489 Page 25 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 26: System Miscellaneous
Connect LVDS PWM Signal to GND Connect LVDS PWM to COM Express mini PCIe (ON) / mSATA (OFF) selection SUS_S3# Functionality Enabled (ON) / Disabled (OFF) Document: CTIM-00489 Page 26 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 27: Input Power & Control
Connect Tech provides a Battery with cable assembly in any of the “Full” or “Starter” cable kits, please see the Cable Section of this manual for more details. If this battery is not sufficient for the application, a different battery cable can be designed. -
Page 28: Typical Hardware Installation Procedure
The COM Express Type 10 PC Connector Carrier has 1 on-board indicator LED. Description Power Good – Indicates carrier powers supplies are operating properly See below for a diagram of where the LED is located. Document: CTIM-00489 Page 28 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 29: Power Consumption And Thermals
Note [1]: COM Express Type 10 Module used for measurements - Intel Atom E3815 CPU Note [2]: Input voltage for all tests above was +12V Document: CTIM-00489 Page 29 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 30: Thermal Properties
23.4 degrees Celsius open-air environment (lab setting) • Intel Atom E3815 type 10 module installed • Images captured after 30 minutes in above system state TOP VIEW SIDE VIEWS Document: CTIM-00489 Page 30 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 31: Mechanical Drawings & Models
Users Guide www.connecttech.com Mechanical Drawings & Models A complete 3D STEP Model file of carrier board can be downloaded here: http://www.connecttech.com/ftp/3d_models/CCG022_3D_MODEL.zip 2D Mechanical Dimensioned Drawing Document: CTIM-00489 Page 31 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 32: Cable Kits
Cable Kits The following table summarizes the carrier’s available cable kits from Connect Tech. These cable kits all include breakout cables to PC type panel mountable connectors. These cables can be used for production deployment or for lab bring-up and test purposes. -
Page 33: Appendix A - Com Express Signal/Pinout Connection Details
HD Audio (P13) Output HDA_RST# HD Audio (P13) Output GND (FIXED) Power HDA_BITCLK HD Audio (P13) Output HDA_SDOUT HD Audio (P13) Output BIOS_DISABLE# Input THRMTRIP# Output Document: CTIM-00489 Page 33 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 34 LVDS Video (P9) Output LVDS_A1+ LVDS Video (P9) Output LVDS_A1- LVDS Video (P9) Output LVDS_A2+ LVDS Video (P9) Output LVDS_A2- LVDS Video (P9) Output Document: CTIM-00489 Page 34 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
- Page 35 Input Power +VIN (P4) Power GND (FIXED) A110 Power GND (FIXED) Power GBE0_ACT# GBE Port 0 (P1B) Output LPC_FRAME# Output LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 Document: CTIM-00489 Page 35 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
- Page 36 USB 2.0 Port 3 (P14) USB_0_1_OC# USB 2.0 Port 0/1 Overcurrent Input USB1- USB 2.0 Port 1 (P14) USB1+ USB 2.0 Port 1 (P14) EXCD1_PERST# Output EXCD1_CPPE# Input Document: CTIM-00489 Page 36 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
- Page 37 VCC_5V_SBY Carrier Board Internal Circuitry Power VCC_5V_SBY Carrier Board Internal Circuitry Power VCC_5V_SBY Carrier Board Internal Circuitry Power BIOS_DIS1# Input DD0_HPD HDMI (P11) Output Document: CTIM-00489 Page 37 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
- Page 38 Input Power +VIN (P4) Power VCC_12V B108 Input Power +VIN (P4) Power VCC_12V B109 Input Power +VIN (P4) Power GND (FIXED) B110 Power Hello from the author Document: CTIM-00489 Page 38 of 38 Date: 2019-07-04 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
