Trinity TBFLNA-1406 Owner's Manual

24" bamboo kitchen cart w/ drop leaf
Hide thumbs

Advertisement

Quick Links

Download this manual
®
Everything in its place.
OWNER'S MANUAL
TRINITY 24" BAMBOO KITCHEN CART
W/ DROP LEAF
Model # TBFLNA-1406

Advertisement

loading
Need help?

Need help?

Do you have a question about the TBFLNA-1406 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trinity TBFLNA-1406

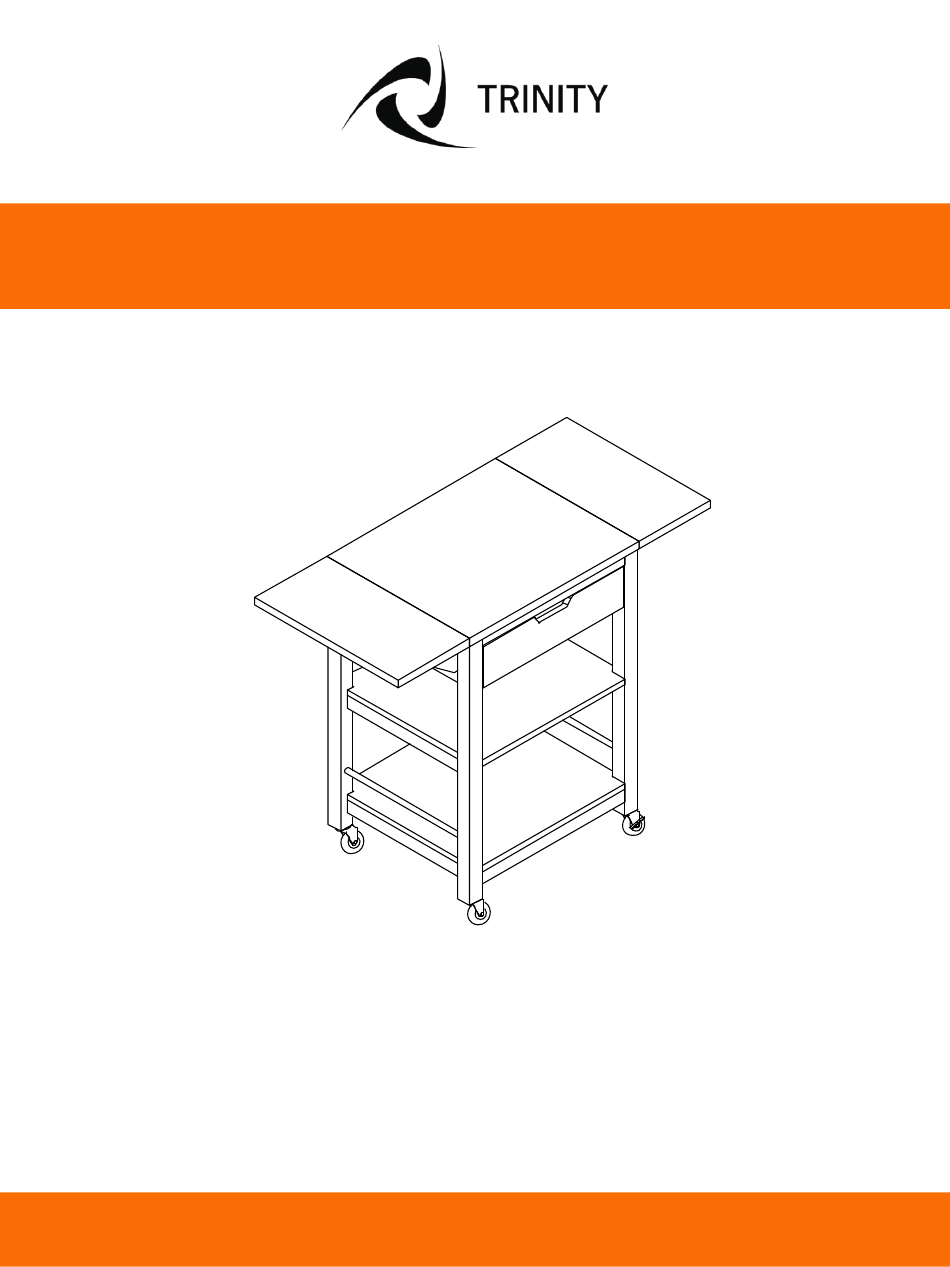

  • Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY 24” BAMBOO KITCHEN CART W/ DROP LEAF Model # TBFLNA-1406...

  • Page 2: Parts List

    Your TRINITY 24” Bamboo Kitchen Cart should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via our “Contact Us”...
  • Page 3 (16) + (2) extra SCREW (8) + (1) extra (18) + (2) extra black NON-LOCKING LOCKING WRENCH (1) WASHER (4) CASTER (2) CASTER (2) CAM LOCK SCREWDRIVER (1) CONNECTOR SCREW (12) + (1) extra (12) + (1) extra © 2017 TRINITY - 800.985.5506...
  • Page 4 AA (4) CC (4) II (1) holes as pictured. Orient LOWER SHELF FRAME (G) with Trinity logo facing out. Align holes on LOWER SHELF FRAME (G) with DOWELS (CC) and push onto LOWER SHELF (E). Insert (4) SCREWS (AA) through LOWER SHELF FRAME (G) and fasten tightly to LOWER SHELF (E) with SCREWDRIVER (II).
  • Page 5 (KK) in clockwise direction until BACK FRAME (F) is pulled tight with LEFT SIDE FRAME (B). Insert (6) SCREWS (AA) through cross beams of LEFT SIDE FRAME (B) and fasten tightly to UPPER SHELF (D) and LOWER SHELF (E) with SCREWDRIVER (II). © 2017 TRINITY - 800.985.5506...
  • Page 6 (B). To prepare for the next step, extend the triangular support by pulling it away from the SIDE FRAMES (B, C) and point it outward. Do this to all (4) triangular supports on both sides. © 2017 TRINITY - 800.985.5506...
  • Page 7 Insert (2) CAM LOCKS (KK) to BACK FRAME (F). Use SCREWDRIVER (II) to turn CAM LOCKS (KK) in clockwise direction until TOP (A) is pulled tight with the frame. © 2017 TRINITY - 800.985.5506...
  • Page 8 PANEL (H) and DRAWER BACK PANEL (I) into J (1) BB (4) II (1) blind holes on DRAWER LEFT PANEL (J). Insert (4) DRAWER SCREWS (BB) through the DRAWER LEFT PANEL (J) and tightly fasten them with the SCREWDRIVER (II). © 2017 TRINITY - 800.985.5506...
  • Page 9 Lift up the Drop Leaf with one hand until surface is flat. With the other hand fold out the triangular supports by rotating them. Finally let Drop Leaf down, setting it on the triangular supports. © 2017 TRINITY - 800.985.5506...
  • Page 10 SERVICE PARTS LIST – TBFLNA-1406 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description ZSV-01-028-1514 Cam Lock XXX-97-002-0001 Wrench ZSV-01-021-0633 Connector Screw ZSV-99-007-3010 Non-locking Caster LNA-15-004-1904 Drawer Back Panel ZSV-01-007-1035 Washer ZBK-01-025-0425 Drawer Screw LNA-14-032-2032...
  • Page 11 SERVICE PARTS LIST – TBFLNA-1406 TRINITY Customer Service provides the following replacement parts: © 2017 TRINITY - 800.985.5506...
  • Page 12 Total weight capacity of Kitchen Cart 175 lb 9. Lock the casters when leaving cart in stationary position. If you wish to convert this into a stationary cart, feet levelers (XBK-98-003-25384) are available as an accessory through www.trinityii.com. © 2017 TRINITY - 800.985.5506...

  • Page 13: Care And Maintenance

    • Clean up any spills immediately to prevent stains from forming on the wood surfaces. • Do not put hot items directly on the cart to prevent damaging and discoloring wood surfaces. © 2017 TRINITY - 800.985.5506...

  • Page 14: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY 24” Bamboo Kitchen Cart. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 15: Year Limited Warranty

    Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.
  • Page 16 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
