DUPONT
™
CORIAN
®
SOLID SURFACE
PRODUCT FABRICATION BULLETIN
NA/ENGLISH
DUPONT
(MODEL 690) INSTALLATION
INTRODUCTION
his bulletin addresses installation of the DuPont™ Corian®
Farm Sink (model 690).
OVERVIEW
he DuPont™ Corian® Farm Sink requires cabinet
preparation and support for a successful installation. he
recommended installation is a "soft" seam undermount. In
addition, the narrow strip of countertop behind the sink
needs proper support during fabrication, transportation,
and installation.
A. TOOLS REQUIRED
• Safety glasses
• Tape measure
• Level
• Jig saw
• 2" (51 mm) spring clamps
• Caulk gun
• 36" (914 mm) bar clamps (3)
B. CONSUMABLE SUPPLIES REQUIRED
• Masking tape
• Construction adhesive
• Silicone sealant
• 1" x 4" x 36" (25 x 102 x 914 mm) pine board
• 2" x 4" x 36" (51 x 102 x 914 mm) lumber (2)
• 12" x 20" x 1/2" (305 x 508 x 12 mm) plywood (2)
• 1" (25 mm) drywall screws (16)
• 2" (51 mm) drywall screws (18)
• Template sheet (cardboard or heavy paper)
C. PREPARATION:
C.1. Sink Fit
he DuPont™ Corian® Farm Sink is designed to mount
under the countertop in an "Apron" type sink base cabinet.
Verify that the cabinet apron height is greater than the
CORIAN
®
™
1
FARM SINK
height of the Farm Sink apron. he sink base should be 33"
(840 mm) or wider. Installing this sink in a 30" (760 mm)
sink base will require extensive modiication to the side
walls and is not recommended.

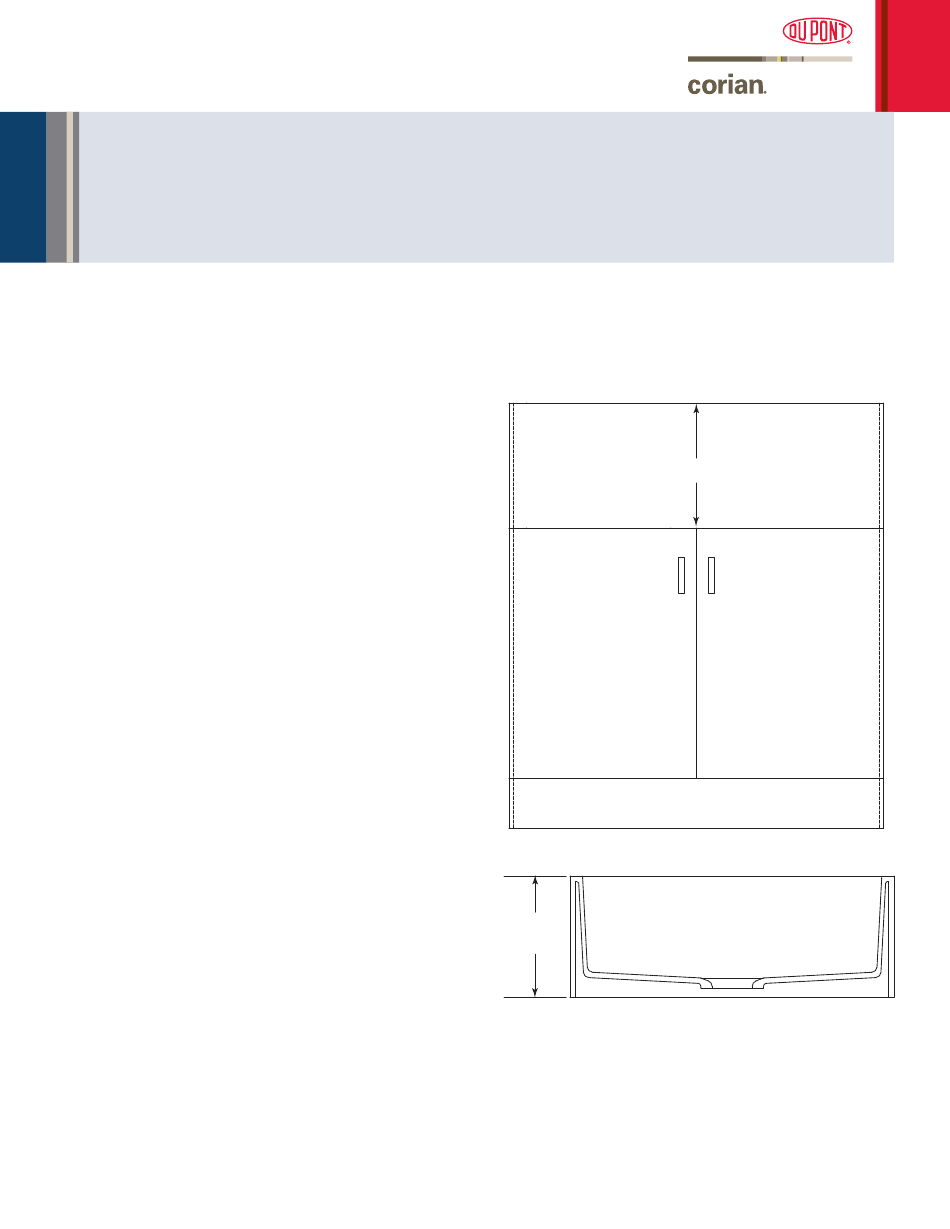

Must be greater than 11" (280 mm)
"Apron" Type Sink Base Cabinet
11.0"
(280mm)
Figure C-1
Wood dimensions provided are nominal values. Actual values are smaller and should be
1
measured wherever precise dimensions are required.
Corian
®
Model 690 Farm Sink
Page 1 of 4
Advertisement
Related Manuals for Dupont CORIAN 690
Summary of Contents for Dupont CORIAN 690
- Page 1 • 12" x 20" x 1/2" (305 x 508 x 12 mm) plywood (2) • 1" (25 mm) drywall screws (16) • 2" (51 mm) drywall screws (18) 11.0" • Template sheet (cardboard or heavy paper) (280mm) C. PREPARATION: C.1. Sink Fit Corian ® Model 690 Farm Sink he DuPont™ Corian® Farm Sink is designed to mount under the countertop in an “Apron” type sink base cabinet. Figure C-1 Verify that the cabinet apron height is greater than the Wood dimensions provided are nominal values. Actual values are smaller and should be measured wherever precise dimensions are required. Page 1 of 4...
- Page 2 Take care in measuring and cutting the cabinet. Any damage to the cabinet is excluded from the DuPont™ Steps to completion: Corian® Residential Limited Warranty and is the " (13 mm) thick plywood 12" x 20" 1. Cut two pieces of responsibility of the installer.
- Page 3 DUPONT ™ CORIAN ® FARM SINK (MODEL 690) INSTALLATION Remove the plywood from the cabinet and place them on Clamp plywood pieces each side of the sink. Set the 2 x 4s on the bottom of the on each inside surface sink and clamp them to the plywood with bar clamps. Level the 2 x 4s and use the 2" (51 mm) drywall screws to assemble all 5 pieces as shown in Figures C-6 and C-7. Measure the he 2 x 4s should be placed as far apart as possible to distance between inside surfaces allow access to the drain hardware.
- Page 4 This information is based on technical data that E.I. du Pont de Nemours and Company and its affiliates (“DuPont”) believe to be reliable, and is intended for use by persons having technical skill and at their own discretion and risk. DuPont cannot and does not warrant that this information is absolutely current or accurate, although every effort is made to ensure that it is kept as current and accurate as possible.
