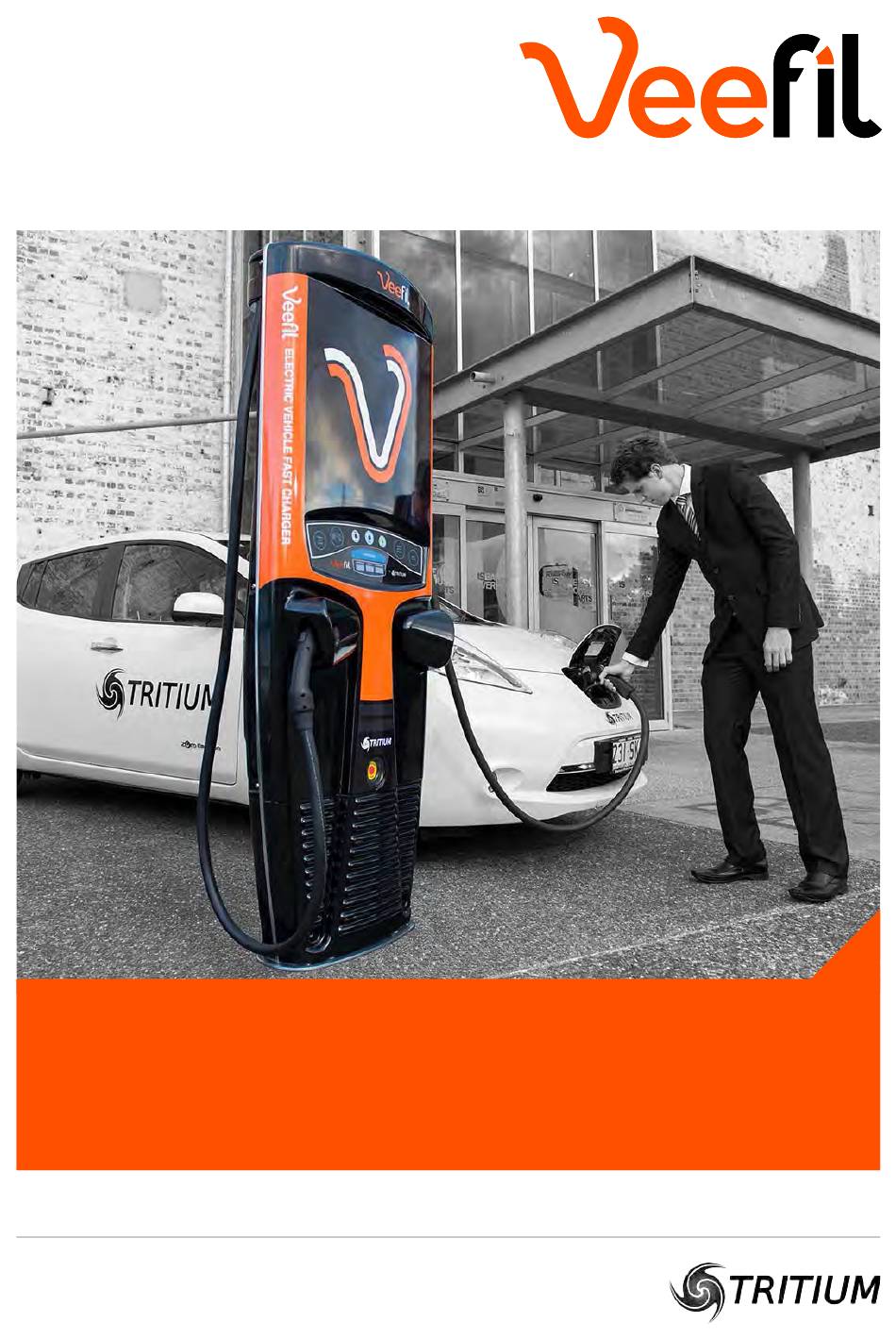

Tritium Veefil TRI93-50-01 Instruction Manual

Tritium Veefil TRI93-50-01 Instruction Manual

Electric vehicle fast charger

Advertisement

Electric vehicle fast charger
Electricvehiclefastcharger
instruction manual
instructionmanual
enquiries@tritium.com.au
www.tritium.com
 V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2014TritiumPtyLtd
T: +61 (0)7 3129 4389

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Veefil TRI93-50-01 and is the answer not in the manual?

Questions and answers

Omed Sherzad
February 28, 2025

How do I turn off Free mode on the Ivy Tritium Veefil RT50. What is the configuration key to disable it.

Mike
January 29, 2025

we have 2 chargers that have an error message that says relay stuck closed

Summary of Contents for Tritium Veefil TRI93-50-01

  • Page 1 Electricvehiclefastcharger Electric vehicle fast charger instructionmanual instruction manual enquiries@tritium.com.au T: +61 (0)7 3129 4389 www.tritium.com  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2014TritiumPtyLtd...
  • Page 2: Table Of Contents

    Operating Instructions....................27 Model TRI93-50-02 DC and AC charging specifications................31 Site configuration & fixing............... 32 Unpacking & installation preparation............35 Fix to ground and feed power ..............36 Operating Instructions....................39 Maintenance Instructions - all models................. 40 TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 3: Important Safety Instructions And Specifications. Save These Instructions

    Connections to the battery charger shall comply with all local codes and ordinances. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 4 55°C /131°F Input: Weather Rating: Worldwide (excluding USA): IP65 Electronics Enclosure NEMA Type 3R 3ø WYE CONNECTED 230/400V, 240/415V ±10% 50Hz 55kW USA Only: 3ø WYE CONNECTED 277/480V ±10% 60Hz 52kW 1ø, 120V 60Hz 250W TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 5: Fcc Notice

    (Tritium Pty Ltd) could void the us- with the instruction manual, may cause er’s authority to operate this equip- harmful interference to radio communi- ment cations.
  • Page 6: Packaging, Handling & Receipt

    Only lift the Veefil packaging in its horizontal orientation using a forklift, pallet jack or with lifting straps and en- gine hoist, forklift or crane. Check the weight on the delivery documents and ensure the lifting apparatus used is com- patible. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 7: Site Configuration & Fixing

    Fixing point holes Ethernet cable hole Grounding conductor hole Grounding stud VEEFIL FRONT All dimensions shown in mm Do not scale Overall Dimensions Figure 1. Base plate dimensions Baseplate = 10mm OR 3/8 inch thick TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 8 The Veefil is designed to accommodate power cabling in two different scenarios; through an underground conduit, or with conduit above the ground. Refer to the installation instruction for full details on Above ground power in conduit: installation and commissioning. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 9 Figure 5. Prior to installation the conduit and wiring will require trimming. Figure 5. Top view 1 metre/3 feet Back left fixing point Overall footprint Baseplate TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 10 Figure 8. Top view SAE Combo 1200 Plug Range WHEEL STOPS 1200 CHAdeMO Plug Range WHEEL STOPS Figure 6. Do not scale TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 11 Veefil. Figure 7. Top view Do not scale 1100 SAE Combo CHAdeMO Plug Range Plug Range WHEEL STOPS TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 12 Wall Wall 725 minimum 725 minimum Figure 8. All dimensions in mm Dimensions walls or obstacles Do not scale Contact Tritium for installation advice if your minimum measurements are smaller than shown in Figure 8. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 13 Figure 9. Do not scale Do not scale All dimensions shown in mm 700mm 27.5 inches Figure 10. Servicing distance requirement Figure 9. Back to back units TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 14: Installation Requirements & Equipment

    USA only: best done in dry weather or under cover Flexa system - see pg 7. to avoid moisture or debris ingress. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 15 Socket set & Ratchet or adjustable spanner Jointing Cement If Ethernet cable is required use: Worldwide (excluding USA): 20mm flexible conduit USA only: Flexa 3/4” conduit. DOCUMENT KEY: Items shown in orange are parts that require action for that step. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 16: Unpacking & Installation Preparation

    Remove/slide out all crate tubes to on the shipping baseplate. disassemble the cardboard crate. Do not use the plug holders to assist lifting the charger at any stage. Once upright remove all wrapping. Lifting Straps Shipping Baseplate TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 17 If your installation supplies power from pletely disengage the radiator from the an underground foundation remove the unit. Store in a safe place ensuring no radiator. damage to cooling hoses for later re-assembly. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 18: Fix To Ground & Feed Power

    (see pg 18, item 4) and store in a safe place until the unit is ready to close for use. 2. Remove fasteners from front panel Remove the 6x security screws and wash- ers from the front panel. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 19 The Service Hatch has an attached gasket. Ensure this is carefully stored to avoid damage or accumulation of debris. The wiring diagram is on the inside of the Service Hatch and also in this manual. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 20 Seal the con- duit into the conduit fitting with Jointing Cement so that no water or debris can enter. Use the slots in the rear left channel to cable tie the conduit in place if necessary. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 21 If there are more than two conduit hoses (possible Ethernet cable in conduit) place TAB 2 the largest at the base with the smaller feeding above. TAB 1 TAB 3 TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 22 Each icon will be lit in turn on the interface panel. Contact your supplier to run through the diagnostic testing to commission the unit. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 23: Wire & Commission. 1. Worldwide (Excluding Usa)

    All wires go through the first grey ferrite of the switch gear to avoid interference ring. with the service cover. Red, white and blue wiring goes through NOTE: Wire Neutral into the far right the black ferrite ring only. Neutral Terminator. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 24: Wire & Commission 2. Usa Only

    All wires go through the first grey ferrite Check that the wiring is sitting behind the ring. lower face of the switch gear so they will not interfere with the service cover. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 25: Closing Checklist

    3. Attach Service Hatch over Service Cover Sit the radiator panel on the base and against the metalwork, lining up the plas- tic holes with the bracket nutserts. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 26 It will hold in position. Secure with the ny- lon washers and security screws ensuring the plastic holes line up with the bracket nutserts. Do not over tighten. The Veefil fast charger is now ready for operation. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 27: Operating Instructions

    At any stage, returning the plug to the Veefil plug holder will end your charging session. Activation security Veefil has been designed to activate and secure your individual charging session TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 28 Veefil and the plug will be locked to the be returned to the plug holder. car. The Veefil will then proceed to ACTIVATION. 7. Not in Service Icon will light up when the charger is not TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 29 Should you wish to interrupt your charging session, touch your card to the ACTIVATION icon to unlock the interface, and press STOP. The APP or SMS may The Veefil is automatically set to MAX also have this functionality. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 30 LED’s and RETURN PLUG TO CHARGER ed. Return the plug to the highlight Veefil to reset. In case of emergency break the plastic and press the Emergency Stop Button to shut down and secure Veefil. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 31: Dc And Ac Charging Specifications

    Required equipment Lifting apparatus Crate and charger weigh 230kg, the Veefil fast charger alone weighs 205kg. Ensure lifting apparatus is sufficiently rated. Conduit 63mm flexible conduit TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 32: Model Tri93-50-02

    Veefil through the baseplate conduit hole as shown in Figure A and Figure B. When preparing the foundation, allow approximately 1500mm of conduit and wiring from the foundation surface as shown in Figure C. Figure B TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 33 Figure D. Figure D Leave at least 1500mm of conduit and wiring from the back left fixing point, for installation as shown in Figure E. Prior to installation the conduit and wiring will require trimming. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 34 Model TRI93-50-02 Figure F outlines the minimum spacial requirements for installation, operation and servicing. All measurements are taken from Veefil fixing holes. Wall Service Technician 1500 Wall Wall 1200 1000 Veefil Front Service Technician Figure F TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 35: Unpacking & Installation Preparation

    Unscrew the 4x security screws and remove them and the washers from both radiator panels using the 5mm Pin Hex bit. Pull the radiator panels away from the metalwork frame to remove. FRONT VIEW REAR VIEW TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 36: Fix To Ground And Feed Power

    Seal the conduit into the Seal the conduit into the fitting with fitting with Jointing Cement so that no Jointing Cement. water or debris can enter. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 37 TAB 2 TAB 1 TAB 3 4. Replace rear radiator Replace the rear radiator panel with washers and security screws. Ensure the conduit fits in the cut out and the four fixing screws easily engage. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 38 Connect as shown in this wiring diagram. Finally close and lock the door to secure Use Copper Conductors only. the Veefil ready for use. Contact your supplier to run through the diagnostic testing to commission the unit. TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 39: Operating Instructions

    4. Start Push to start the charging session. 5. Stop Push to stop the charging session. 6. Return Plug to Charger Icon flashes to indicate that the charging TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...
  • Page 40: Maintenance Instructions - All Models

    6. Charging Plugs Check the plugs for accumulation of debris and inspect the contact pins for corrosion. If corrosion is present contact your supplier. 7. Radiator Regularly check the radiator. Gently hose TRI93.134.5 www.tritium.com.au  V eefil®isaregisteredtrademarkofTritiumPtyLtd.©2015TritiumPtyLtd...

This manual is also suitable for:

Veefil tri93-50-01-usVeefil tri93-50-02
