Coltech HK-LB644A Quick Start Manual

30 W LED Floodlight
Art.no 36-6508 Model HK-LB644A
36-6509 HK-LB644A
Please read the entire instruction manual before using the product and then
save it for future reference. We reserve the right for any errors in text or images
and any necessary changes made to technical data. If you have any questions
concerning technical problems please contact our Customer Services.

Safety

• The LEDs in this floodlight have a very intensive light output. Do not let
children play with the floodlight. Do not look directly into the light or direct
the light into another person's eyes, doing so could cause eye damage.
• Do not touch the housing or glass of the floodlight when it is switched on –
risk of burn injury.
• Do not install the floodlight near flammable materials or surfaces.
• Do not cover the floodlight.
• Do not dismantle or modify the floodlight.
• The floodlight is suitable for use in temperatures between −20 and +50 °C.
• The floodlight must only be used with a 230 V supply with a protective earth.
• Any fault or damage must be repaired immediately by a qualified electrician
before the floodlight is used.
• Do not use the floodlight near combustible or explosive liquids, solids or gases.
• Treat the light with care and do not subject it to shocks or impacts.
• The floodlight must not be immersed in water or other liquid.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or qualified persons in order to avoid a hazard.
The light source contained in this luminaire shall only
be replaced by the manufacturer or his service agent
or a similar qualified person.

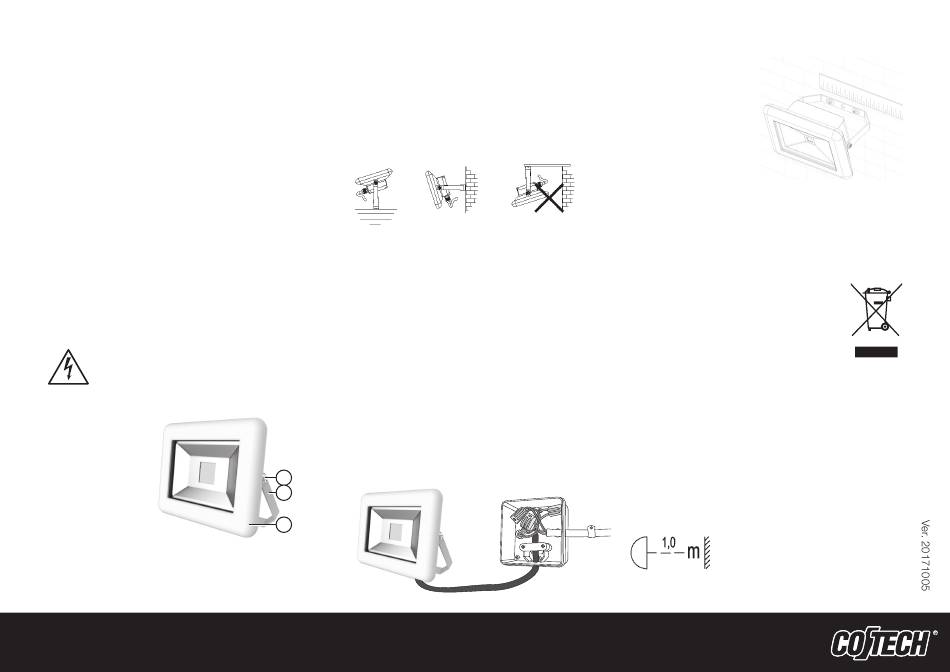

Product description

1. Locking screws
2. Wall bracket
3. Lamp housing

Placement

• The floodlight is approved for outdoor use.
• The floodlight must not be used in explosive environments or close to chemicals.
GREAT BRITAIN • CUSTOMER SERVICE tel. 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
• The floodlight may be mounted on plasterboard, wooden or brick walls.
It must not be mounted on walls made of or coated with flammable materials
such as polystyrene or plastic. Do not install the floodlight on damp surfaces
or conductive metal surfaces.
• The floodlight must not be placed close to flammable material.
• Ensure that the floodlight is installed in such a way that air is free to circulate
around it.
• Make sure that the place on the wall where you have chosen to mount
the floodlight is free from hidden electrical conduit or plumbing before drilling
any holes.
Installation
• Important: Read the entire instruction manual before installation.
The installation should be carried out by a qualified electrician and conform
to current regulations.
• Warning: Make sure that the power is turned off and that the fuse is
removed before beginning any installation or service.
• The floodlight must only be connected to a 230 V, 50 Hz power supply.
• Warning: Make sure that the chosen wall mounting area is free from
electrical conduit or plumbing.
1. The floodlight is intended for fixed installation and should be connected to
a circuit protected by a safety device such residual current circuit breaker
(RCCB/RCD).
2. Mark out the position of the mounting holes on the wall using the wall
bracket (2) as a template. Drill holes for the mounting screws. Use suitable
screws (and wall plugs if necessary). The floodlight must be fixed securely.
3. Screw the floodlight onto the wall bracket.
4. The floodlight has 50 cm connection cable. It should be connected to
a watertight connection box (sold separately) with a strain relief (as pictured).
5. Use the connection box as a template to mark out the position of
the mounting holes. Make sure that the mounting surface is flat. Drill holes
for the mounting screws. Use suitable screws (and wall plugs if necessary).
6. Connect the three wires: L Live (brown), N Neutral (blue) and Protective Earth
(green/yellow).
1
2
3
7. Tilt the lamp housing to
the desired angle and tighten
the locking screws (1).

Care and maintenance

• Disconnect (isolate) the floodlight from the power supply and allow it to cool
before cleaning.
• Clean the light using a soft, damp cloth. Use a mild detergent. Never use
solvents or strong, abrasive cleaning agents.

Responsible disposal

This symbol indicates that this product should not be disposed
of with general household waste. This applies throughout
the entire EU. In order to prevent any harm to the environment
or health hazards caused by incorrect waste disposal,
the product must be handed in for recycling so that the material
can be disposed of in a responsible manner. When recycling
your product, take it to your local collection facility or contact
the place of purchase. They will ensure that the product is
disposed of in an environmentally sound manner.

Specifications

Voltage 220–240 V, 50 Hz
Power 30 W
Light source COB/Bridgelux LED (non replaceable)
Luminous flux 3000 lm
Colour temperature 4000 K
Colour rendition > 80 Ra
Beam angle 120°
Ingress protection IP65
Protection class Class 1 (this light fitting must be earthed)
Size 175 × 164 × 65 mm
