GRILL & FAN BLADE ASSEMBLY

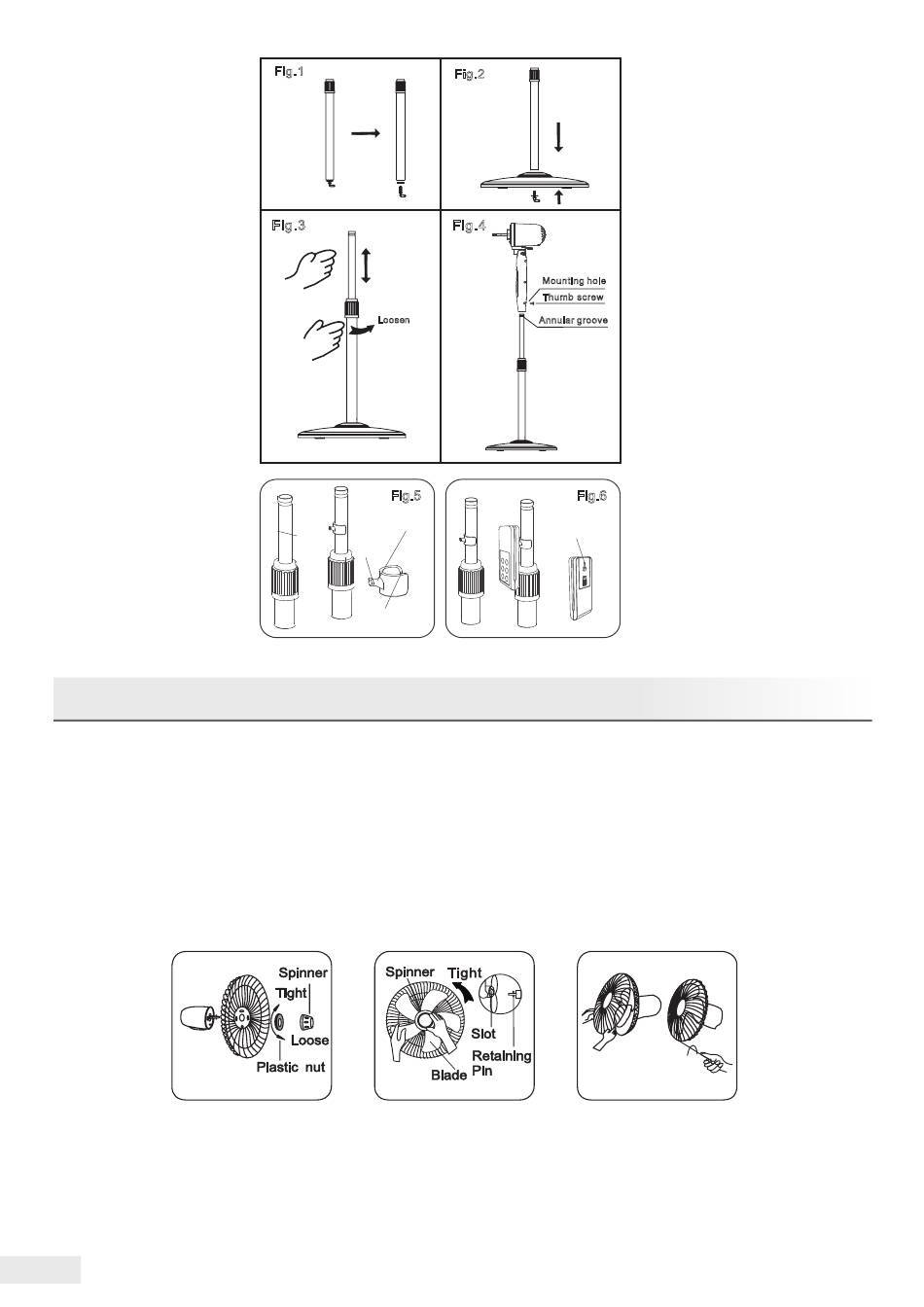

1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut
counterclockwise to remove both of them. Fix the rear grill to the motor housing, then tighten
the plastic nut again. (Fig.7)
2. Insert the fan blade into the motor shaft, and make sure the retaining pin on the motor shaft
is fitted into the slot of the fan blade. Turn the spinner counterclockwise to tighten the blade.
(Fig.8)
3. Fasten the front grill and the rear grill by the grill clip and then tighten the fan grill locking screw
and nut. (Fig.9)
Fig.7
6
ΕΝ
Fig.1
F ig.3
Loose e n
Fig.5
Straight face
Internal
Pole
Hook
Opening
Fig.8
Fig.2
Fig.4
Mounting hole
Thumb screw
Annular groove
Fig.6
Hook hole
Fig.9
