Seruniaudio SEM-01 User Manual

Available languages

Download this manual

Tipe Transduser

: Mikrofon Kondenser Elektret

: Omni-directional

Pola Kutub

Tanggapan Frekuensi

: 20- 20.000 Hz

Impedansi

: 300 Ohm

Maksimal SPL

: 102 dB

Sensitiﬁtas

: 58 dBA

S/N Ratio

: -42 ±3dB@f=1KHz,1Pa

Konektor

: Gold Plated XLR

Tegangan Penyokong

: +48V Phantom Power

Dimensi

: Panjang 1250 mm, Ø 20 mm

Kabel

: Panjang 250 cm, Ø 2 mm

Berat

: 300 gram (termasuk kabel)

Diameter Kapsul

: 6 mm

Need help?

Do you have a question about the SEM-01 and is the answer not in the manual?

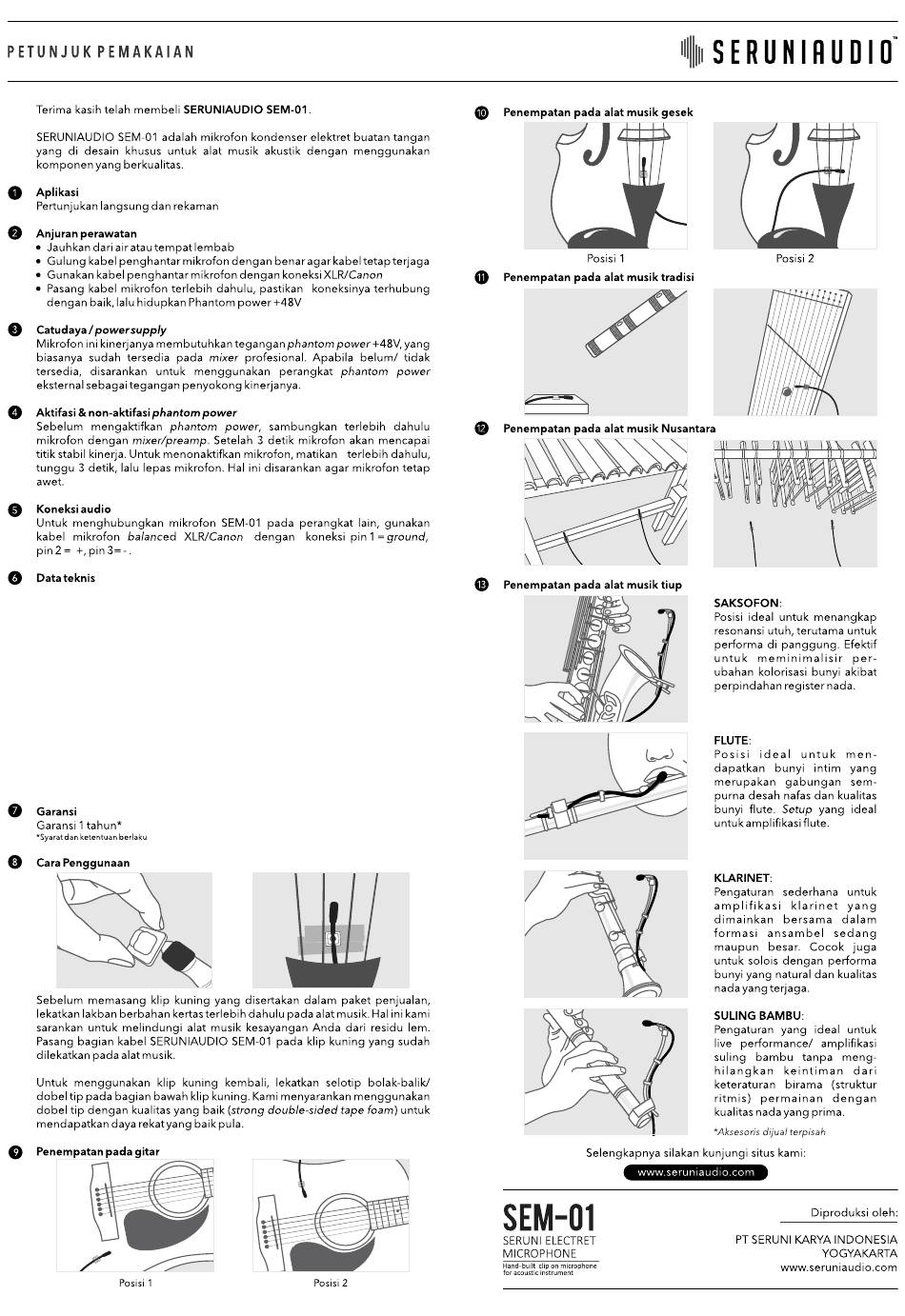

Page 1 Tipe Transduser : Mikrofon Kondenser Elektret : Omni-directional Pola Kutub Tanggapan Frekuensi : 20- 20.000 Hz Impedansi : 300 Ohm Maksimal SPL : 102 dB Sensitiﬁtas : 58 dBA S/N Ratio : -42 ±3dB@f=1KHz,1Pa Konektor : Gold Plated XLR Tegangan Penyokong : +48V Phantom Power Dimensi : Panjang 1250 mm, Ø...
Page 2 Transducer Type : Electret Condenser Microphone Polar Pattern : Omni-directional Frequency Response : 20- 20.000 Hz Impedance : 300 Ohms Max. SPL : 102 dB : 58 dBA Sensitivity S/N Ratio : -42 ±3dB@f=1KHz,1Pa Output Connector : Gold Plated XLR Power Supply : +48V Phantom Power Dimension...
