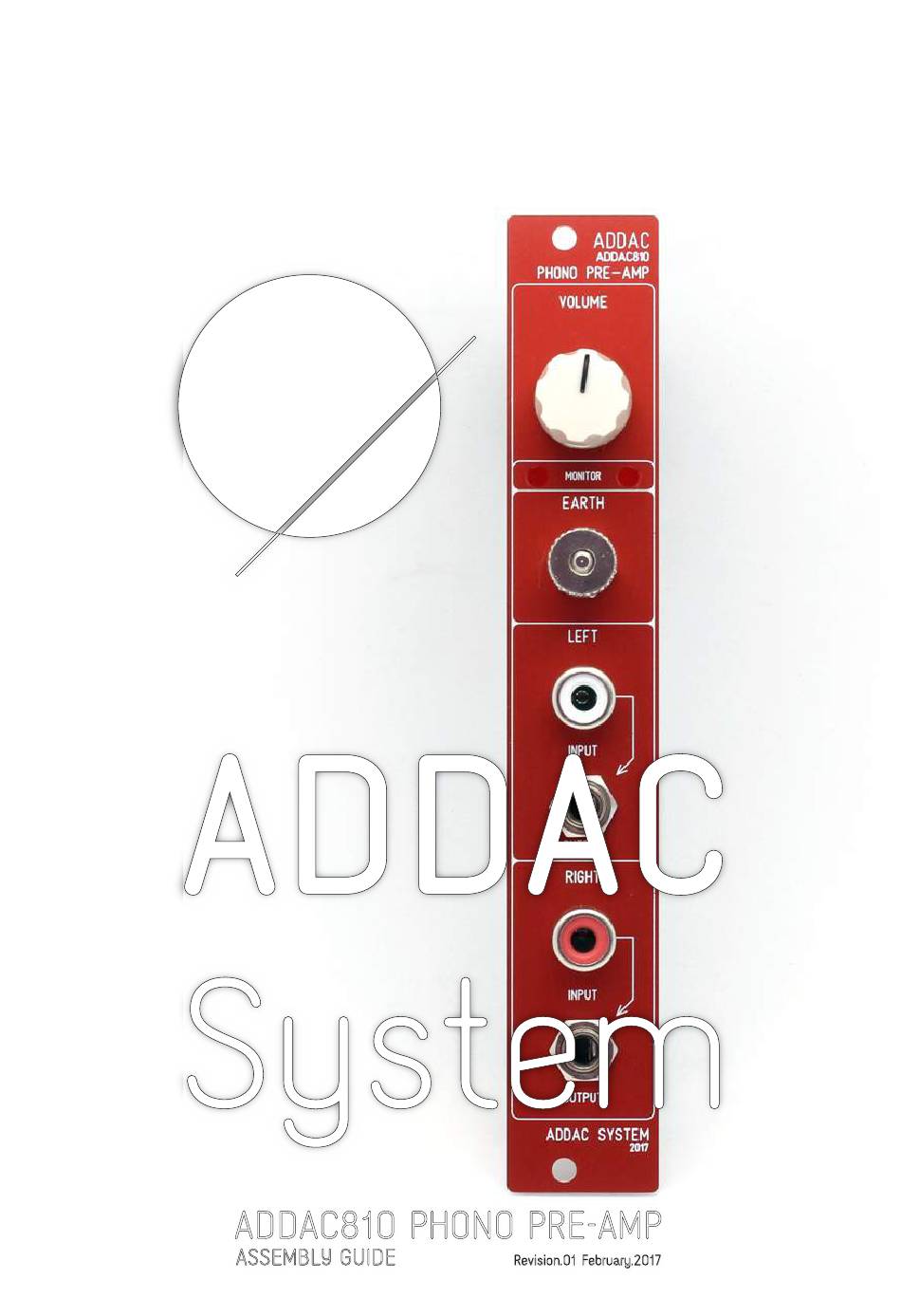

Summary of Contents for ADDAC System ADDAC810
- Page 2 ADDAC810 Assembly Guide February.2017 Unpack and separate all kit parts ADDAC SYSTEM page 2...
- Page 3 ADDAC810 Assembly Guide : Prepare panel Locate the front panel, earth connector and short wire. Strip about 1cm of of the wire, place the earth connector on the panel wrapped the stripped wire around the connector and use the washer and nut to hold it against the panel.
- Page 4 ADDAC810 Assembly Guide : Front pcb and panel Locate the front pcb Locate the front pcb and the female headers, solder both at each end of the pcb Turn the pcb around and place the pot, 2 leds, 2 rca connectors and 2 jacks Insert the front panel and screw the pot and jack nuts You can now solder all parts to the pcb.
- Page 5 ADDAC810 Assembly Guide : Front pcb and panel After soldering all parts, strip the loose end of the short wire insert and solder it to the pcb Earth hole Insert 2 of the 6mm screws and tight them to the spacers...
- Page 6 ADDAC810 Assembly Guide : Back pcb and final steps Pick the back pcb, place and solder the male headers to each end of the pcb Place the IDC power connector in the back of the pcb and solder it Attach both pcbs and place the last 2 screws to fix both pcbs together Attach the Knob to the potentiometer shaft and you’re done!
-
Page 7: Assembly Guide
For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC810 ASSEMBLY GUIDE Revision.01 February.2017...
