Brenton Electric Fireplace
Product No. 064-4013-4
Model No. SP5719
Assembly Instructions
Toll free: 1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep
this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brenton SP5719 and is the answer not in the manual?

Questions and answers

Summary of Contents for for Living Brenton SP5719

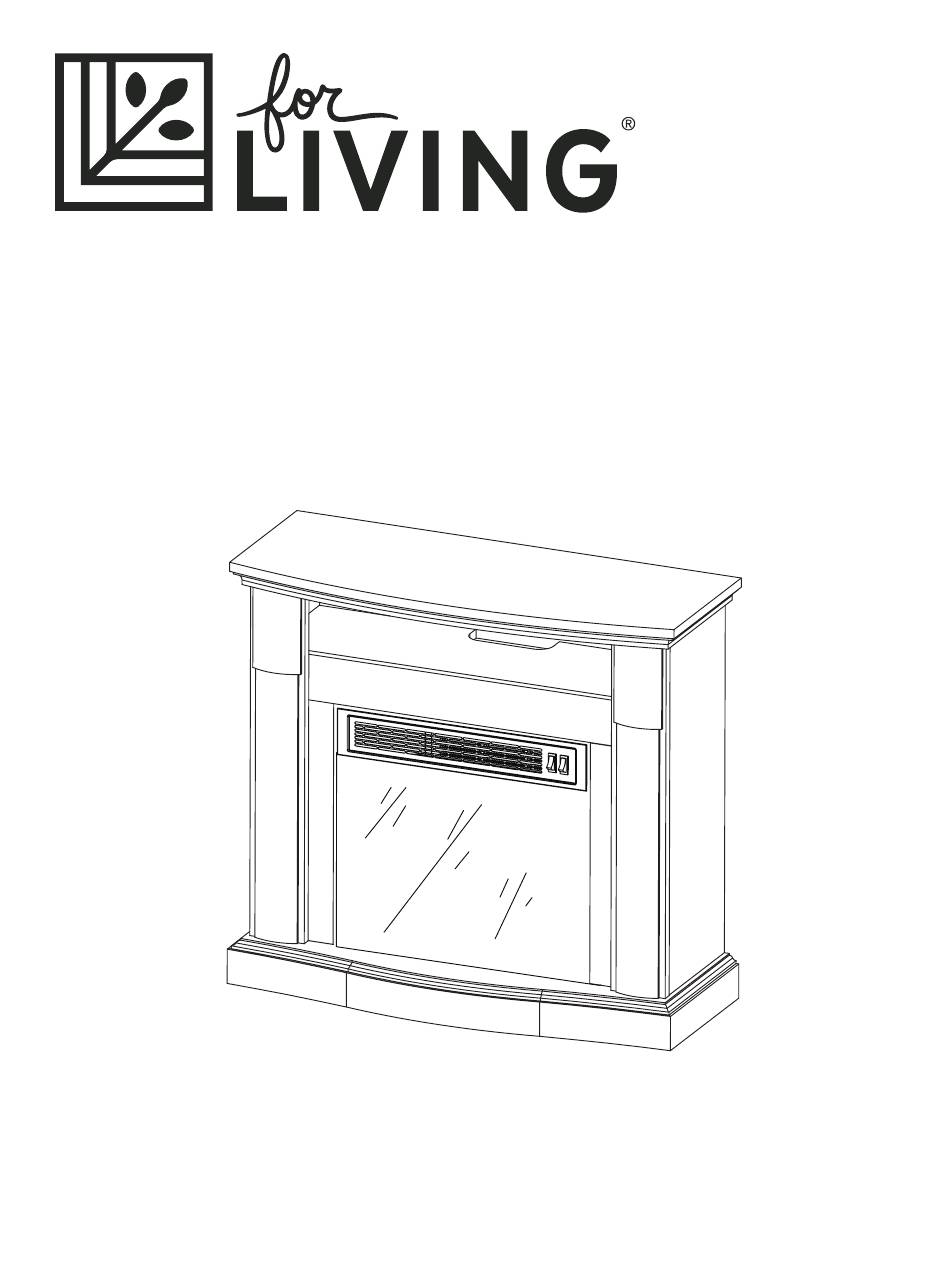

  • Page 1 Brenton Electric Fireplace Product No. 064-4013-4 Model No. SP5719 Assembly Instructions Toll free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
  • Page 2 Made in China Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
  • Page 3 Table of Contents Important Safety Instructions Parts List Assembly Operating Instructions Cleaning and Maintenance Troubleshooting Guide Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and operating this fireplace. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before installing or using the fireplace.
  • Page 4 Product No. 064-4013-4 • Model No. SP5719 Use this appliance only as described in the manual. Any other use is NOT recommended by the manufacturer and may cause fire, electric shock or injury to persons. CAUTION! • If possible, ALWAYS unplug this appliance when not in use. •...
  • Page 5: Electrical Specifications

    Electrical Specifications Voltage 120 V AC, 60 Hz Amps 11.7 A Watts 1400 W Electric Connection • A 15 A, 120 V, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace should be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation.
  • Page 6 Product No. 064-4013-4 • Model No. SP5719 Wooden Dowel - 4 + (1) Base - 1 Bolt - 38 + (4) Front Left Panel - 1 Screw - 10 + (1) Front Right Panel - 1 Plastic joint - 19 Left Panel - 1 Hex Key - 1 Right Panel - 1...
  • Page 7 Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-877-483-6759 If you have questions regarding your product, require warranty assistance, or have damaged or missing parts, please call our customer service toll-free helpline. Contact us for assistance, we’re here to help.
  • Page 8 Product No. 064-4013-4 • Model No. SP5719 Step 1 Requires C, E, BB, EE Attach front right panel C to right panel E with plastic joints EE and bolts BB, then secure two plastic joints EE into front right panel C and other two plastic joints EE into right panel E by bolts BB as shown. Not actual size Step 2 Requires B, D, BB, EE...
  • Page 9 Step 3 Requires G, H, BB, EE Attach insert top trim panel G to media shelf H with plastic joints EE and bolts BB, then secure two plastic joints EE into media shelf H by bolts BB as shown. Not actual size Step 4 Requires E, D, BB Place assembly from Step 1 &...
  • Page 10 Product No. 064-4013-4 • Model No. SP5719 Step 5 Requires A, F, AA Insert two wooden dowels AA into the holes on base A. Attach insert side trim panel F into base A. Not actual size...
  • Page 11 Step 6 Requires D, E, F, H, AA, BB Insert two wooden dowels AA into the holes on insert side trim F. Carefully position the media shelf H into place between the the left panel D and right panel E. Secure each side with one bolt BB. Not actual size...
  • Page 12 Product No. 064-4013-4 • Model No. SP5719 Step 7 Requires J, BB Attach top panel J, secure with four bolts BB. Not actual size Step 8 Requires F, G, CC, JJ Using three screws JJ to secure each insert side trim panel F, and using two screws JJ to secure insert top trim panel G.
  • Page 13 Step 9 Requires I, CC From behind the assembly, attach back panel I using screws CC. Not actual size...
  • Page 14 Product No. 064-4013-4 • Model No. SP5719 Step 10 Unscrew and take out the bracket at insert side trim panels F, put the insert in place. Step 11 Install back the bracket as shown for secure the insert.
  • Page 15 Step 12 Requires KK, LL, MM, NN, OO Drill two holes into the wall and insert wall anchor OO. Then install the safety mounting tape KK on top rear of mantel using washer NN and screw MM. Attach opposite end of the safety mounting tape KK using washer NN and screw LL fastened into wall anchor OO.
  • Page 16 Product No. 064-4013-4 • Model No. SP5719 Step 13 Warning! For use with televisions weighing 50 lbs (22.68 Kg) or less. Use with heavier televisions may cause instability and/or tip over resulting in death or serious injury. 30” (76 cm) Max.
  • Page 17 Insert Model#: 1816C-HE TO ACCESS CONTROL PANEL • Control panel can be accessed at upper right corner of insert. POWER • Press this switch for main power and flame effect. The indicator light will turn on. HEATER • The HEATER switch turns the heater ON and OFF.
  • Page 18 Product No. 064-4013-4 • Model No. SP5719 • Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater. • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.
  • Page 19 PROBLEM POSSIBLE CAUSE SOLUTION No power. Logs The unit does not have Check that unit is plugged into a standard 120 V do not glow. power. outlet. Then make sure power is set at “ON” position. This is normal for a heater appliance as it requires more current to operate.
  • Page 20 Product No. 064-4013-4 • Model No. SP5719 This For Living™ product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear...
