Summary of Contents for Folio ZERO Series

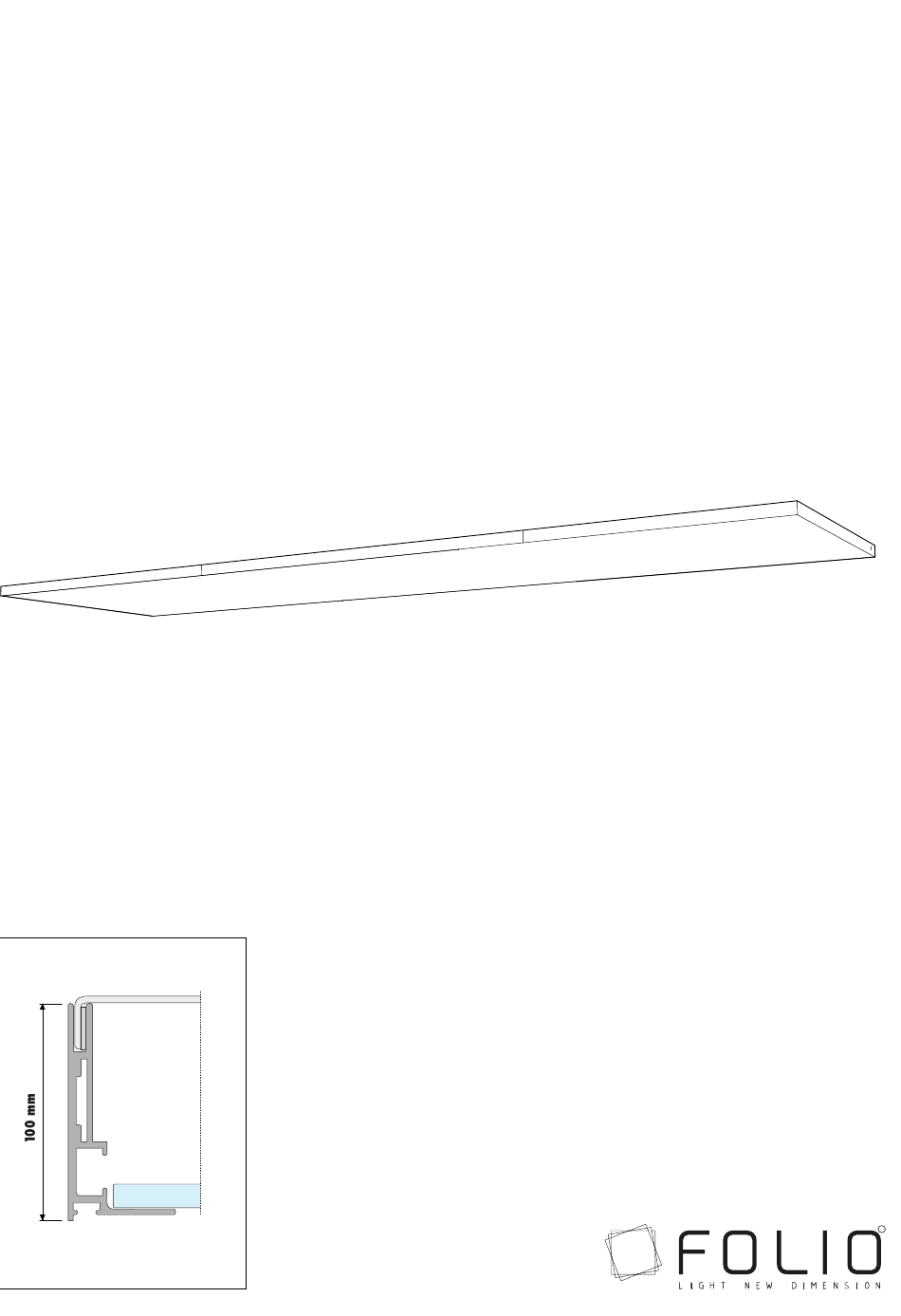

  • Page 1 ZERO U S E R M A N U A L ceiling...
  • Page 2 Inside the crate you will find: - 3 aluminum modules (A,B,C) - Folio lighting panels (D,E,F,G) - Pearl sheet (H) - Connecting cables (i,L,m,n) - Ø 5 mm screws...
  • Page 3 Pilot holes for LED panel fixing Ø 5 mm Ø 20 mm Pilot holes for ceiling/wall mounting Threaded pins for fixing of the panels In the picture are represented the parts seen from above with the indication of the pilot holes present on the modules and panels...
  • Page 4 Position the module (A) and fix it to the ceiling using the pilot holes (Ø20 mm). N.B. Ceiling in different material require different fixing accessories. Choose the most suitable accessory.
  • Page 5 After fixing the module (A), position the module (B) and fix it to the ceiling using the pilot holes (Ø20 mm).
  • Page 6 After fixing the module (B), position the module (C) and fix it to the ceiling using the pilot holes (Ø20 mm).
  • Page 7 After fixing all the modules; insert cable (i) inside the final hole and make it run through the specific holes until module (A). N.B. Insert the cable from the female connector side...
  • Page 8 Ø 5 mm After connecting the panel to the cable, position and screw element (D) to the ceiling module using the provided screws (Ø5 mm). N.B. Do not force the screws.
  • Page 9 Connect cable (L) with the panel cable (E). N.B. Insert the connectors keeping into consideration the colors and so their polarity.
  • Page 10 Ø 5 mm After connecting the panel to the cable, position and screw element (E) to the ceiling module using the provided screws (Ø5 mm). N.B. Do not force the screws.
  • Page 11 Repeat step 8 also for the other cables (L ,m,n) inserting them in the provided holes and making them come out as per the picture.
  • Page 12 Connect the first cable (i) with the cable of the first panel (D). N.B. Insert the connectors keeping into consideration the colors and so their polarity.
  • Page 13 Connect cable (m) with the panel cable (F). N.B. Insert the connectors keeping into consideration the colors and so their polarity.
  • Page 14 Ø 5 mm After connecting the panel to the cable, position and screw element (F) to the ceiling module using the provided screws (Ø5 mm). N.B. Do not force the screws.
  • Page 15 Connect cable (n) with the panel cable (G). N.B. Insert the connectors keeping into consideration the colors and so their polarity.
  • Page 16 Ø 5 mm After connecting the panel to the cable, position and screw element (G) to the ceiling module using the provided screws (Ø5 mm). N.B. Do not force the screws.
  • Page 17 After connecting and fixing all the panels as shown in the picture, carefully unroll the sheet avoiding possible scratches or blotches.
  • Page 18 Position the sheet upside-down (with the possible print facing down) and connect it to the ceiling structure.
  • Page 19 As shown in the picture insert the sheet’s gasket in its seat. N.B. Repeat the same action for all the sides of the sheet.
