PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Sales territory
Voltage:
Power:
Variable speed:
Oscillating angle:
Weight:

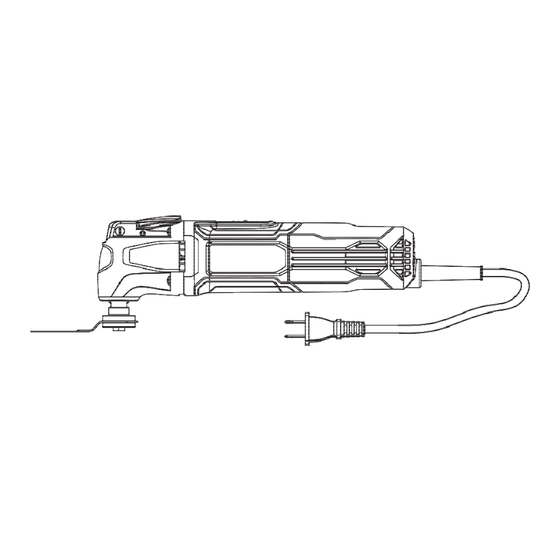

Oscillating Multi Tool
North America
120 V, 60 Hz AC
0,
2.4 A
11,000–21
000 RPM (no load)
000 RPM (no load)
3.2°
3.70 lbs. (1.68 kg)
Multi Tool
JD2545U-K
JD2545U
86225-1
Instruction Manual
Instruction Manual
and Warranty Card
and Warranty Card

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 86225-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FastCraft 86225-1

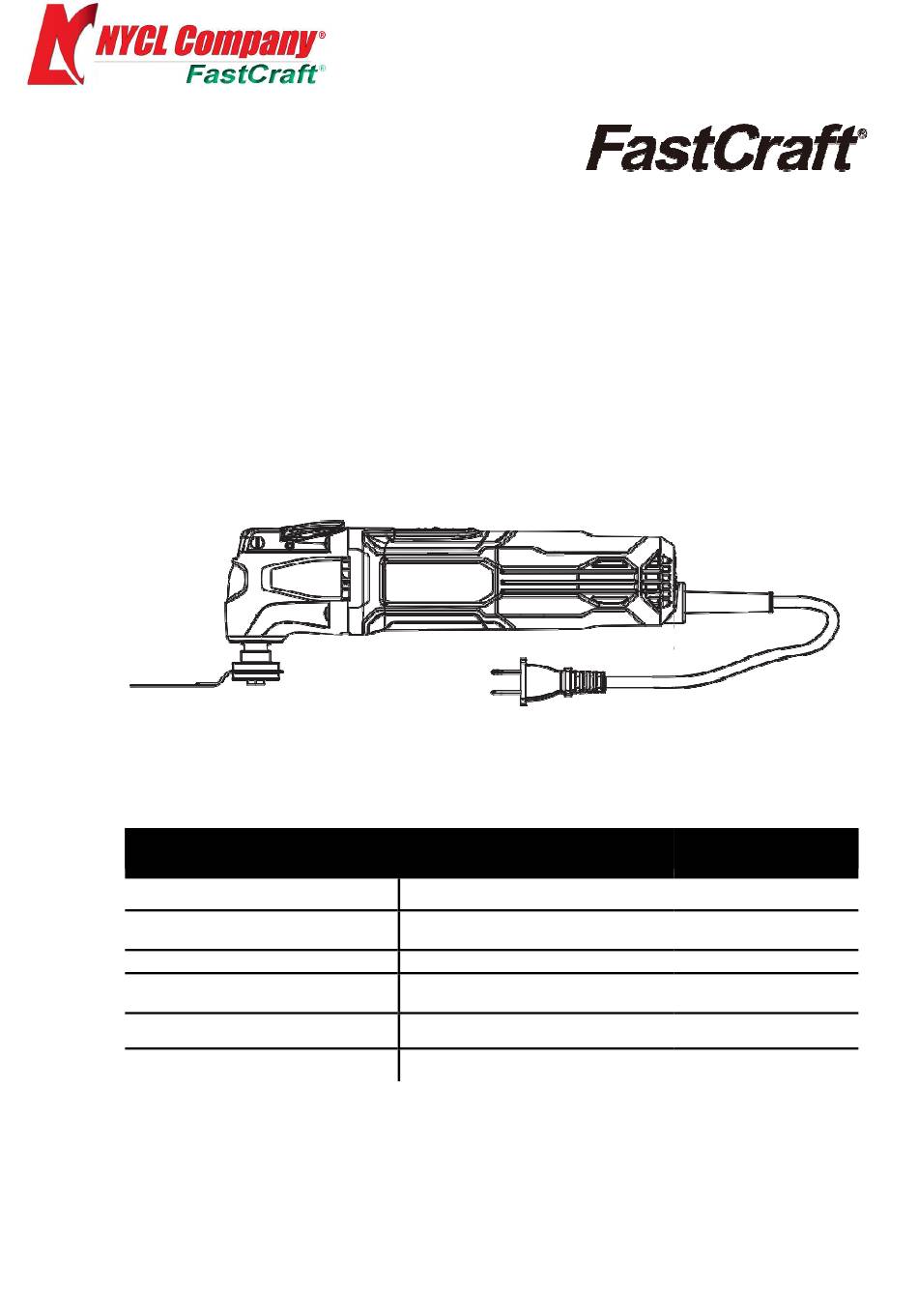

  • Page 1 Oscillating Multi Tool Multi Tool JD2545U JD2545U-K 86225-1 Instruction Manual Instruction Manual and Warranty Card and Warranty Card PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS Sales territory North America Voltage: 120 V, 60 Hz AC Power: 2.4 A Variable speed: 11,000–21 000 RPM (no load)

  • Page 2: Eye, Ear & Lung Protection

    GENERAL SAFETY WARNINGS WARNINGS WARNING: Before using this tool or any of its accessories, read this Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations.

  • Page 3: Power Tool Safety

    POWER TOOL SAFETY WARNING: If operating a power tool in a damp Read all safety warnings location is unavoidable, use a residual and instructions. Failure to follow the current device (RCD) protected supply. warnings and instructions may result in Use of a ground fault circuit interrupter (GFCI) electric shock, fire and/or serious injury.
  • Page 4 POWER TOOL SAFETY Hold power tool by insulated gripping PERSONAL SAFETY – cont’d surfaces when performing an operation Power tool use and care where the cutting tool may contact hidden wiring or its own cord. Contact with a Do not force the power tool. Use the "live"...

  • Page 5: Extension Cord Safety

    EXTENSION CORD SAFETY WARNING: WARNING: Keep the extension cord Repair or replace clear of the working area. Position the cord damaged or worn extension cords so it will not get caught on the work piece, immediately. tools or any other obstructions while you are Select the appropriate extension cord working with the power tool.
  • Page 6 This symbol designates that this tool is listed with U.S. requirements by Underwriters Laboratories. with U.S. requirements by Underwriters Laboratories. Conforms to UL Std. 62841-1:2015 Ed.1 60745-1, 60745 60745-2-4. 1:2015 Ed.1 Certified to CAN/CSA Std.C22.2 N Certified to CAN/CSA Std.C22.2 N 60745-2-4 62841-2-4:2015 Ed.1 86225-1...

  • Page 7: Specific Safety Rules

    SPECIFIC SAFETY RULES Secure work-piece. Use clamps or a vice to WARNING: Know your oscillating tool. Do hold the work-piece. It is safer than using your not plug the tool into the power source until hand and it frees both hands to operate the you have read and understand this Instruction tool.
  • Page 8 SAVE THESE INSTRUCTIONS FOR REFERENCE...

  • Page 9: Know Your Oscillating-Tool

    KNOW YOUR OSCILLATING-TOOL ON/OFF Holder release lever switch Speed control wheel Air vents Open back accessory holder...

  • Page 10: Assembly And Operating

    ASSEMBLY AND OPERATING OPERATING Lift the tool less accessory holder release Lift the tool less accessory holder release NOTE: The drawings in the assembly and lever (4) up and toward the front lever (4) up and toward the front of the tool operating section of this manual may differ as far as it will go (5) (Fig.

  • Page 11: Installing Sandpaper

    ASSEMBLY AND OPERATING OPERATING Installing closed back accessories NOTES: – cont’d a) Place the sandpaper so so the holes in the sandpaper line up with the matching holes in sandpaper line up with the matching holes in the Place the inner accessory washer (1) onto hook &...

  • Page 12: Speed Control Wheel

    ASSEMBLY AND OPERATING ON/OFF SWITCH – cont’d Fig. 7 Fig. 6 SPEED CONTROL WHEEL Project Accessory Speed The speed of the tool can be adjusted to run the Balsa wood Wood blade tool at speeds varying between 1 ,000 OPM and 2 ,000 OPM by rotating the speed control Drywall...
  • Page 13 ASSEMBLY AND OPERATING OPERATING Place the tool with the saw blade (3) lightly Place the tool with the saw blade (3) lightly touching the surface touching the surface of the tile and the WARNING cutting teeth NOT touching the surface to cutting teeth NOT touching the surface to be cut.

  • Page 14: Cutting A Hole In Wood Flooring To Install A Heating Vent

    ASSEMBLY AND OPERATING CUTTING A HOLE IN WOOD FLOORING TO NOTE: Do NOT use the saw blade to pry the INSTALL A HEATING VENT cut-out from the floor. You will break the blade. If the cut-out is not easy to pry from the floor, The oscillating tool can be used to cut a hole in check to make sure each line is cut completely wood flooring for installing a heating vent.
  • Page 15 ASSEMBLY AND OPERATING CUTTING A HOLE IN DRYWALL FOR INSTALLING AN ELECTRICAL OUTLET BOX – cont’d Place the corner edge of the saw blade (2) near the drywall in the middle of one of the cutting lines. Set the speed to the highest speed (Fig. 7 on Page 11).

  • Page 16: Using The Detail Sander Attachment

    ASSEMBLY AND OPERATING USING THE DETAIL SANDER ATTACHMENT Install the sanding pad on the oscillating tool (Fig. 1 & 2 on Pages 9 & 10) Install the sandpaper on the sanding pad (Fig. 4 on Page 10). Set the speed control wheel between #5 and MAX (Fig.

  • Page 17: Maintenance

    MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

  • Page 18: Warranty Card

    WARRANTY CARD ® FastCraft OSCILLATING TOOL WARRANTY send email to warranty@nycl.us. SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM. ® Distributed by: NYCL Company Oscillating Multi Tool JD2545U-K Model #: 86225-1...
