Nera WorldCommunicator Quick Start

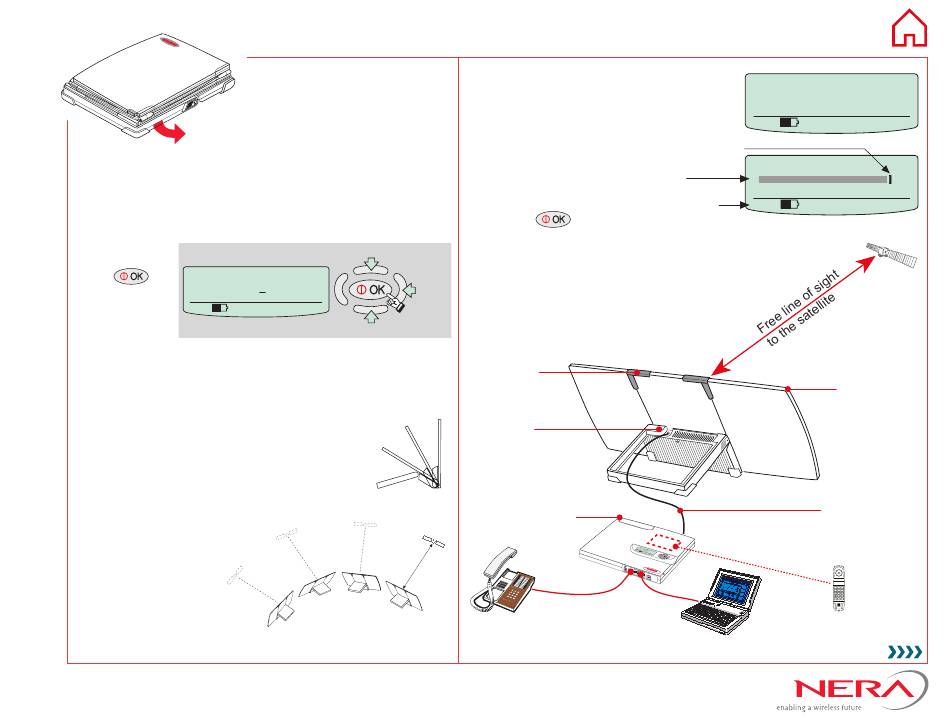

Setting up
1
Open the WorldCommunicator by swinging
down the Modem Unit.
2
Unfold the antenna. Use storm locks if necessary.
3
Press and
hold for
WorldCommunicator
Phone PIN : 0
2 secs.
0
4
PIN code:
use multi-
buttons as indicated (default code: 1 2 3 4).
5
Check antenna cable connections.
6
The four satellites are positioned
stationary above equator, see map in
"Getting Started" or on CD. To find the
correct vertical angle to the satellite,
try with 60°, 30° or 0° as indicated.
7
Aim the antenna
towards the esti-
mated position of
the satellite with
free line of sight,
or make a slow scan
across the hemi-
sphere. If necessary, use the compass.
