TP active fun FoldAway TP913 Instructions For Assembly Maintenance And Use

WARNINGS
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.
THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS
UNTIL FULLY ASSEMBLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.
WARNING: ONLY FOR DOMESTIC USE. FOR INDOOR AND OUTDOOR USE ONLY.
ADULT SUPERVISION IS REQUIRED.
WARNING: THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 6 MONTHS - 3 YEARS.
WARNING: MAXIMUM USER WEIGHT 45KGS
MADE IN CHINA
Contents
TP913
FoldAway
Swing Seat
x1
All about your New TP Swing Seats

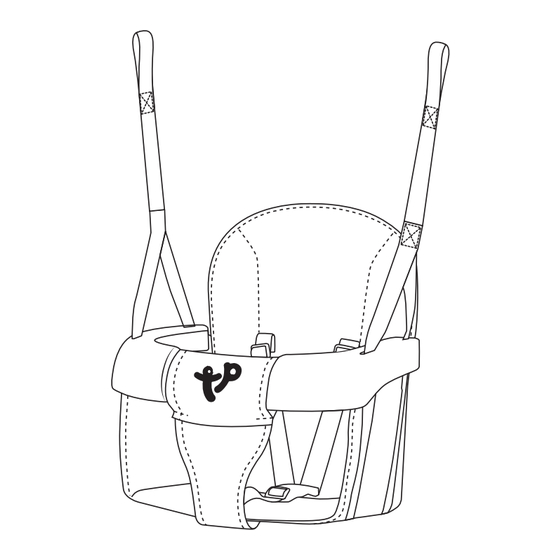

TP913 FoldAway
Swing Seat
The TP FoldAway Swing
Seat can be used at both
low and full height.
Before you use your TP
FoldAway Swing Seat
please read the safety
information carefully and
follow its advice at all times.
Safety Harness
The safety harness must be used
at all times to secure the child into
the Folding Swing Seat.
Stage
Important Safety Information for your new TP FoldAway Swing Seat
1
How to seat your child safely in their TP FoldAway Swing Seat
1
Always ensure that the
safety harness is fitted as
shown right.
The safety harness must
be used at all times to
secure the child into the
Folding Swing Seat.
Stage
Attaching your swing seat to the frame
2
Unfolding the Swing Seat
A1 A2
Pull the seat base
downwards
Top Karabiner
with Nylon Bush
FC9908
x2
Bottom Karabiner
WF9787
x2
Extension Straps
FB9030
x2
FC9908 x2
Top Karabiner with Nylon Bush.
The top karabiners should always be
used to attach the seat to the frame.
FB9030 x2
Extension Straps.
Used to suspend Swing seats on full
height frame.
WF9787 x2
Bottom Karabiner
Used to connect the seat to the
extension straps.
TP913/TP913A x1
FoldAway Swing Seat
Includes safety Harness.
Seat Frame
2 3
Important! Check frame attachment
Before use, please ensure that the sides of the seat
are fully inserted to the frame. The sides are snap fit
so press firmly to fit.
B1
TP913
FoldAway Swing
Seat
INSTRUCTIONS FOR ASSEMBLY MAINTENANCE AND USE.
PLEASE RETAIN FOR FUTURE REFERENCE.
Important!
These instructions must be followed for safe assembly and use.
Please retain for future reference.
Bolt Tightening Guide
INSTRUCTIONS FOR ASSEMBLY, MAINTENANCE AND USE OF TP TOYS -
Please read carefully and keep all enclosed information for future reference.
1. ASSEMBLY AND SAFETY INFORMATION
TP toys must be assembled by an adult. They must be erected exactly in accordance with the assembly instructions.
Enlisting the aid of a helper will make assembly easier. In order to ensure the correct tensions and to ease assembly, it is
important to assemble the product hand tight to begin with. Only when complete, should the fastenings be fully tightened
and checked. This pack may contain small parts and is not suitable for children under 36 months until fully assembled.
We recommend that you place small parts on a tray, or something similar, to prevent the frustration and disappointment
of mislaying them. Please take care during assembly as the manufacturing process can sometimes result in the
occasional sharp edge and small pieces of waste metalwork.
Should there be any missing parts, the toy must not be used until replacement parts have been fitted.
2. SITING
Under no circumstances should any of our toys be positioned on a hard surface such as concrete or asphalt, unless
the ground under the toy plus the recommended freespace area is covered with a safety surface. Examples of suitable
surfaces are grass, sand or a play surface intended for this use. TP toys should be sited on level ground.
3. USAGE
TP toys are designed and made for use only by children aged between 6 months and 3 years, unless otherwise stated,
and must not be used by anybody else. Misuse can result in injury. TP tents must not be walked or climbed upon.
"Warning only for Domestic use." For indoor and outdoor use only.
4. SUPERVISION
Children should always be supervised while they are playing on TP toys and should be instructed not to use the toy in an
inappropriate or hazardous manner. We recommend that they do not wear loose-fitting clothing or jewellery that may
catch or snag during play. Children should not wear cycle helmets while playing on TP toys. Whilst using this swing seat
children must have constant adult supervision.
5. WEATHER CONDITIONS
Special care should be taken as weather conditions change. In particular, outdoor toys can become slippery in wet
weather and tongues and lips can stick to metalwork at subzero temperatures. In warmer and sunnier weather, parts
can become hot, and the temperature should be regularly checked during play, especially metal parts and slides. If there
is any doubt over safety then the toys should not be used. If high wind is expected or forecasted, please ensure that the
outdoor toys are either moved to a sheltered position or well secured to the ground or other immoveable object. Please
store plastic swing accessories indoors if temperature falls below 40˚F (4˚C).
6. MAINTENANCE
With all toys it is vital that the equipment is checked regularly and often by an adult. The complete toy should be checked
at least once a month, and particular attention should be paid to connections and fastenings. If any parts exhibit
signs of wear and tear, they may need to be replaced. Replace defective parts in accordance with the manufacturer's
instructions." Checks must be carried out at the beginning of the usage season as well as at regular intervals throughout
the usage season. Check all nuts and bolts for tightness and tighten when required. Failure to do this may result in
the product malfunctioning and causing injury. Children must not be allowed to use the toy until properly installed and
checked. Galvanised tubular products may require occasional maintenance. If surface rust appears it should be removed
with either a wire brush or coarse sandpaper, and the area treated with a non-toxic paint. Changes to the original toy (for
example the adding of an accessory) shall be carried out according to the instructions of the retailer of the original toy.
7. FIRE RISKS AND DISPOSAL
Never allow TP toys to be placed or used near a fire. When it becomes necessary to dispose of your equipment, remove
all bolts and disassemble. Store out of the reach of children until it can be properly disposed of. These instructions are
issued in the interest of child safety, and we do ask you to follow our advice.
8. SWINGING TOYS
When fitting swinging toys it is vital that moving parts have no metal to metal contact. Children should be instructed not
to pass in front of or behind moving items, not to twist or swing an empty swing seat, and not to get off a swinging toy
when it is in motion.
9. ROPES/SUSPENSION WEBBING
These ropes/suspension webbing will degrade over time. When signs of degradation appear, the toy should be replaced.
How to remove your child safely from their TP FoldAway Swing Seat
1 2
Folding away the Swing Seat (after use)
To fold away - simply reverse the below steps.
B2 C1
C3
3
C2
