Securitytronix EZII ST-EZ32 Quick Start Manual

Connect plug n play
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

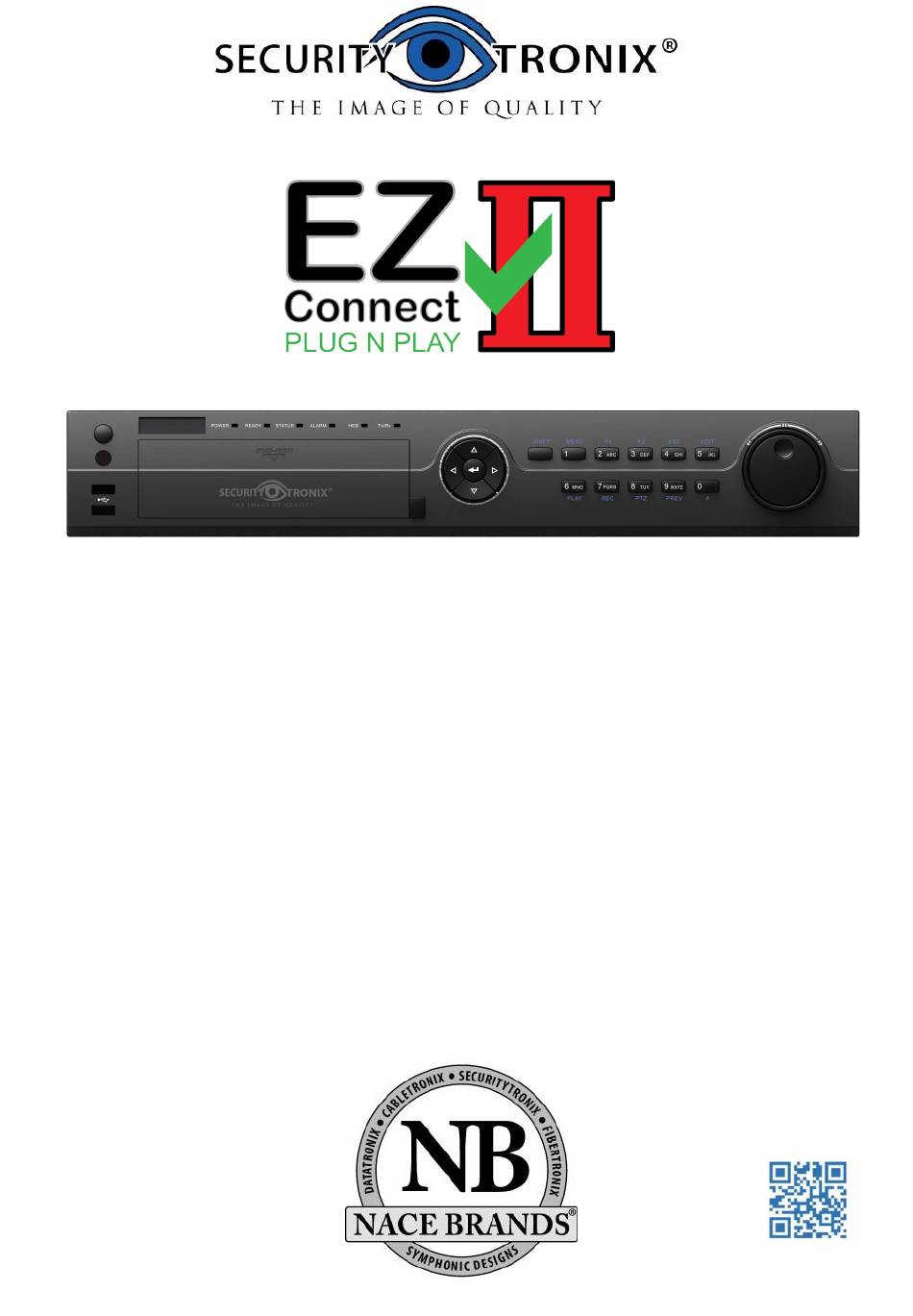

ST-EZ32
QUICK START GUIDE
www.nacebrands.com
www.securitytronix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZII ST-EZ32 and is the answer not in the manual?

Questions and answers

Summary of Contents for Securitytronix EZII ST-EZ32

  • Page 1 ST-EZ32 QUICK START GUIDE www.nacebrands.com www.securitytronix.com...

  • Page 2: Table Of Contents

    ST-EZ32 QUICK START GUIDE TABLE OF CONTENTS Chapter1 Description of Panels ........................6 Front Panel ............................6 Rear Panel ............................. 10 Chapter 2Installation and Connections ......................13 NVR Installation ..........................13 Hard Disk Installation ........................13 Connections ........................... 17 Wiring of Alarm Input ........................17 Wiring of Alarm Output ........................
  • Page 3 OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS HARDWARE AND SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. THE USE OF THE PRODUCT SHALL BE WHOLLY AT YOUR OWN RISK. SECURITYTRONIX SHALL NOT BE LIABLE FOR ANY ABNORMAL OPERATION, BREACH OF PRIVACY OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS.
  • Page 4 ST-EZ32 QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 ST-EZ32 QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
  • Page 6 ST-EZ32 QUICK START GUIDE Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Provides additional information to emphasize or supplement important points of the main text.

  • Page 7: Chapter1 Description Of Panels

    ST-EZ32 QUICK START GUIDE Chapter1 Description of Panels 1.1 Front Panel Front Panel 1 Figure 1. 1 Front Panel Table 1. 1 Description of Interfaces Name Function Description POWER ON/OFF Power on/off switch. IR Receiver Receiver for IR remote ALARM Turns red when a sensor alarm is detected.
  • Page 8 ST-EZ32 QUICK START GUIDE Name Function Description will select the next and previous record files. In Live View mode, these buttons can be used to cycle through channels. In PTZ control mode, it can control the movement of the PTZ camera.
  • Page 9 ST-EZ32 QUICK START GUIDE Name Function Description Press and hold the button for 5 seconds will turn off audible key beep. In PTZ Control mode, the MENU/WIPER button will start wiper (if applicable). In Playback mode, it is used to show/hide the control interface. Switch between single screen and multi-screen mode.
  • Page 10 ST-EZ32 QUICK START GUIDE READY Ready indicator is normally green, indicating that the DVR is functioning properly. Indicator turns green when DVR is controlled by an IR remote control with the address from 1~254; Indicator turns red when the SHIFT button is used; Indicator does not light when the DVR is controlled by a keyboard or by the IR remote control with the address of 255;...

  • Page 11: Rear Panel

    ST-EZ32 QUICK START GUIDE Enter letters “TUV”; Access PTZ control interface. Enter numeral “9”; Enter letters “WXYZ”; 9WXYZ/PREV Multi-camera display in live view; In Playback mode or MenuPlaybackTag playback interface, this button can be used to delete the selected tag. Enter numeral “0”;...
  • Page 12 ST-EZ32 QUICK START GUIDE Item Description ALARM IN Connector for alarm input. ALARM OUT Connector for alarm output. AC 100V ~ 240V 100 to 240 VAC power supply. Power Switch Switch for turning on/off the device. GROUND Ground (needs to be connected when NVR starts up).
  • Page 13 ST-EZ32 QUICK START GUIDE Rear Panel 2 Figure 1. 4 Without POE Interface Series Figure 1. 5 With POE Interface Series Table 1. 4 Description of Rear Panel Interfaces Item Description LAN Interface 1 network interface provided for POE Series and 2 network interfaces for non POE series.

  • Page 14: Chapter 2Installation And Connections

    ST-EZ32 QUICK START GUIDE Chapter 2 Installation and Connections 2.1 NVR Installation During installation of the NVR: 1. Use brackets for rack mounting. 2. Ensure ample room for audio and video cables. 3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter. 4.
  • Page 15 ST-EZ32 QUICK START GUIDE Figure 2. 2 Install the HDD 3. Connect one end of the data cable to the NVR motherboard and the other end to the HDD. Figure 2. 3 Connect the data cable 4. Connect the power cable to the HDD. Figure 2.
  • Page 16 ST-EZ32 QUICK START GUIDE 2. Insert the key and turn in clockwise direction to open the panel lock. 3. Press the buttons on the panel of two sides and open the front panel. 4. Insert the hard disk along the slot until it is placed into position. 5.
  • Page 17 ST-EZ32 QUICK START GUIDE...

  • Page 18: Connections

    ST-EZ32 QUICK START GUIDE 2.3 Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device.

  • Page 19: Using Alarm Connectors

    ST-EZ32 QUICK START GUIDE Using Alarm Connectors To connect alarm devices to the NVR: 1. Disconnect the pluggable block from the ALARM IN /ALARM OUT terminal block. 2. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop screws. Ensure signal cables are tight.

  • Page 20: Hdd Storage Calculation Chart

    ST-EZ32 QUICK START GUIDE 2.4 HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K 256K 112M...

  • Page 21: Chapter 3Menu Operation

    ST-EZ32 QUICK START GUIDE Chapter 3 Menu Operation 3.1 Menu Structure Refer to the following figure for the menu structure: Menu Playback Shutdown Export VCA Search Record Camera Configuration Maintenance Manual Behavior Normal Normal Schedule Camera General System Info Logout Record General Search...

  • Page 22: Activating Your Device

    ST-EZ32 QUICK START GUIDE To shut down the NVR: 1. Enter the Shutdown menu. Menu > Shutdown Figure 3. 2 Shutdown 2. Select the Shutdown button. 3. Click the Yes button. 3.3 Activating Your Device Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation.

  • Page 23: Login And Logout

    ST-EZ32 QUICK START GUIDE device starts up. You can click YES and follow the wizard to set a strong password. Figure 3. 4 Warning of Weak Password 3.4 Login and Logout User Login Purpose: If the NVR has logged out, you must login to the device before operating the menu and other functions. Steps: Select the User Name in the dropdown list.

  • Page 24: User Logout

    ST-EZ32 QUICK START GUIDE User Logout Purpose: After logging out, the monitor turns to the live view mode and if you want to perform any operations, you need to enter user name and password to log in again. Steps: Enter the Shutdown menu. Menu >...

  • Page 25: Network Settings

    ST-EZ32 QUICK START GUIDE 3.6 Network Settings Purpose: Network settings must be properly configured before you operate the NVR over the network. Steps: 1. Enter the Network Settings interface. Menu > Configuration > Network Figure 3. 9 Network Settings Two self-adaptive 10M/100M/1000M network interfaces provided for non POE series, and two working modes are configurable: multi-address and network fault tolerance.

  • Page 26: Live View

    ST-EZ32 QUICK START GUIDE  OPTION 1: Steps: 1. Click to select an idle window in the live view mode. 2. Click the icon in the center of the window to pop up the Add IP Camera interface. Figure 3. 10 Add IP Camera 3.

  • Page 27: One-Touch Raid Configuration

    ST-EZ32 QUICK START GUIDE 3.9 One-Touch RAID Configuration The RAID is supported by 2U series NVRs only. Purpose: The device supports the RAID storage function. Through one-touch configuration, you can quickly create the disk array. By default, the array type to be created is RAID 5. Before you start: As the default array type is RAID 5, at least 3 HDDs must be installed in you device.

  • Page 28: Recording Settings

    ST-EZ32 QUICK START GUIDE 4. When the array configuration is completed, click OK button in the pop-up message box to finish the settings. 3.10 Recording Settings Before you start: Make sure that the disk has already been installed. If not, please install a disk and initialize it. You may refer to the user manual for detailed information.
  • Page 29 ST-EZ32 QUICK START GUIDE Figure 3. 14 Playback Interface Select the channel (s) you want to play back by checking the checkbox (es), or execute simultaneous playback of multiple channels.

  • Page 30: Chapter 4Remote Access

    ST-EZ32 QUICK START GUIDE Chapter 4 Remote Access 4.1 Web Browser You shall acknowledge that the use of the product with Internet access might be under network security risks. To mitigate network attacks and information leakage, please ensure the network is protected. If the product does not work properly, please contact your dealer or the nearest service center.

  • Page 31: Mobile Apps

    ST-EZ32 QUICK START GUIDE Figure 4. 2 Login Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in. After logging in, you can perform regular operation and configuration, including live view, playback, log search, configuration, etc.
  • Page 32 ST-EZ32 QUICK START GUIDE Figure 4.3 Registration Figure 4.4 Verification Accept the terms of service, and select a registration method. Verify the account using the code sent to either the email address or phone number used. Figure 4.5 QR Scan Figure 4.4 Add Device Click on the "...
  • Page 33 Company and should not be relied upon. This warranty gives you specific legal rights. You may also have other rights which vary from one jurisdiction to another. For further assistance, or if you encounter any issue while using this product, please contact your distributor or Securitytronix at: 800-688-9282 Press 3 for support, then 2 for CCTV.
