HYDRAULIC
BOTTLE JACKS
ALL JACKS COMPLY WITH AS/NZS 2693:2007
OWNERS MANUAL
OPERATING INSTRUCTIONS
SQUAT SERIES
BLACK SERIES
BLACK Series
JAX004
JAX006
JAX008
JAX010
JAX015
JAX020
MANUFACTURED FOR BEAVER BRANDS
www.beaver.com.au | 1300 783 606
SQUAT SERIES
BLACK SERIES
SQUAT Series
BJS012
BJS020
Advertisement
Summary of Contents for Beaver Jax BLACK Series

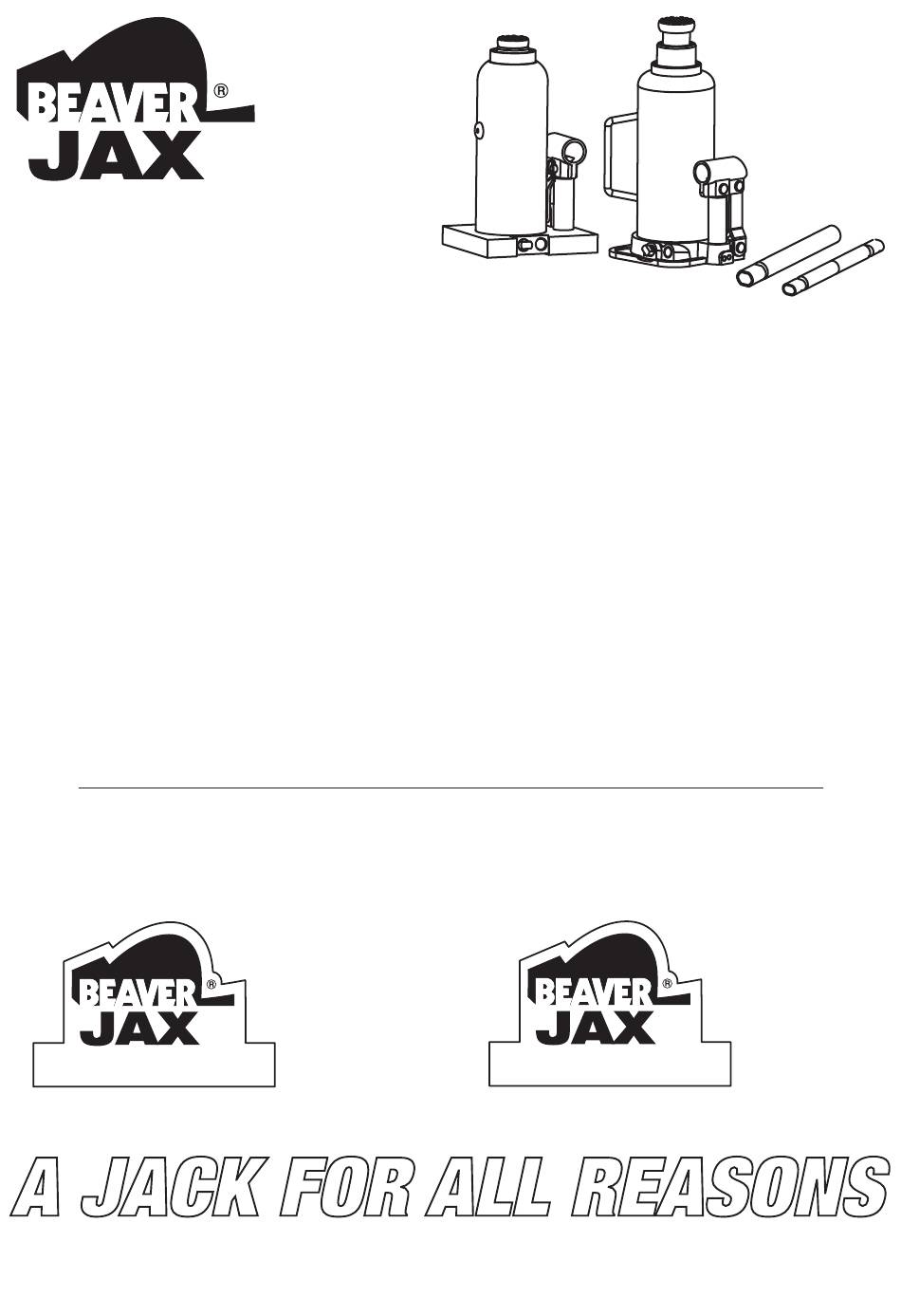

- Page 1 HYDRAULIC BOTTLE JACKS ALL JACKS COMPLY WITH AS/NZS 2693:2007 OWNERS MANUAL OPERATING INSTRUCTIONS SQUAT SERIES BLACK Series JAX004 JAX006 SQUAT Series JAX008 BJS012 JAX010 BJS020 SQUAT SERIES BLACK SERIES JAX015 JAX020 MANUFACTURED FOR BEAVER BRANDS BLACK SERIES www.beaver.com.au | 1300 783 606...
- Page 2 WARNING THE JACK SHOULD BE USED ON LEVEL FIRM GROUND WHEREVER POSSIBLE. DO NOT GET UNDER A VEHICLE THAT IS SUPPORTED BY A JACK. USE VEHICLE SUPPORT STANDS. WARNING: INCORRECT USE MAY RESULT IN POSSIBLE LOSS OF LOAD, DAMAGE AND PERSONAL INJURY. SAFE USAGE INSTRUCTIONS IT IS RECOMMENDED THAT: 1.
- Page 3 A. OPERATING INSTRUCTIONS BEFORE USE : Visually inspect the jack for any abnormal conditions and refer to the preceding. WARNINGS, SAFE USAGE STATEMENTS and NOTES. 1. TO RAISE THE LOAD a. With the jack in the lowered position turn the release valve (04), with the end of the jack handle (34) in a clockwise direction until it is firmly closed.
- Page 4 C. PROBLEM SOLVING DETAIL QUICK REFERENCE TO PROBLEM SOLVING Jack will not Jack will not Lift Jack will not Jack lowers Jack will not Jack Handle rises by itself Refer detailed instructions Raise or Lift Load full Load Lift full height while under Load lower completely when jack is under load...
-
Page 5: Construction Diagram
CONSTRUCTION DIAGRAM JAX020, BJS012 & BJS020 NOTES: Variations between models 1. The ram cup seal (28) and back up ring (27) may vary in design for different models. 2. The crack valve kit (8), seal (09) and washer (10) may vary in design for different models. -
Page 6: Warranty Policy
CONSTRUCTION DIAGRAM JAX004, JAX006, JAX008, JAX010 & JAX015 Item No. Description Release valve lever Base O-Ring Hydraulic cylinder Hydraulic Oil Oil-tight tank Extension screw Pump plunger Pump body O-Ring WARRANTY POLICY IMPORTANT INFORMATION How to make a warranty claim To make a claim under this warranty, the product or part must be returned for 1 Year Limited Warranty examination to an authorised service centre nominated by Beaver together Beaver offers a one year limited warranty on this product.
