Take a really good look

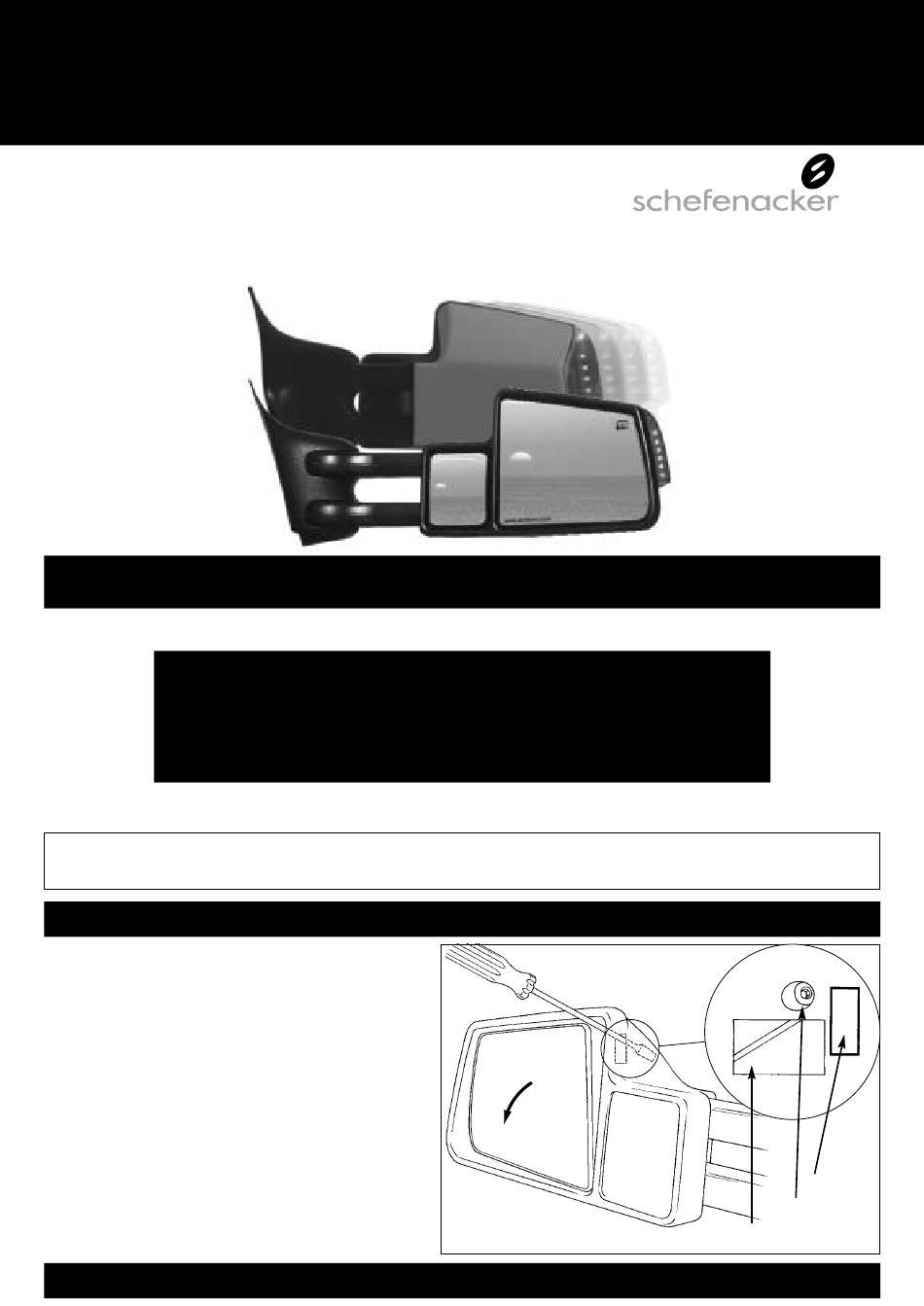

Telescopic Trailer Tow Mirror by
Replacement Component Installation Instructions
All illustrations are drawn to show driver's side component.
WARNING
Please read ALL the instructions and warnings thoroughly before installing the
replacement parts. Ensure that the fitting instructions are followed exactly,
as failure to do so may result in incorrect installation, and may also result in
the driver, passengers and vehicle being placed in hazardous conditions.
Schefenacker Warranty – Terms & Conditions
Schefenacker Vision Systems Australia Pty Ltd warrants that this component is free from defects in material
and workmanship under normal use for a period of 12 months from the date of purchase.
Preparation and STEP 1
Existing cover removal.
Make sure you have the required tools:
• flashlight
• slotted screwdriver (with at least a 5" shaft)
• 3/16" (5mm) hex head socket and driver
Approximate installation time: 15 minutes.
1. Pull the top edge of the main glass as far forward
as practical. It may make a clicking sound as it moves
- this is normal. (See Figure 1a)
Using a flashlight, locate the vertical rectangular slot
on the vehicle side of the main glass opening. It will be
alongside a hex-head screw and another rectangular
slot - horizontal. (See Figure 1b)
For technical support, contact your Telescopic Trailer Tow Mirror dealer or visit www.ttt-mirror.com
Important Information
LIGHT MODULE REPLACEMENT (part # 9000 - 9001)
Continued over page...
Figure 1a
take a really good look
Figure 1b
Vertical slot
Hex-head Screw
Horizontal slot
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Schefenacker Telescopic Trailer Tow Mirror
- Page 1 Schefenacker Warranty – Terms & Conditions Schefenacker Vision Systems Australia Pty Ltd warrants that this component is free from defects in material and workmanship under normal use for a period of 12 months from the date of purchase.
- Page 2 STEPS 2, 3 & 4 LIGHT MODULE REPLACEMENT 2. Insert your screwdriver through the vertical slot until you feel the tip pressing against a spring loaded clip. (see Figure 2 opposite) Push the screwdriver gently against the clip – very little force is needed. Figure 2 3.
- Page 3 STEPS 5, 6 & 7 LIGHT MODULE REPLACEMENT 5. Remove the wiring connector from the original connector, and refit the wiring connector to the replacement light module. (see Figure 5 opposite) Figure 5 6. Relocate the replacement light module, ensuring the tabs on the lower and main glass side of the module locate securely inside the body of the mirror’s case.
