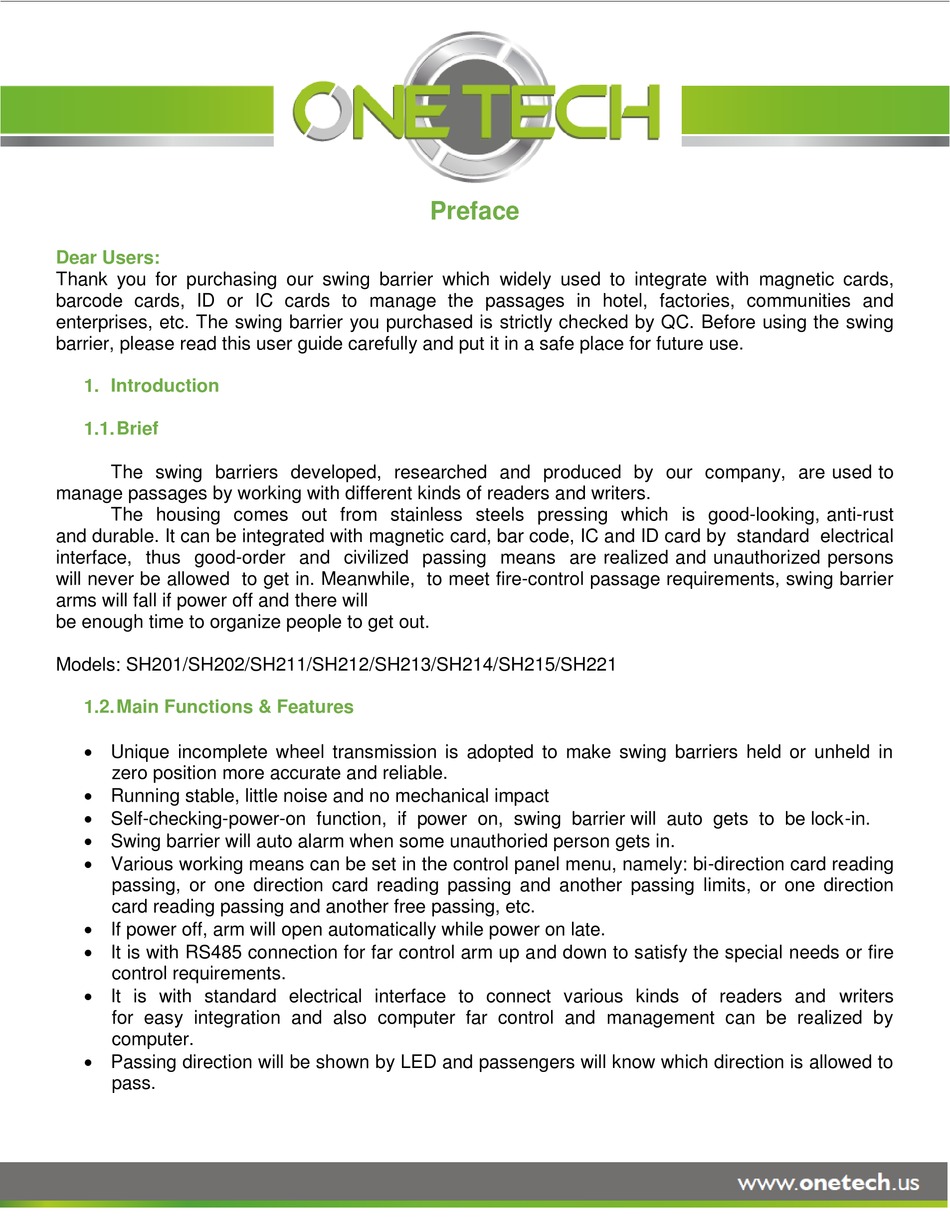

One Tech SH201 Manual

Dear Users:
Thank you for purchasing our swing barrier which widely used to integrate with magnetic cards,
barcode cards, ID or IC cards to manage the passages in hotel, factories, communities and
enterprises, etc. The swing barrier you purchased is strictly checked by QC. Before using the swing
barrier, please read this user guide carefully and put it in a safe place for future use.

1. Introduction

1.1. Brief
The swing barriers developed, researched and produced by our company, are used to
manage passages by working with different kinds of readers and writers.
The housing comes out from stainless steels pressing which is good-looking, anti-rust
and durable. It can be integrated with magnetic card, bar code, IC and ID card by standard electrical
interface, thus good-order and civilized passing means are realized and unauthorized persons
will never be allowed to get in. Meanwhile, to meet fire-control passage requirements, swing barrier
arms will fall if power off and there will
be enough time to organize people to get out.
Models: SH201/SH202/SH211/SH212/SH213/SH214/SH215/SH221
1.2. Main Functions & Features
 Unique incomplete wheel transmission is adopted to make swing barriers held or unheld in
zero position more accurate and reliable.
 Running stable, little noise and no mechanical impact
 Self-checking-power-on function, if power on, swing barrier will auto gets to be lock-in.
 Swing barrier will auto alarm when some unauthoried person gets in.
 Various working means can be set in the control panel menu, namely: bi-direction card reading
passing, or one direction card reading passing and another passing limits, or one direction
card reading passing and another free passing, etc.
 If power off, arm will open automatically while power on late.
 It is with RS485 connection for far control arm up and down to satisfy the special needs or fire
control requirements.
 It is with standard electrical interface to connect various kinds of readers and writers
for easy integration and also computer far control and management can be realized by
computer.
 Passing direction will be shown by LED and passengers will know which direction is allowed to
pass.

Preface
