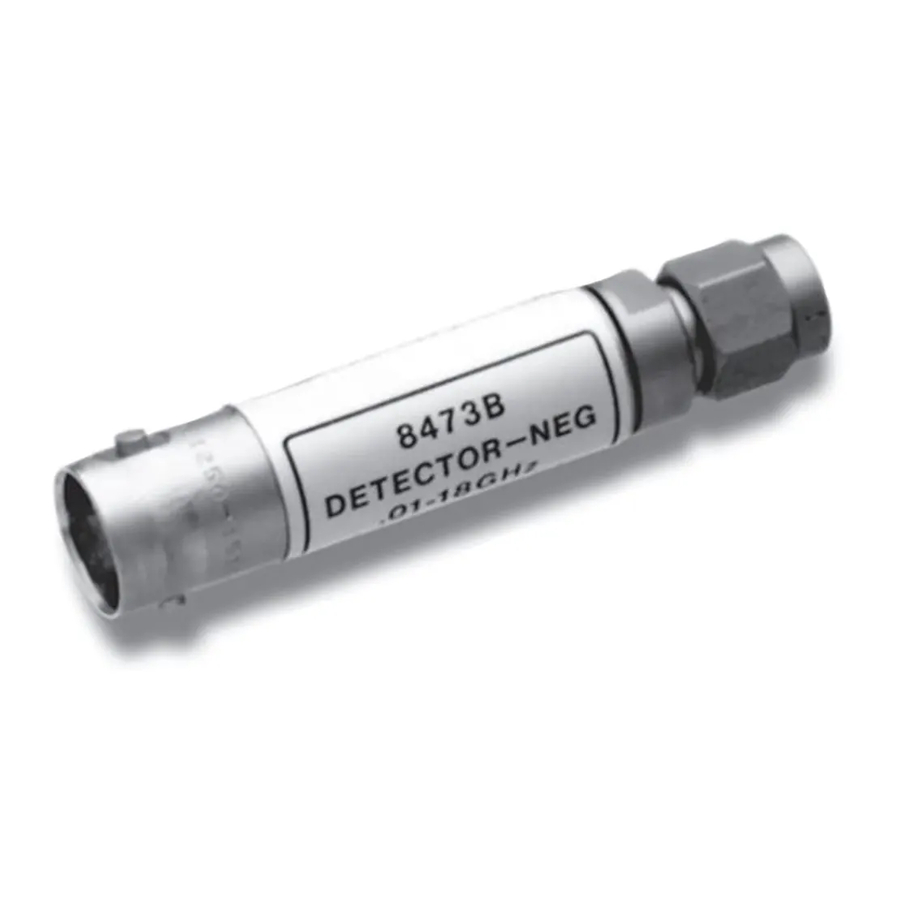

Keysight 8473B/C Detectors
Operating and
Service Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8473B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Keysight 8473B

  • Page 1 Keysight 8473B/C Detectors Operating and Service Guide...
  • Page 2 Conformity. understood and met. where in the EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software. With WARNING respect to any technical data as defined by FAR 2.101, pursuant to FAR...
  • Page 3: Waste Electrical And Electronic Equipment (Weee) Directive

    To return this unwanted instrument, contact your nearest Keysight Service Center, or visit http://about.keysight.com/en/companyinfo/environment/takeback.shtml for more information. Sales and Technical Support To contact Keysight for sales and technical support, refer to the support links on the following Keysight websites: – www.keysight.com/find/detectors (product-specific information and support, software and documentation updates) –...
  • Page 4 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8473B/C Operating and Service Guide...
  • Page 5: Table Of Contents

    ........27 Keysight 8473B/C Operating and Service Guide...
  • Page 6 ..........28 Keysight 8473B/C Operating and Service Guide...
  • Page 7: List Of Figures

    List of Figures Figure 3-1 Typical frequency response of the 8473B or 8473C detector ........23...
  • Page 8 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8473B/C Operating and Service Guide...
  • Page 9: List Of Tables

    ....16 Table 2-3 Physical specifications ......17 Keysight 8473B/C Operating and Service Guide...
  • Page 10 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8473B/C Operating and Service Guide...
  • Page 11 Keysight 8473B/C Detectors Operating and Service Guide Introduction Overview This chapter introduces the 8473B and 8473C crystal detectors and its available Options.
  • Page 12: Introduction

    The output voltage polarity is negative, unless Option 003 is selected. The frequency range is 10 MHz to 18 GHz for the 8473B, and 10 MHz to 26.5 GHz for the 8473C. Complete specifications for the crystal detectors are available in Chapter 2, “Specifications,”...
  • Page 13 Keysight 8473B/C Detectors Operating and Service Guide Specifications Product Specifications Environmental Specifications Physical Specifications This chapter provides an overview specifications of Keysight 8473B/C crystal detector.
  • Page 14: Specifications

    1 to 2 KΩ (typically 1.3 KΩ) shunted by 1 to 2 KΩ (typically 1.3 KΩ) shunted by Output impedance 20 to 60 pF (typically 30 pF) 20 to 60 pF (typically 30 pF) Keysight 8473B/C Operating and Service Guide...
  • Page 15 0.5 dB from –20° C to +25° C; 0.5 dB from +25° C to +40° C; 1 dB from +40° C to +55° C; 1.25 dB from +55° C to +75° C; 1 dB from +75° C to +85° C. Keysight 8473B/C Operating and Service Guide...
  • Page 16: Environmental Specifications

    – Temperature: –54° C to +85° C – Humidity: <95% relative – Altitude: <7,620 meters (25,000 feet) – Shock: 100 G for 11 ms – Vibration: 20 G from 80 to 2,000 Hz Keysight 8473B/C Operating and Service Guide...
  • Page 17: Physical Specifications

    Net 14 g (0.5 oz.) Net 14 g (0.5 oz.) Dimension 48 mm long, 10 mm diameter 48 mm long, 10 mm diameter (1.9 in. long, 0.38 in. diameter) (1.9 in. long, 0.38 in. diameter) Keysight 8473B/C Operating and Service Guide...
  • Page 18 Specifications THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8473B/C Operating and Service Guide...
  • Page 19 Keysight 8473B/C Detectors Operating and Service Guide Installation, Operation, and Service Installation Storage and Shipment Performance Tests Adjustments Service This chapter describes the installation and operating procedures for the crystal detectors. It also describes the available performance tests used for testing the...
  • Page 20: Installation, Operation, And Service

    Keysight office. If the shipping container is damaged, or the cushioning material shows signs of stress, notify the carrier as well as the Keysight office. Keep the shipping materials for the carrier’s inspection. At Keysight’s option, the office will arrange for repair or replacement without waiting for claim settlement.
  • Page 21: Storage And Shipment

    Original packaging Containers and materials identical to those used in factory packaging are available through Keysight offices. If the instrument is being returned to Keysight for servicing, attach a tag indicating the type of service required, return address, model number, and serial number. Also, mark the container FRAGILE to assure careful handling.
  • Page 22: Operating Information

    The power applied to the detector can be either modulated or continuous wave (CW). If modulated at a 1,000 Hz rate, an SWR meter can be used as an indicator. For CW detection, a DC milliammeter or millivoltmeter can be used as the indicator. Keysight 8473B/C Operating and Service Guide...
  • Page 23: Frequency Response

    SWR which yields improved performance in leveling loops and power monitoring applications. Figure 3-1 shows the typical frequency response of the crystal detector. Specifications Typical 8473B/C Response Specifications Figure 3-1 Typical frequency response of the 8473B or 8473C detector Keysight 8473B/C Operating and Service Guide...
  • Page 24: Operator's Checks

    Figure 3-2 Peak power measurement The arrangement of equipment for peak power measurement is shown in Figure 3-2. The procedure involves calibration of an oscilloscope which, in turn, is used to calibrate a CW generator. Keysight 8473B/C Operating and Service Guide...
  • Page 25 CW generator. Connect output of CW generator to power meter. Measure adjusted levels (set in step 2) of CW generator output. The peak power of the pulse envelope observed in step 1 is equal to the output power of the CW generator. Keysight 8473B/C Operating and Service Guide...
  • Page 26: Performance Tests

    6) for all frequencies of interest across the band. Multiple mismatch errors caused by attenuator SWR, power sensor SWR, and NOTE detector SWR should be taken into account, as well as the accuracy of the indicator used to measure the detector output. Keysight 8473B/C Operating and Service Guide...
  • Page 27: High Level Sensitivity Test

    Measure the DC voltage output from detector. The output should be >5.0 mV up to 18 GHz for the 8473B/C and >1.8 mV from 18 to 26.5 GHz for the 8473C at 25° C. Between 20° C and 30° C with –20 dBm input power and a high impedance video load the sensitivity slope is typically –0.04 dB/°...
  • Page 28 Installation, Operation, and Service Adjustments The detector has no internal adjustments. Service Additional maintenance information can be obtained from the local Keysight office. Keysight 8473B/C Operating and Service Guide...
  • Page 29 This information is subject to change without notice. Always refer to the Keysight website for the latest revision. © Keysight Technologies 2014 - 2019 Edition 5, January 16, 2019 Printed in Malaysia *08473-90003* 08473-90003 www.keysight.com...
