Summary of Contents for CONEN workITdesk WID-DL74 BLP

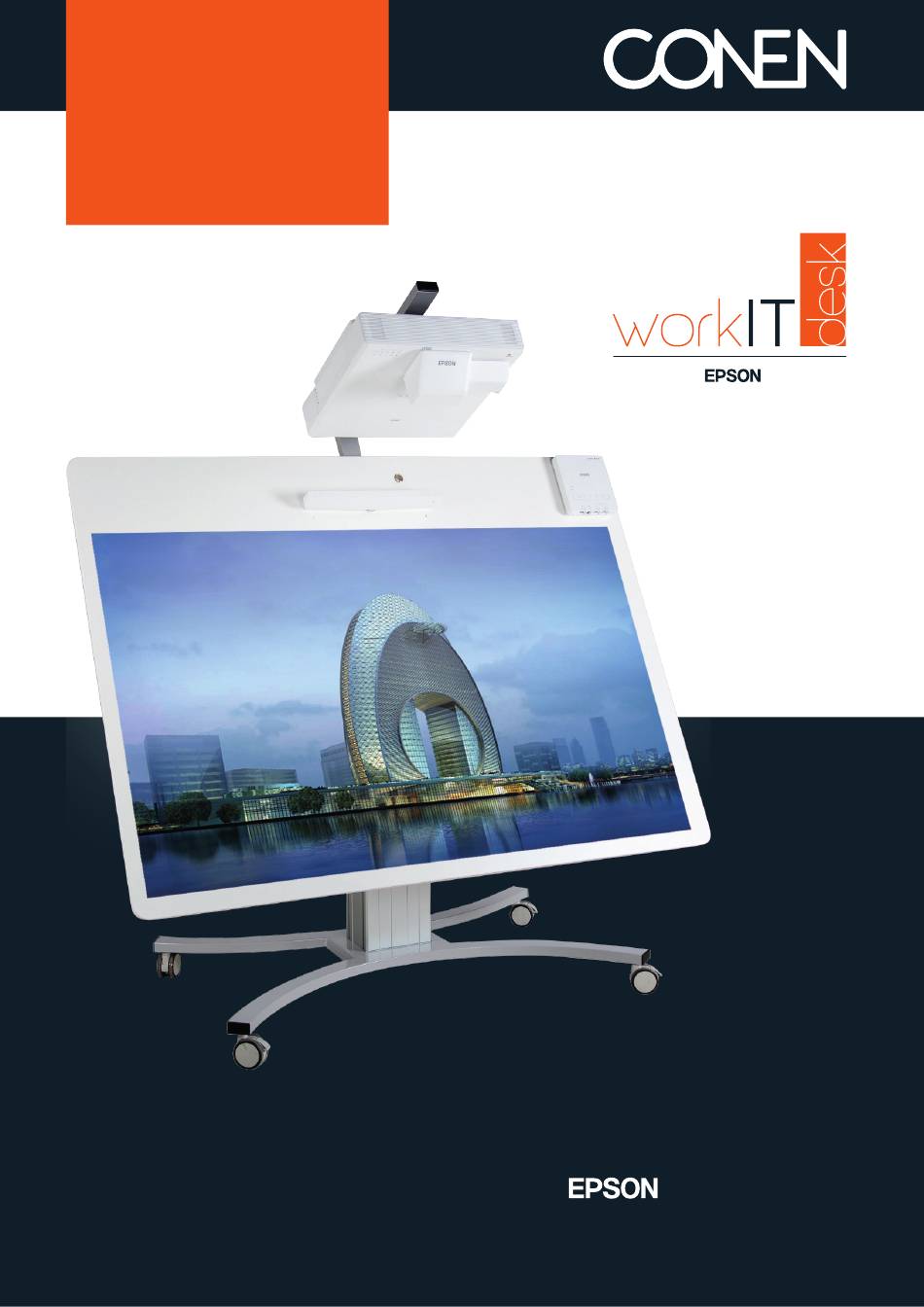

- Page 1 Epson P/N V12 H 893020 Conen P/N WID-DL74 BLP Designed for BrightLink ® ® Installation guide workITdesk interactive table for BrightLink ® ®...
- Page 2 Mounting the table unit Unpack boxes 1 of 4 (Mobile base) and 2 of 4 (Motorized center column) and attach base to column using the 4 x M8 x 40 (1/3" x 1.6") Allen screws + 4 washers. Unpack box 3 of 4 (Board frame w. tilt actuator) and attach Make sure to run the two cables exiting the column through frame to column using the 4 x M8 x 40 (1/3"...
- Page 3 Attach Control Pad & Finger Touch Unit and feed cables (parts supplied with projector) Attach the finger touch module with 2 x Phillips head Attach touch panel with 4 x Phillips head screws screws (0.14" x 1.4") to the board surface at approx. 7" (0.165"...
- Page 4 Power up the unit Put the plug of the external actuator into the Plug in the remote control into the connector marked with the yellow dot. remaining connector. Note the different numbers of pins on both plugs! User guide for electrical height adjustable unit Pressing knob lowers lift Pressing knob raises lift unit...
- Page 5 Mount the projector 4 x rubber buffer 13 mm 4 x washer 8 mm Mount the projector plate to the The clamp below (attached with Move projector out to the farthest projector. blue-circled screws) should be distance from the table. shifted all the way to the RIGHT Start by placing the 0.5"...
- Page 6 Important hazard and safety notes Please carefully read the below hazard and safety notes before using the hight adjustment unit. Electrical safety Connect unit to a free accessible 110 V/ 60 Hz grounded power outlet only. Make sure, the unit can be immediately separated from the power outlet. Only use unit in dry rooms, protect unit from water and other liquids.
- Page 7 This warranty does not cover any damages caused by using improper packaging materials or improper packa- ging & shipping to or from Conen Produkte GmbH . Conen Produkte GmbH will not be liable for any damage caused by misuse, abuse, accidental damage, modification, improper repair or installation or adverse environ- mental factors including fire, flood, lightning or incorrect electrical currents.
- Page 8 Designed for BrightLink ® ® MANUFACTURER +49 6533 75 -100 Conen Produkte GmbH +49 6533 75 -600 Conenstr. 4 info@conenmounts.com 54497 Morbach-Gonzerath www.conenmounts.com Germany...
