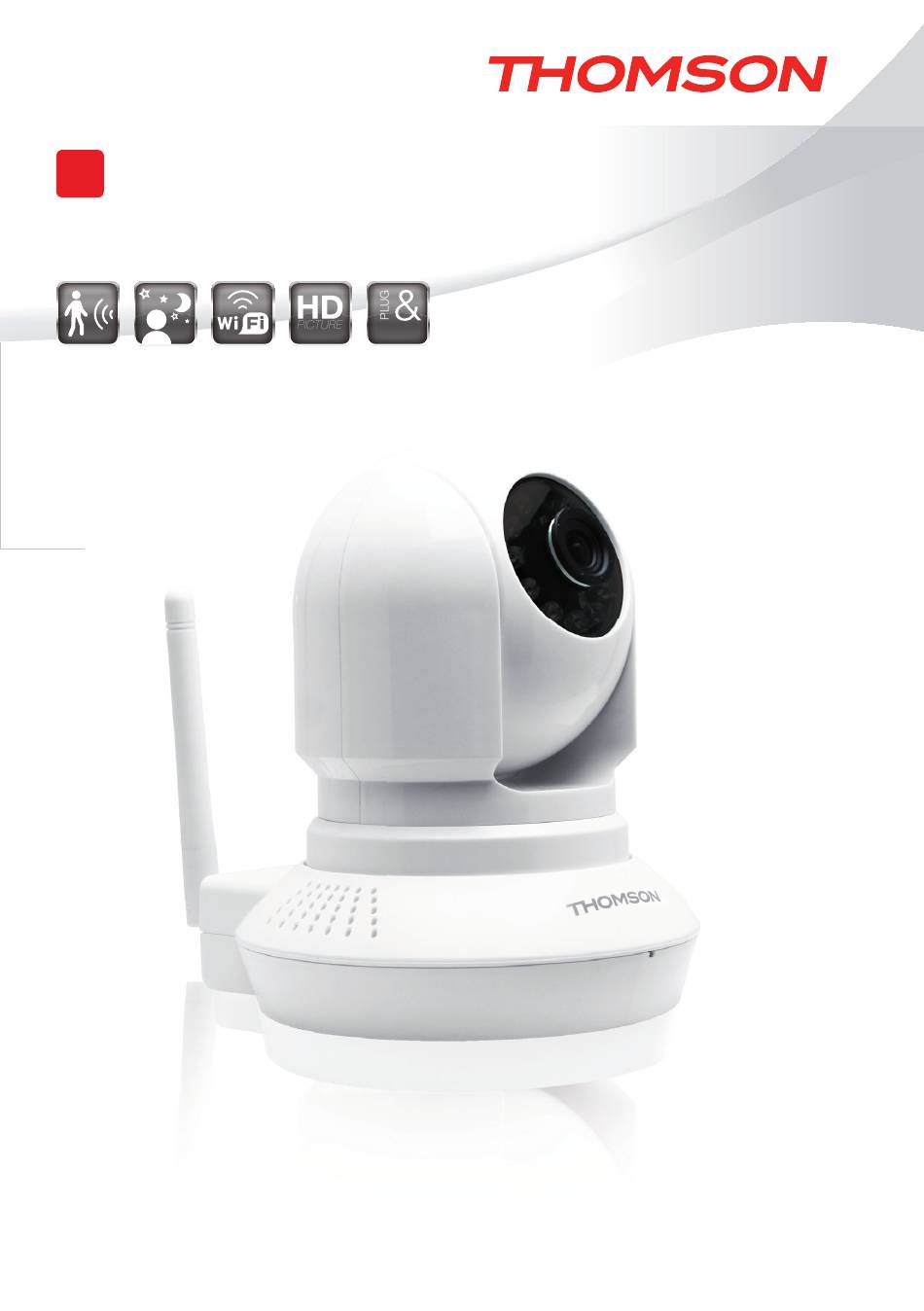

- Page 1 Motorised 720P HD WiFi IP camera 523W dsc - PLAY ref. 512392 www.thomsonbox.eu www.thomsonsecurity.eu...
-
Page 2: Table Of Contents
Motorised 720P Hd WiFi iP caMera TABLE OF CONTENTS A - SAFETy iNSTruCTiONS 1 - operating precautions 2 - maintenance and cleaning 3 - recycling B - prOduCT dESCripTiON 1 - contents of the kit 2 - camera 3 - mains adapter C - iNSTALLATiON 1 - installing the camera 2 - connecting the camera... - Page 3 E - rESET F - FAQ g - TEChNiCAL ANd LEgAL iNFOrmATiON 1 - general characteristics 2 - Warranty 3 - help and adVice 4 - product returns/after-sales serVice 5 - ec declaration of conformity...
-
Page 5: A - Safety Instructions
Motorised 720P Hd WiFi iP caMera A - SAFETy iNSTruCTiONS 1 - OPERATING PRECAUTIONS 3 - RECYCLING • The cameras must not be installed where the This logo denotes that devices which are lens filter may be vulnerable to scratching and no longer in use must not be disposed dirt. of as household waste as they are likely • The camera is not designed for outside to contain hazardous substances which installation and should not be installed in... -
Page 6: B - Product Description
Motorised 720P Hd WiFi iP caMera B - prOduCT dESCripTiON 1 - CONTENTS OF THE KIT 1 Camera 5 Wall plugs for attaching the base 2 Mains adapter 6 Screws for attaching the base 3 Antenna 7 RJ45 cable for wired connection to the network 4 Wall bracket 8 CD-ROM containing the ThomView software 2 - CAMERA front view rear view Viewed from underneath Micro SD 10 11 1 Brightness sensor... -
Page 7: C - Installation
Motorised 720P Hd WiFi iP caMera C - iNSTALLATiON 1 - INSTALLING THE CAMERA • Mount the camera using suitable screws and wall plugs for the type of surface (the screws and plugs supplied are suitable for solid walls). • Make sure the camera is properly secured to prevent it from falling. 2 - CONNECTING THE CAMERA • You can use the WPS button on the back of your camera to quickly connect to your WiFi network. Please refer to your modem/router/box user guide to find out whether you have the WPS feature and if so, how to use it. camera Modem/router connected to the internet Micro SD Mains adapter... -
Page 8: Focussing The Image
Motorised 720P Hd WiFi iP caMera C - iNSTALLATiON If your camera is not equipped with the WPS feature or you do not want to use it, you will have to use a wired connection for setup, even if you subsequently intend to use a WiFi connection. camera Modem/router Mains adapter connected to the internet Micro SD IMPORTANT: Do not connect your camera to your computer. This will not provide it with access to the internet. In most cases, the camera is immediately detected by the modem/router, which grants it access to the Internet. After a few seconds, the camera motors should respond and the network activity LED at the back of the camera should flash. Micro SD 3 - FOCUSSING THE IMAGE • Once you have set up the device, you can adjust the focus of the image if it is lacking sharpness. Gently rotate the lens to adjust the focus. WARNING: Do not force the lens or unscrew it completely and do not move the motors by hand! -
Page 9: D - Configuration And Use
Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE 1 - CONFIGURATION USING A SMARTPHONE Return to the list of saved cameras OR TABLET Start/stop save (stored on the telephone or tablet) When you connect your camera to the ThomView Take a photo (stored on the telephone app for the first time, you are immediately asked to or tablet) change the user name and password for camera Activation of the camera microphone and/or connection, for increased security: speaker (compatible cameras only) -
Page 10: Configuration Using Thomview Software
Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE 2 - CONFIGURATION USING THOMVIEW Activation or deactivation of camera indicator SOFTWARE lights Change to the user name and password to The ThomView software is compatible with PC and access the camera (if you want to change the MacOS and confi gures and manages one or more camera user name and password for all of the cameras connected to the same local network. On users, you should change it here) another network, it enables remote access to the... - Page 11 - CONFigurATiON ANd uSE The main software window opens: Add a new camera Software settings Access to videos saved on the computer Access to the operations log in the software Selection of the number of cameras on the Camera UID (unique code shown on the screen at one time camera) Previous/next page. The software can manage Camera user name (default is "admin") up to 64 cameras: these arrows let you switch Type of device: select "THOMSON IPC" from cameras 5 to 8 then 9 to 12, etc. Name under which the camera will appear in Go to full screen the software (according to your preference) Launch a patrol (compatible cameras only) P2P connection: to be ticked to add a Cut the image display for all of the cameras camera using its UID. The UID of each of the Date, current time, processor load and hard cameras is a unique code of 20 to 24 numbers disk use and letters, shown on the camera itself.
- Page 12 Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE • Click the “Recherche [Search]” button to All of your camera settings can be accessed remotely fi nd your camera on the network to which your by right clicking on the name of the camera in the list computer is connected. (or on the image that it displays) then clicking on • In the list of cameras found, click on the “Paramètres caméra [Camera parameters]”: one you wish to add to the software. The information in the top part of the window is...
- Page 13 Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE When a camera displays its image on the screen, Open an external video file additional commands are displayed in the bottom right corner: Quick scroll forward Quick scroll back Playback Stop playback controls Progress image by image Start playback This icon shows the presence of records on Pause the computer used (white when idle, green when...
- Page 14 Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE To program an alert to be sent when motion is Tick the "Activer [Enable]" box to enable detected, you need 2 email addresses: the address email sending of the sender which will be used by the camera, SMTP server: varies with the email provider and the address which will receive the alerts. The of the address sending the alert. In our camera uses the username and password of the example, using Gmail, smtp.gmail.com...
-
Page 15: Configuration Using A Web Browser
Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE 3 - CONFIGURATION USING A WEB BROWSER Warning: frequent policy changes made by the main web browser developers as well as the number of possible confi gurations and versions can make it tricky to confi gure your camera. If possible, it is preferable to use a smartphone, tablet or dedicated software. - Page 16 Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE Select the display language, then enter the username and password for connecting to your camera. The default username is admin and the password is left blank, so you should leave the fi eld empty. At the Vertical image inversion fi rst connection, the camera will immediately ask you Anti-fl icker: if the image lighting is artifi cial, to replace the default username and password to select 50 Hz. If the light source is natural, improve security:...
- Page 17 Motorised 720P Hd WiFi iP caMera d - CONFigurATiON ANd uSE Here you will fi nd the same functions as those accessible from the ThomView software. Refer to the previous paragraph to see these functions. NOTE: if you use your browser to switch your camera from a wired to a wireless network, the connection will be lost because the camera IP address will change. You must restart the IP Camera Search Tool to detect the camera again.
-
Page 18: E - Reset
Motorised 720P Hd WiFi iP caMera E - rESET If there is a problem or the login details have been lost, the camera can be reset to its default settings by pressing the Reset button on the back of the camera for 10 seconds. -
Page 19: F - Faq
Motorised 720P Hd WiFi iP caMera F - FAQ If your problem is not covered below, please contact our technical support department. Symptoms Possible causes Solutions Network problem Check your connections. Temporarily connect using the network cable if the camera is Cannot connect to camera connected over WiFi over local area network (e.g. IP Network configuration problem Check your camera's network Cameras Search Tool) connection settings. Reset your camera if it is no longer accessible. Network configuration problem Check your device settings (box, router) The camera feed cannot be Incorrect video settings Check the video settings and... -
Page 20: G - Technical And Legal Information
Motorised 720P Hd WiFi iP caMera g - TEChNiCAL ANd LEgAL iNFOrmATiON 1 - GENERAL CHARACTERISTICS Camera 5VDC / 2000mA Power supply Ethernet 10/100, audio-MDIX, RJ45 Network interface Wireless network interface IEE 802.11b/g/n, WPS function ¼’’ CMOS Optical sensor 0 lux Minimum luminous intensity Manual or automatic (dusk-to-dawn sensor) Night vision Range: 8m f:2.8mm, F:2.4, angle of view 70° Lens Horizontal: 320°, vertical: 100°... -
Page 21: Warranty
EN 60950-1:2006 + A11:2009 + A1:2010 + an RMA number so that you can return the A12:2011 unit to the shop. Without this RMA number, the EN 62311:2008 shop may refuse to exchange your product. EN 301 489-1 V1.9.2 EN 301 489-17 V2.2.1 EN 300 328 V1.8.1 Chambray les Tours, Alexandre Chaverot 15/09/2015 Visit our website to find out more about our Thomson range at... - Page 22 is a TECHNICOLOR S.A. brand used under licence by: Avidsen France S.A.S - 32, rue Augustin Fresnel 37170 CHAMBRAY LES TOURS - France...
