Summary of Contents for Voleatech VT AIR 300

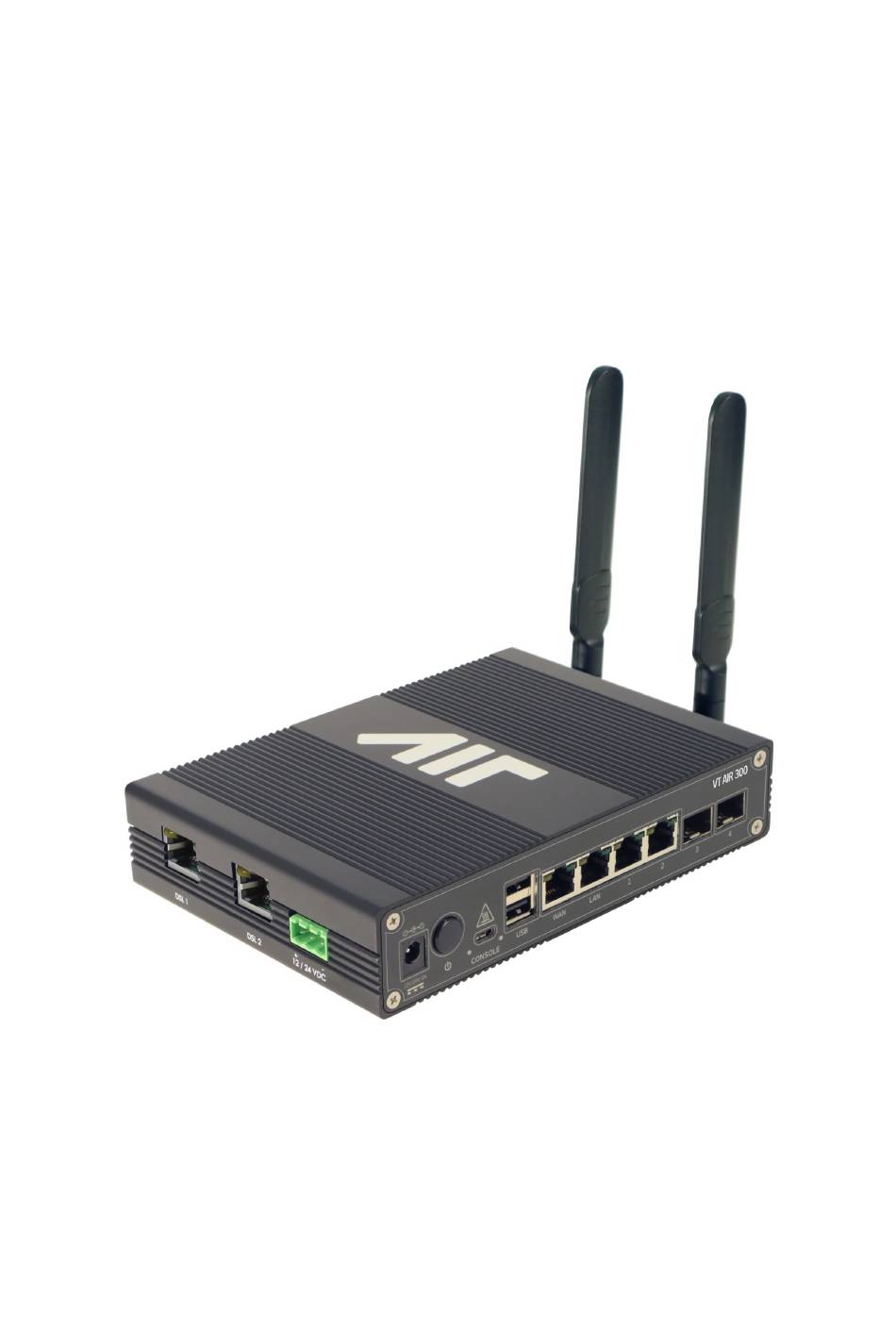

- Page 1 VT AIR 300 User Manual Voleatech GmbH...
-
Page 2: Table Of Contents
AC/DC Adapter or Power Supply - Electrical Safety ............17 10.5 Electronic Emission Notices ................... 18 10.6 WEEE and recycling statements ..................19 10.7 Restriction of Hazardous Substances (RoHS) European Union RoHS ......19 Contact Information and Resources ..............21 Voleatech GmbH... - Page 3 To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by Voleatech GmbH, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
-
Page 4: Overview
(700c), B20 (800DD), B5 (850), B25 (1900), B26 (US 850 Ext), B29 (US 700de Lower), B41 (TDD 2500), B30 (2300 WCS) 3G/UMTS: B1 (2100), B2 (1900), B8 (900), B4 (AWS), B3 (1800), B5 (850) 300Mbit/s Download, 50Mbit/s Upload Voleatech GmbH... -
Page 5: External Connectors
-20C - 55C (SHDSL) -20C - 60C Halterung DIN Rail Zertifikate ROHS, CE 2 Industrial Usage The product can be used in the industrial sector. Immunity: EN 61000-6-2 Emitted interference: EN 55022 Safety: EN 60950-1 3 External Connectors Voleatech GmbH... -
Page 6: Certified Cables
VT AIR product family. These examples are the cables which Voleatech uses for testing and should provide enough information to source products from your prefered cable vendor. Ethernet cable: Monoprice 24AWG Cat6A 500MHz STP (max. 30m) •... - Page 7 If you bought the optional LTE configuration the Antenna can be mounted directly at the top of the unit. If you choose to use an Antenna cable, the device is certified for a cable length of up to 1m. Voleatech GmbH...
-
Page 8: Packaging
4 Packaging The following items will be in the packaging of your VT AIR 300. Please make sure to check all items upon arrival of the device: VT AIR 300 Device in the enclosure • Power adapter - 110V/220V US or EU plug •... -
Page 9: 12/24Vdc Barrel Connector
Only one power connector is allowed to be connected at any time 7 USB Console The VT AIR 300 has an FTDI 230x UART to USB bridge allowing convenient connection to the device console. Such serial console connection is of USB-to-UART type. The connection speed should be set to 115200 bps. -
Page 10: Macosx
In Linux the device shows up at /dev/ttyUSBX where X is a number. You can also have a look at the output of dmesg to locate the newly connected device. 7.4 Terminal Program A terminal program is required to open the connected serial port. We recommend: Program Windows Putty Screen, Serial Linux Screen Voleatech GmbH... -
Page 11: Leds
8 LEDs The VT AIR 300 has multiple LEDs. They are indicating for example power on, connection and port activity. Ethernet port related LEDs are embedded in the RJ45 connectors, while the power indicator LED is located below the serial port. - Page 12 It does not matter in which order two SHDSL modems are connected to each other the PINs can be swapped. We add a RJ45 to 2 PIN connector for each SHDSL modem. Figure 3 SHDSL RJ45 to 2 PIN Connector Voleatech GmbH...
-
Page 13: Operational Data
The case dissipates any voltage across the DIN RAIL connector. The middle pin of the Phoenix plug can also be used as grounding. Please note that this can dissipate only a low voltage, in comparison to the DIN rail. Voleatech GmbH... -
Page 14: Warranty Terms And Conditions
SHALL Voleatech GmbH BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES THAT CUSTOMER MAY SUFFER DIRECTLY OR INDIRECTLY FROM THE USAGE OF ANY PRODUCT. BY ORDERING THE VT AIR 300, THE CUSTOMER APPROVES THAT THE VT AIR 300, HARDWARE AND SOFTWARE, WAS THOROUGHLY TESTED AND HAS MET THE CUSTOMER'S REQUIREMETS AND SPECIFICATIONS. -
Page 15: Legal Notice
12 LEGAL NOTICE Voleatech GmbH (hereinafter “Voleatech”) products and services are sold subject to Voleatech terms and conditions of sale, delivery and payment supplied at the time of purchase order acknowledgement. Voleatech warrants the performance of its products according to actual specifications at the date of shipment. Voleatech reserves the right to make changes to its products and specifications or to discontinue any product, product line or service without prior notice. -
Page 16: Regulatory
Never remove the cover or any part of the housing of the product The internal battery is not user replicable. In the event of an equipment malfunction, all repairs must be performed either by Voleatech GmbH or by an authorized agent. It is the customer responsibility to report the need for service to Voleatech GmbH or to one of the authorized agents. -
Page 17: Operatio
13.3 Operation The product may be operated only under the operating conditions as specified by Voleatech GmbH. When the product is used for an extended period of time, and/or at high ambient temperature and/or exposed to direct sunlight it is normal for the product body to feel warm. -
Page 18: Electronic Emission Notices
Prior to cleaning the product, disconnect it completely from the power supply. Use a soft, non-linting cloth to clean the product. Never use chemical cleaning agents such as alcohol, acetone or diluents for cellulose lacquers. 13.5 Electronic Emission Notices (EMC) European Union - Compliance to the Electromagnetic Compatibility Voleatech GmbH... -
Page 19: Weee And Recycling Statements
2014/30/EU (from 20 April, 2016) on the approximation of the laws of the Member States relating to electromagnetic compatibility. Voleatech GmbH is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment. - Page 20 ("RoHS recast" or "RoHS 2"). 13.8 EU Radio Directive Equipment (RED) Declaration of Conformity (DoC) Voleatech declares that the radio equipment for the VT AIR 300 is in compliance with Radio Equipment Directive 2014/53/EU. 13.9 LTE Modem A safety distance of at least 20 cm must be kept between the product antenna and the operator or and other persons.
-
Page 21: Contact Information And Resources
14 Contact Information and Resources Voleatech GmbH Grathwohlstr. 5 72762 Reutlingen Germany www.voleatech.de info@voleatech.de +49 7121 539 550 Voleatech GmbH...
