Temperature regulator

Manual Instructions

for temperature regulator

HT 20

HT 20 – Directions for Use

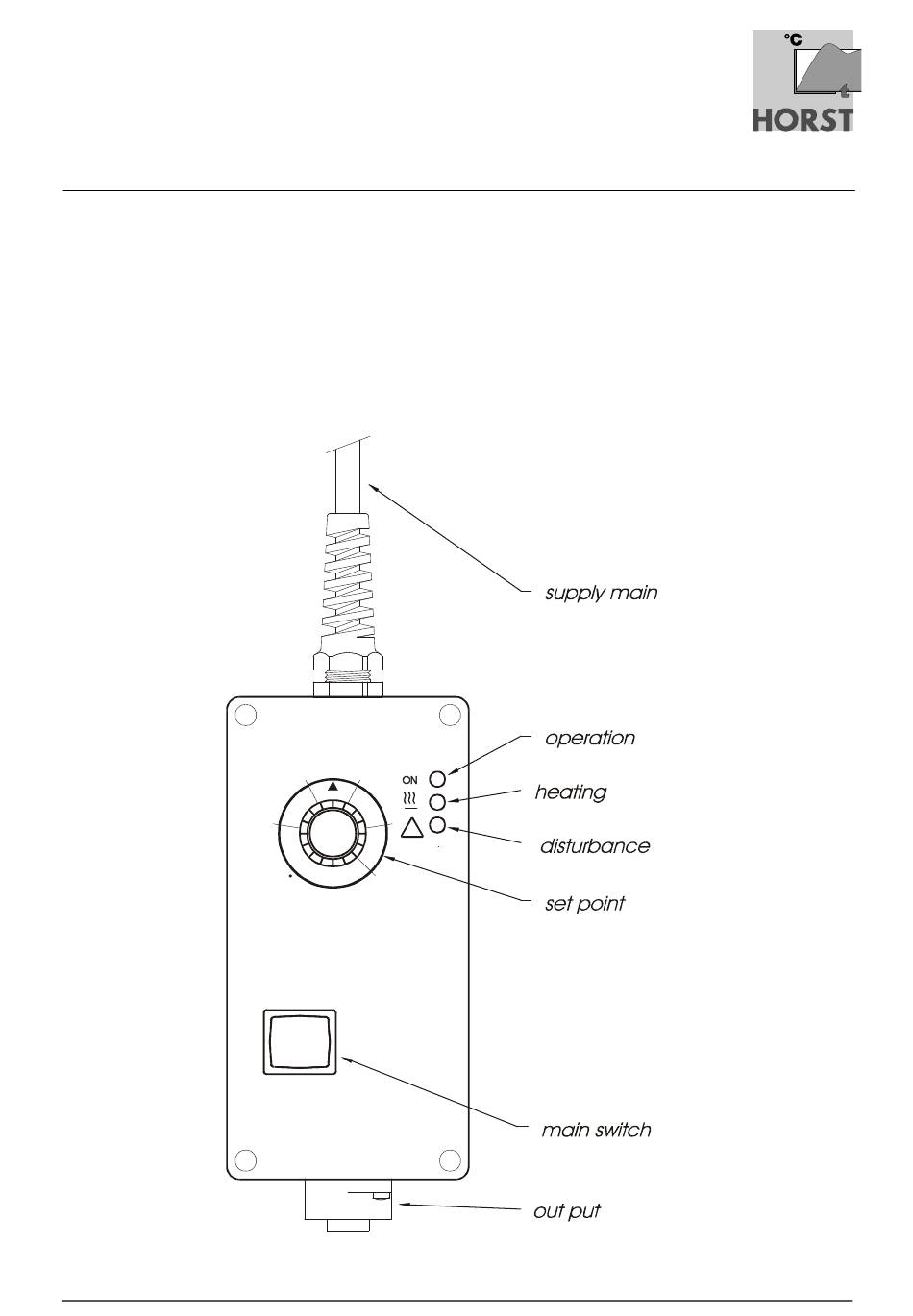

The regulator HT 20 is an electronic PD-regulator with a 7-pole flange socket with integrated

temperature sensor socket. This is important, when the heating must often be separated from the

regulator, especially by non-professionals. The HT 20 is incapsulated hermetically in a plastic

case. An integrated mains switch make it possible to connect the regulator directly to the mains.

To guarantee a safe switching-off, the regulator has a double-pole switching relay with contact

clearance >= 3 mm.

Types for thermo-couple have an integrated cold junction compensation.

Edited: 03.08.98

Printed: 27.04.04

Horst GmbH

Bitzenheimer Weg 10

D-64653 Lorsch

Telefon 06251/9626-0

Telefax 06251/9626-96

page 1 of 4

471 10 1017.DOC

Table of Contents

Need help?

Do you have a question about the HT 20 and is the answer not in the manual?

Page 1 Telefax 06251/9626-96 HT 20 – Directions for Use The regulator HT 20 is an electronic PD-regulator with a 7-pole flange socket with integrated temperature sensor socket. This is important, when the heating must often be separated from the regulator, especially by non-professionals. The HT 20 is incapsulated hermetically in a plastic case.
Page 2 Horst GmbH Manual Instructions Bitzenheimer Weg 10 for temperature regulator D-64653 Lorsch HT 20 Telefon 06251/9626-0 Telefax 06251/9626-96 Technical Data accuracy 1,5 % control system P-PD switching hysteresis 0,7 K servo amplifier 0 ... 10 % voltage 230 V~ rated frequency 50...60 Hz...
Page 3 Manual Instructions Horst GmbH Bitzenheimer Weg 10 for temperature regulator D-64653 Lorsch HT 20 Telefon 06251/9626-0 Telefax 06251/9626-96 Connection Flange Socket Variation of Servo-Amplifier In some special cases, the preset servo-amplifier is not sufficient. Open the case (see special advices): opposite the flange socket is a pin line with a short circuit plug (jumper). By plugging this plug into a different socket the servo-amplifier may be changed: from left to right 0, 1, 2, 5, 10% of the scale value.
Page 4 Horst GmbH Manual Instructions Bitzenheimer Weg 10 for temperature regulator D-64653 Lorsch HT 20 Telefon 06251/9626-0 Telefax 06251/9626-96 Causes of Disturbances no green light è no mains red light è temperature sensor not connected or sensor failure relais buzzes or switches very often è...
