Docking Drawer

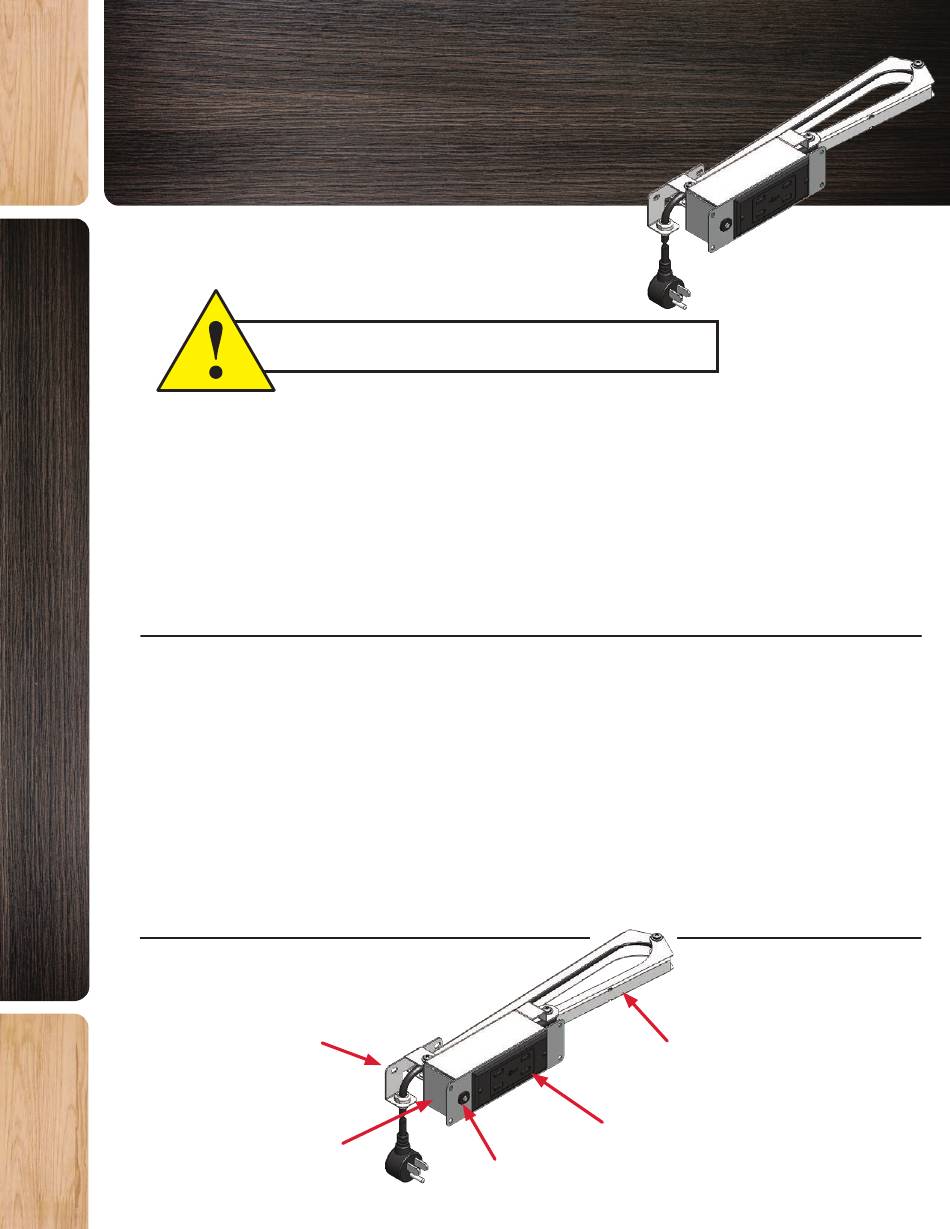

Install Manual Docking Drawer Slim USB Series
Applicable Models: 0290-00046(W) / 24
0290-00045(W) / 21
0290-00048(W) / 18
CAUTION — READ CAREFULLY
Failure to follow these instructions can cause death or permanent injury.
•
Do not work on live electrical circuits! Make absolutely certain power is
off before connecting the device!
• There are instructions provided with the USB charging outlet – read those
instructions in addition to these.
• This product is for dry, indoor and permanent installations only.
• Install the device in accordance with all national and local electrical codes.
General Information–
• The Docking Drawer Slim USB Series has been listed by ETL and complies with
UL 962a and CSA-22.2 when installed in accordance with these instructions.
Do not install this product in a manner contrary to these instructions.
• The Docking Drawer Slim USB Series is designed for charging personal electronics
and other low power devices. It is limited to a maximum of 3A @ 120 VAC.
• Current installation diagrams, mounting diagrams and wiring instructions can be
found in the Docking Drawer Specification Library.
Please visit www.dockingdrawer.com and click on the Specification button.
Structure–
Power Cord Bracket
Receptacle Box
USB Charging Outlet
User Resettable Circuit Breaker
0230-00006 . r1
1/19/2016
Cable Management Arms
1
Advertisement
Table of Contents
Summary of Contents for Docking Drawer 0290-00046(W)
- Page 1 Docking Drawer Install Manual Docking Drawer Slim USB Series Applicable Models: 0290-00046(W) / 24 0230-00006 . r1 0290-00045(W) / 21 1/19/2016 0290-00048(W) / 18 CAUTION — READ CAREFULLY Failure to follow these instructions can cause death or permanent injury. • Do not work on live electrical circuits! Make absolutely certain power is off before connecting the device! • There are instructions provided with the USB charging outlet – read those...
- Page 2 Preparing for a Docking Drawer Slim USB Installation– To prepare for a successful Docking Drawer Slim USB installation please ensure that the cable management arms are free and unobstructed by confirming following the specifications: • The distance from the back of the drawer to the • The cutout for the receptacle box should be wall where the power cord bracket mounts must " wide X 2 " high. Enlarging the cutout...
- Page 3 Installing the Docking Drawer Slim USB Outlet– 1. W ith the drawer closed and the receptacle box in 4. I nstall the right rear mounting screw position, mark the location of the rear mounting (not supplied). bracket so that the arms are centered. 2. I nsert Docking Drawer outlet through the receptacle box cut out in the back of the drawer. 5. Mount the receptacle box. 3. E xtend the Docking Drawer outlet and install the left rear mounting screw (not supplied). 6. T est movement. Align cable management arms so they are centered between the drawer box and the back of the cabinet if necessary. 7. Plug in Docking Drawer outlet into an existing electrical outlet.
- Page 4 Removing the Receptacle Box– For a successful Docking Drawer Slim USB charging outlet installation, it is NOT necessary to remove the receptacle box from the cable management arms. However, if the receptacle box needs to be removed, please follow these steps to disconnect/reconnect the receptacle box from the cable management arms. 1. Remove the cable arm ground connection 4. M ount the power cord bracket in the correct inside the receptacle box by removing the location on the back wall behind the drawer green ground screw and ring terminal as as shown in the drawing. shown. DO NOT remove the ground wire that goes to the receptacle. 5. Install the drawer in the cabinet, and hold on to the end of the arm assembly. DO NOT REMOVE 6. Pass the wires from the cable management arms into the receptacle box and reattach the bracket using the screwdriver and (2) #10 screws. 7. Secure the receptacle box to the back of the drawer using the installer supplied hardware. 8. R econnect the black wire from the circuit breaker to the black wire from the cable management arm using the blue wire nut. 2. Remove the blue wire nut connecting the black wire from the cable chain to the black wire going to the circuit breaker. 9. DO NOT FORGET TO REATTACH THE GROUND WIRE INSIDE THE RECEPTACLE BOX.
- Page 5 Reinstalling the Outlet– Install the USB charging outlet in the receptacle box before plugging in the Docking Drawer. • A fter the receptacle box has been correctly installed in the back of the drawer and (if applicable) all wires correctly reattached, the USB charging outlet can be installed. Green Wire (ground): REMINDER: IF THE CABLE ARM GROUND WIRE WAS REMOVED DURING green screw INSTALLATION, MAKE SURE IT HAS BEEN REATTACHED AND TORQUED PROPERLY.
- Page 6 Docking Drawer ™ CHARGING POWERING Application: Docking Drawer Slim Docking Drawer Slim USB Style Drawer Style Drawer Flush Outlet Type (2-AC, 2-USB) (4-USB) (2-AC/GFCI) (2-AC/GFCI) ≤ 24" ≤ 21" ≤ 18" ≤ 24" ≤ 21" ≤ 18" ≤ 24" ≤ 21"...
