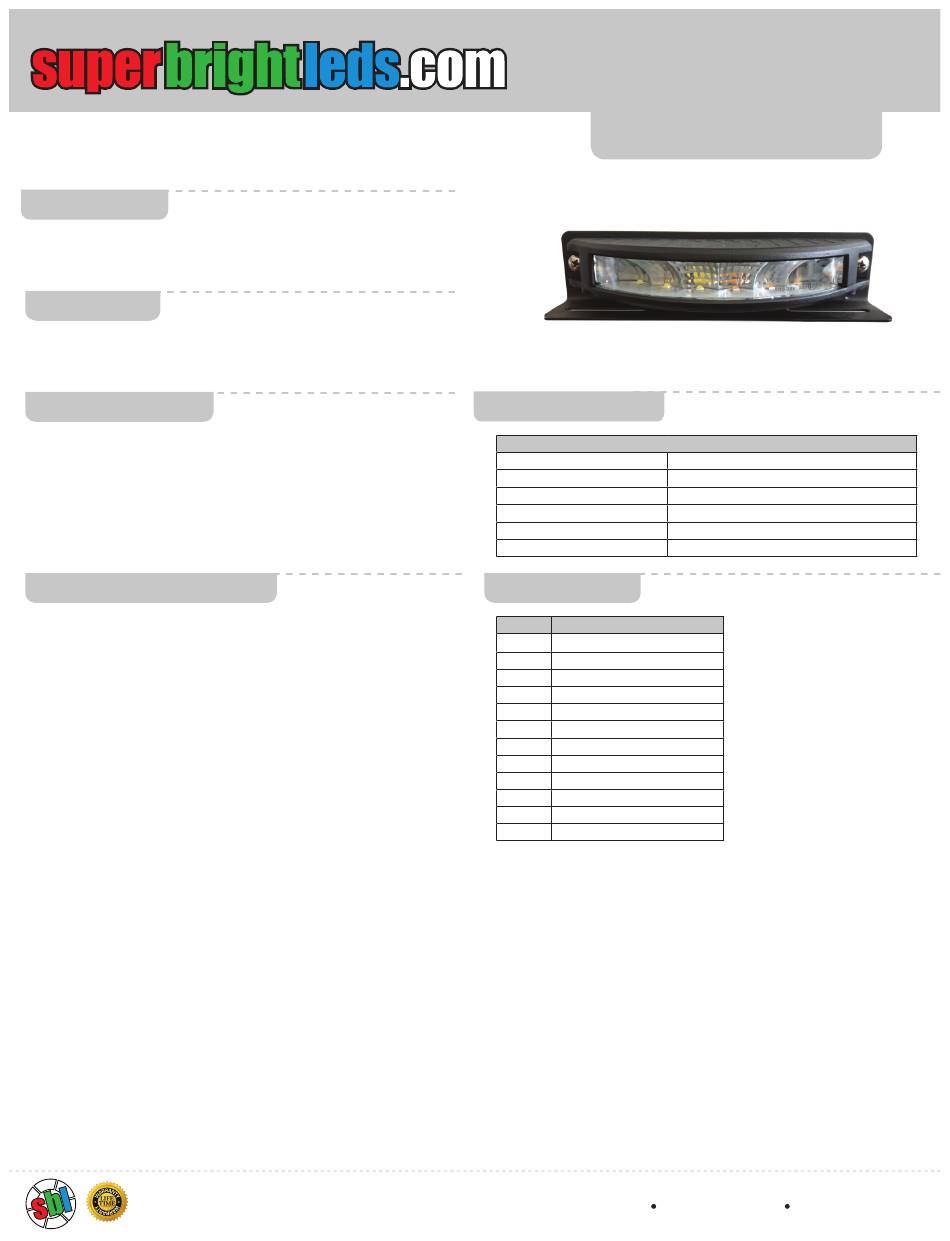

Super Bright LEDS WIFI-CON User Manual

Important: Read all instructions prior to installation.
LED Strobe Light Head
Parts Included
1 - LED strobe light head
1 - mounting bracket
1 - hardware kit (to attach strobe head to mounting bracket)
Accessories
Strobe Switch (AMSB-2M-PT)
Fuse Holder (WMFH)
Fuse (MAF-x)
Safety and Notes
• To reduce risk of electric shock, ensure that battery is
disconnected before performing any installation procedures.
• When linking multiple lights with a common wire, make sure
to select wire appropriately sized for intended load and run
of the wire.
• Avoid looking directly into lamp when illuminated.
Installation and Operation
Setting Group
Strobes can be set in two groups, so they flash in an alternating
pattern. Strobes in same group will flash together.
1. Prior to installation and with strobe grounded, apply power to red
and yellow wire simultaneously. Light will flash once for group 1
and twice for group 2.
2. Remove yellow wire from power and then momentarily reapply
power to change group. Light will remain in its set group until the
process is repeated.
Changing Flash Patterns
1. Once each light is set to desired group, complete main power
and ground wiring.
2. Connect common wire that runs from yellow wire on each light
to a momentary switch.
Note: Supply side of switch should only be connected to
fused power.
3. Apply main power to turn strobes on, then use momentary
switch to cycle through patterns.
Specifications
Voltage
Current Draw
IP Rating
Wire Length
Recommended Fuse Rating
Operating Temperature
Flash Patterns
Pattern Pattern Name
1
2
3 Double Flash
4 Six Flash (Speed)
5 Single Flash-R65
6
7 Double Flash (Speed)
8 Quad Flash (Speed)
9
10 Double Flash (R/L)
11 Six Flash (R/L)
12 Riple Flash (R/L –Speed)
Rev Date: V1 04/05/2019
4400 Earth City Expy, St. Louis, MO 63045
User Manual
STSC-x6
WIFI-CON
STSC-x6
12-24 VDC
600 mA (0.6 A) @12 VDC
IP67
15 in. (381 mm)
1A /Light Head
-22°–122° F(-30°–50° C)
Six Flash
Quad Flash
Triple Flash
R/L Flash
866-590-3533 superbrightleds.com
