Summary of Contents for A.H.Beard INVIGORATE

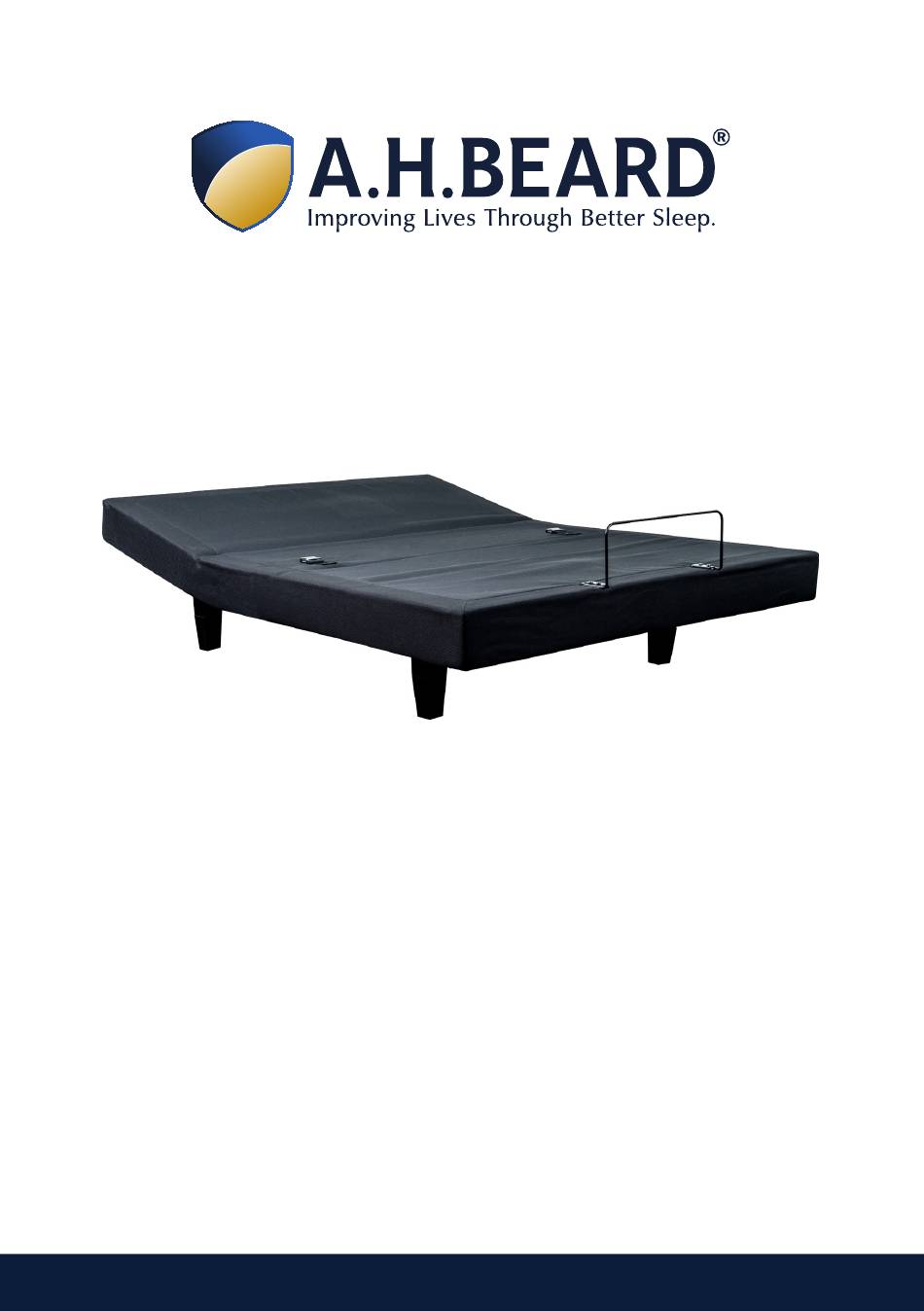

- Page 1 INVIGORATE Adjustable Base Assembly and Operation Manual PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Safety precaution and usage guide Parts list Base overview Assembly guide Operating your adjustable base Wireless remote pairing operation Split-base synchronisation Power outage Headboard bracket installation Adjustable base guarantee REGISTER YOUR PRODUCT PURCHASE Registering your product purchase with us will help us to provide faster service should you need to contact us in the future. -
Page 3: Safety Precaution And Usage Guide
SAFETY PRECAUTION AND USAGE GUIDE ATTENTION: MAKE SURE YOU READ ALL INSTRUCTIONS BEFORE USING YOUR ADJUSTABLE BASE. SAVE THESE INSTRUCTIONS. • If using a headboard, ensure it is installed against a wall to prevent from collapsing on persons, children or pets. To reduce the risk of electronic shock, •... - Page 4 To keep your adjustable base performing SAVE THESE INSTRUCTIONS well for its lifetime: SERVICING OF DOUBLE-INSULATED PRODUCTS • When replacing batteries in your remote In a double-insulated product, two systems of control remove full set of old batteries and insulation are provided instead of grounding. replace with a full new set.
-
Page 5: Parts List
PARTS LIST CHECK AND CONFIRM THE FOLLOWING ITEMS ARE INCLUDED IN THE CARTON BEFORE DISPOSING OF ANY PACKING MATERIALS. Remote Control (1) AC Main Cable (1) Switched-Mode Power Supply (SMPS) (1) Mattress Retainer Bar (1) AAA Batteries (3) Legs (4) PARTS FOR INSTALLING HEADBOARD Bolts for Headboard (8) Nuts for Headboard (8) -
Page 6: Base Overview
BASE OVERVIEW USB Ports USB Ports Head Massage Motor Head Lift Motor Control Box Foot Lift Motor Foot 9V Battery Massage Compartment Motor... -
Page 7: Assembly Guide
ASSEMBLY GUIDE TWO PEOPLE ARE REQUIRED TO SET UP YOUR ADJUSTABLE BASE STEP 1 Take the carton near to where you’d like the base to be set up. Place the carton flat on the floor with the printed lid facing up. When you open the carton, you will see that there are small boxes packed in with the base. - Page 8 ASSEMBLY GUIDE STEP 4 Insert the male end of the DC extension cable to the power supply. IF YOU’RE ATTACHING A HEADBOARD, YOU WILL NEED TO ATTACH HEADBOARD BRACKETS. PLEASE COMPLETE STEPS ON PAGE 12 BEFORE CONTINUING WITH NORMAL INSTALLATION IF INSTALLING A SPLIT-BASE PLEASE FOLLOW INSTRUCTIONS ON PAGE 11 STEP 5...
- Page 9 ASSEMBLY GUIDE STEP 6 If your mattress does not have clip locks attached to its underside, you will need to install the retainer bar to keep it in position on your adjustable base. Slide the mattress retainer bar into the mount. STEP 7 Place the mattress on the adjustable base.
-
Page 10: Operating Your Adjustable Base
OPERATING YOUR ADJUSTABLE BASE Press and hold the Press and hold the button to RAISE and button to RAISE and LOWER BACK REST. LOWER LEG REST. Stops when released Stops when released Memory Button for Zero Gravity preferred position Preset Position Quiet sleep Preset position preset position... -
Page 11: Wireless Remote Pairing Operation
PAIRING YOUR REMOTE & BASE Your new base is already paired with the remote supplied. If the base does not initially operate, you may need to reconnect the remote and base following the instructions below. Press the pairing button located on the control box twice until the LED light turns on. 2. -
Page 12: Headboard Bracket Installation
HEADBOARD BRACKET INSTALLATION STEP 1 Place the headboard bracket B on the tube to the right hand side of your adjustable base. Insert the bolt with the washer into the pre-drilled holes on the bracket and the vertical tube on your adjustable base. - Page 13 HEADBOARD BRACKET INSTALLATION STEP 2 The bracket A allows adjustment to meet the dimension of different headboards. After choosing the desired pre-drilled holes on the bracket, pass the bolts with the washer through the holes on brackets. Fasten these bolts, washers and nuts using a wrench. STEP 3 Please refer to the mounting instructions of your specific headboard when attaching to these brackets.
-
Page 14: Adjustable Base Guarantee
ADJUSTABLE BASE GUARANTEE Congratulations on the purchase of your new A.H. Beard product. We are confident that it will provide years of sleeping comfort. A.H. Beard has been setting the standard for quality bedding since 1899. However in the unlikely event that a product fails to meet our high standards, A.H. - Page 15 ADJUSTABLE BASE GUARANTEE • Online at www.ahbeard.com/customercare • By email to customercare@ahbeard.com • Mail in Australia to A.H. Beard Pty Limited, PO Box 41, Padstow NSW 2211 • Mail in New Zealand to A.H. Beard Pty Limited, 260 Roscommon Road, Wiri 2104 HOW TO CLAIM YOUR OUT-OF-POCKET COSTS Unless otherwise stated in this document, you will bear the cost of claiming under this guarantee.
- Page 16 A.H. Beard Pty Ltd A.H. Beard Pty Ltd 1/35 Bryant Street 260 Roscommon Road Padstow NSW Australia 2211 Wiri Auckland New Zealand 2104 Phone: 1300 654 000 Phone: 0800 242 327 Email: customercare@ahbeard.com Email: customercare@ahbeard.com www.ahbeard.com www.ahbeard.com...
