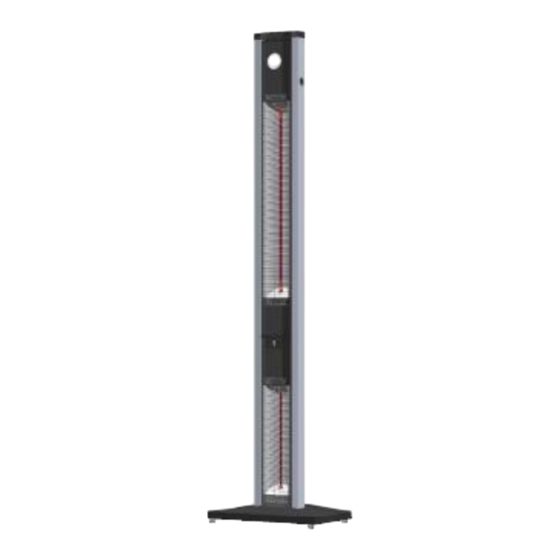

- Page 1 Electric Patio Heater Model EH900 Model EH901 Please read this instruction manual before using the heater Keep the manual safe for future reference...
-
Page 2: Specifications
Specifications Model EH900 EH901 Rated power Max: 2000W Max: 2000W+900W=2900W Rated voltage 220-240 V~ 220-240 V~ Rated frequency 50 Hz 50 Hz Class: IP rate IP34 IP34 Circuit diagram Important safety instructions WARNING-When using electrical appliances, basic safety precautions should always be followed. Failure to comply with these instructions may cause a fire, electrical shocks or other injury to persons or property WARNING: SOME PARTS OF THE HEATER WILL BE VERY HOT, DO NOT TOUCH WHEN THE HEATING IS WORKING. -
Page 3: Installation Instruction
where children and vulnerable people are present. Remove product from the packaging and ensure it is in good condition. DO NOT let children play with the packaging, for example plastic bags. Check that the voltage and frequency of your appliance match your mains voltage before plugging in. This heater is hot when in use. - Page 4 Minimum distances should always be complied with (from top: 60 cm, from sides: 150 cm.) The heater should not be facing inflammable substances. The heater must be installed so as to prevent that the switches can be touched from those who are in the shower.
-
Page 5: Parts List
EH900 Parts list: Part No. Part name Pictures Heater Body M4 10 screw Washer ST3.5 12 screw M6×50 Hexagon head bolts Remote control unit Castor Foot sheath Base Foot (GB) - Page 6 EH901 Parts list: Part No. Part name Pictures Upper Heater body Lower heater body Base cover Base M4 10 screw Washer ST3.5 12 screw M6 50 Hexagon head bolts Remote control unit Castor Foot sheath Base Foot (GB)
- Page 7 Assembly instruction for EH900 (GB)
- Page 8 (GB)
- Page 9 (GB)
- Page 10 (GB)
- Page 11 Assembly instruction for EH901 (GB)
- Page 12 (GB)
- Page 13 (GB)
-
Page 14: Using The Heater
Using the heater: Warning: Minimum distances ( must always be complied when from top: 60 cm, from sides: 150 cm) the heating arm is in horizontal or vertical position, the distance should be measured from the ambient objects to the closest point of the heater Always keep the flammable material away from the heater. -
Page 15: Remote Control Unit
Remote control Unit Buttons have the same function as those in the control panel Operation Instruction: Warning: Do not use the heater directly near a bathtub, a shower, a swimming pool. Never turn on or off the switch with wet hands Always unplug the heater when is not used. - Page 16 Model EH900 s heating arm can work in vertical or horizontal position. Open the heating arm (Only for Model EH900) as following instructions, and close it in the reverse direction. (GB)
-
Page 17: Operation
Operation: 1. Plug in the powder cable, a Beep sound is heard. The heater is in Stand By status, the ON/OFF is a blue light. 2. Press the ON/OFF button and the light will be white, and the heater switch to a working status. The heating tube and the LED light are preset in power 3. -
Page 18: Maintenance
Maintenance - TURN IT OFF AND UNPLUG FIRST This heater contains no moving parts, it needs very little maintenances. However, when the heater builds up heavy dirt, use a soft cloth to wipe it off. Warning: Before cleaning unplug from the power supply and wait for some minutes to cool down. Heating element replacement If the heating element breaks or any has malfunction, it should be only changed by its service agent Waste Electric Products should not be disposed of with household...
