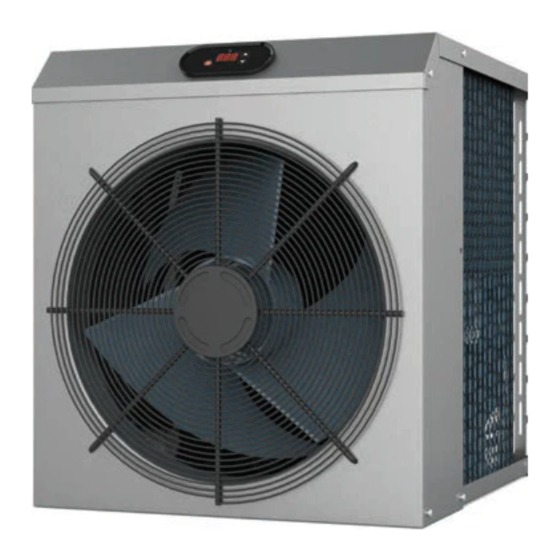

All Swim POOLSTYLE GHD-150-0318 Installation And User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

INSTALLATION

AND USER MANUAL

P O O L S T Y L E

Table of Contents

Need help?

Do you have a question about the POOLSTYLE GHD-150-0318 and is the answer not in the manual?

Questions and answers

Summary of Contents for All Swim POOLSTYLE GHD-150-0318

Page 1 INSTALLATION AND USER MANUAL P O O L S T Y L E...
Page 3: Table Of Contents
Content Installation instruction & Operation Points ..............1 Installation Locations ..................... 4 Trial ..........................5 Connection ........................5 Power Supply ........................ 5 Condensate water ......................6 Dimension ........................7 Technical Parameter ...................... 8 Operation instruction ...................... 9 4. 1 Temperature display ..................... 9 4.
Page 4 INSTALLATION AND USER MANUAL Thank you for choosing our product. Its applicable temperature is 10-43 ° C. Note: This manual contains all the necessary information to use and install the heat pump. 1. It must be installed or removed by professionals, 2.
Page 5 Warning： a. Please read the following tips before installation, use and maintenance. b. Installation, removal and maintenance must be carried out by professional personnel in accordance with the instructions. c. Gas leakage test must be done before and after installation. 1.
Page 6 d. Installation must be stopped if any gas leakage, and the unit must be returned to professional maintenance center. 3.Transportation & Storage a. Sealing is not allowed during transportation b. Transporting goods at a constant speed is needed to avoid sudden acceleration or sudden braking, so as to reduce the collision of goods.
Page 7: Installation Instruction & Operation Points
1. Installation instruction & Operation Points Cautions of Installation： Any chemicals must be guaranteed to be added to the pipes after the heat pump (ie, the chemicals cannot enter the heat pump). When placing or transporting the equipment, it should be placed upwards and kept upright, and must not be dumped or inverted.
Page 8: Trial
1.2 Trial Note: Please ensure the order of “When start, start water pump before heat pump, When finish, turn off heat pump before water pump”, otherwise it will damage the heat pump. 1.3 Connection 1.4 Power Supply Before connecting the power supply, make sure that the power supply matches the rated power supply of the product.
Page 9: Condensate Water
Power Cord（MM2) 3×1.5 3×1.5 3×1.5 ※ Above data is subject to modification without notice. Note: The above data is adapted to power cord ≤ 10m. If power cord is＞10m, wire diameter must be increased. The signal cable can be extended to 50m at most. Pay attention: Please ensure the safety of Do not disconnect the power...
Page 10: Dimension
condensation can reach several litters per hour. This phenomenon is sometimes mistaken for a leak. 2. Dimension Size(mm) Name Model GHD-150-0318 GHD-150-0319 GHD-150-0320...
Page 11: Technical Parameter
3. Technical Parameter Model GHD-150-0318 GHD-150-0319 GHD-150-0320 Advised pool volume (m³) < 20 < 28 < 35 Operating air temperature (℃) 10-43 Performance Condition: Air 26° C, Water 26° C, Humidity 80% Heating capacity (kW) Performance Condition: Air 15° C, Water 26° C, Humidity 70% Heating capacity (kW) Power supply...
Page 12: Operation Instruction
4. Operation instruction SYMBOL DESIGNATION OPERATION Power ON/OFF Press to power on or off the heat pump Up/ Down Press to set desired water temperature 4. 1 Temperature display 28℃ is shown on the screen as below for your reference: 4.
Page 13: Trouble Shooting
running. 5. Trouble Shooting 5.1 Trouble shooting for common faults FAILURE REASON SOLUTION No power Wait until the power recovers Heat pump Power switch is off Switch on the power doesn’t run Fuse burned Check and change the fuse The breaker is off Check and turn on the breaker evaporator blocked Remove the obstacles...
Page 14: Daily Maintenance And Product Repair
Low pressure protection No water flow protection 6. Daily Maintenance and Product Repair 6. 1 Daily maintenance a) Properly set the temperature and humidity for a cozy environment, avoid overheating or excessive cooling. b) Don’t put obstacles before the air inlet and outlet of the heat pump, or the efficiency of the heat pump will be reduced, even heat pump stopped.
Page 15 the electrical box, it must be confirmed that all the indicators in the electrical box have been extinguished before operation.
Page 17 ： Version C40Mr32...
