Summary of Contents for UeRON RON-9300

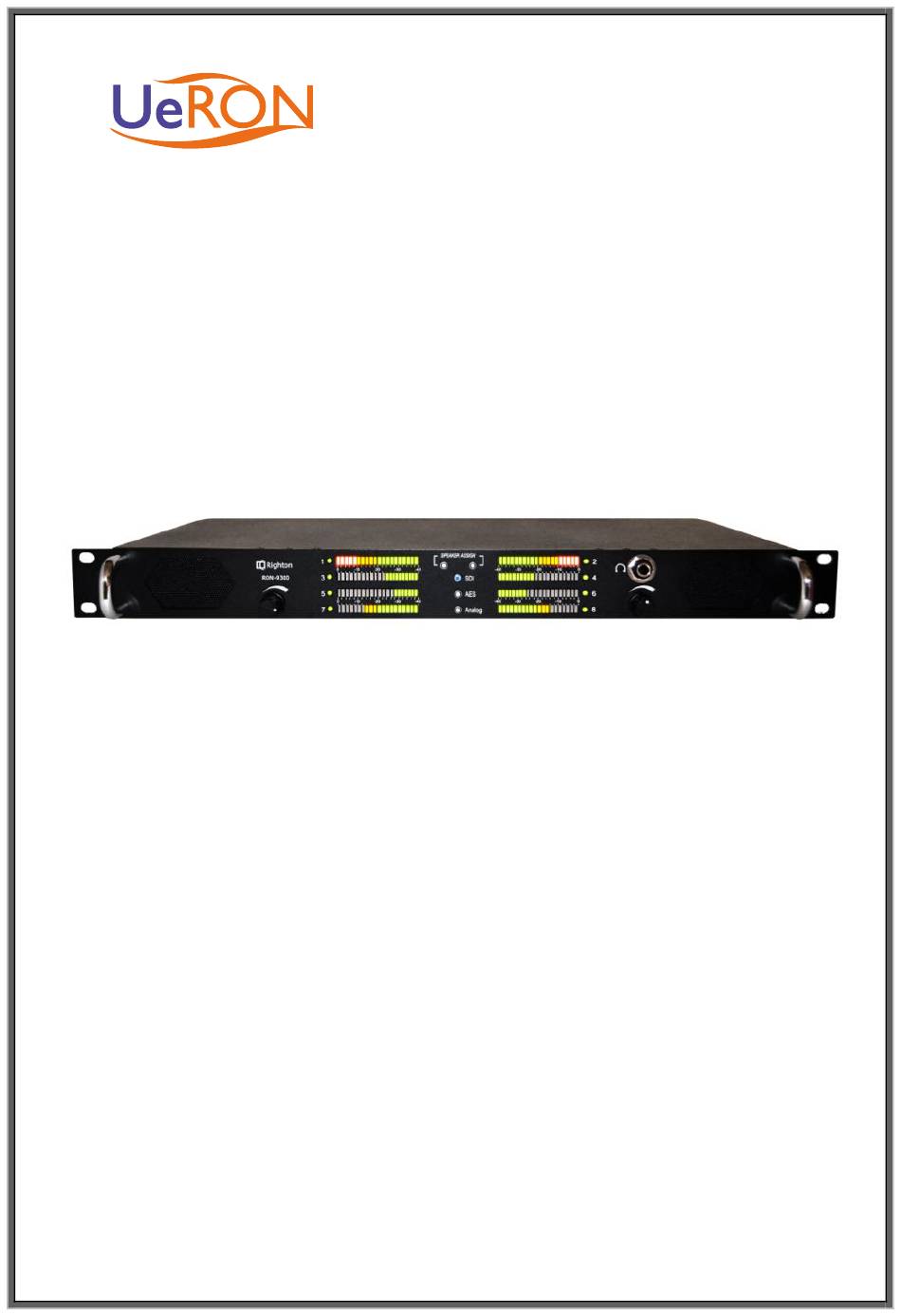

- Page 1 UeRON INTERNATIONAL COMPANY http://www.ueron.com.tw 3G/HD/SD SDI Audio Monitor RON-9300 User Guide V1.001...
- Page 2 INDEX 1. Introduction………………………………..01 2. Electrical Specification……………………02 3. On Screen Control Function………………04 4. Accessory………………….………………07...
-
Page 3: How It Works
• Two Knobs direct to select Speaker and Headphone Jack Volumes • Multi audio format supported How it works: Connect the RON-9300 Video and Audio inputs, the unit will Audio Source (AES, Stereo Balanced Analog and Stereo Unbalanced Analog). Select the Audio formats on Audio Hotkeys. -
Page 4: Specification
Specification • Video Specification Input 1x SDI Output 1x SDI (Active Through Out) • Supportive SDI Input/Output SDI Source 3G-A 1080P@50Hz 1080P@59.94Hz 1080P@60Hz 1080P@30Hz 1080P@29.97Hz 1080P@25Hz 1080P@24Hz 1080P@23.98Hz 1080PSF@24Hz 1080PSF@23.98Hz 1080I@60Hz 1080I@59.94Hz 1080I@50Hz 1035I@60Hz 1035I@59.94Hz 720P@60Hz 720P@59.94Hz 720P@50Hz 525I@50Hz 525I@59.94Hz 625I@50Hz... -
Page 5: Audio Specification
• Audio Specification Input 1x AES、1x SDI 4 x stereo balanced analog(XLR)、 4 x stereo unbalanced analog(RCA) Output Headphone Jack, Speaker x 2 Segment Color Red, Green, Yellow Level meters 8 x 20 segment Level meter scale AES、SDI (-40 to 0 dBFS), Analog (-40 to 0 dBu) Midscale resolution AES、SDI ( 2 dBFS),... -
Page 6: Front Panel
On Screen Control Function Front Panel Speakers When feed 8 channels of audio for RON-9300, The Left Speaker mixed 1, 3, 5 and 7 Audio Channels (left front, left surround, left back surround and center), the Right Speaker mixed 2, 4, 6 and... - Page 7 Speaker Assign Selects Digital and Analogue Audio channels, support 8 channel selections. (1 to 8 channels) SDI Audio Source Selects SDI Audio Source to display AES Audio Source Selects AES Audio Source to display Analog Audio Source Selects the 4 x stereo balanced analog (XLR) and 4 x stereo unbalanced analog (RCA) Audio Source to display Volume Knobs The Left Knob to adjust the 1 to 4 Audio Channel Volumes.
- Page 8 Real Panel 11 12 SDI In The Input will accept a HD/SD SDI input video w/embedded audio source (auto-detected) 10. SDI Out The Output will loop through SDI In video w/embedded audio source 11. AES In The Input will accept a AES input audio source 12.
- Page 9 15. DC 12V Locking 12V DC Power supply 16. Power Switch The switch ON/OFF will control the power. 17. Power Connect a AC100~240V power cord 4. Accessory: Power core x 1...
