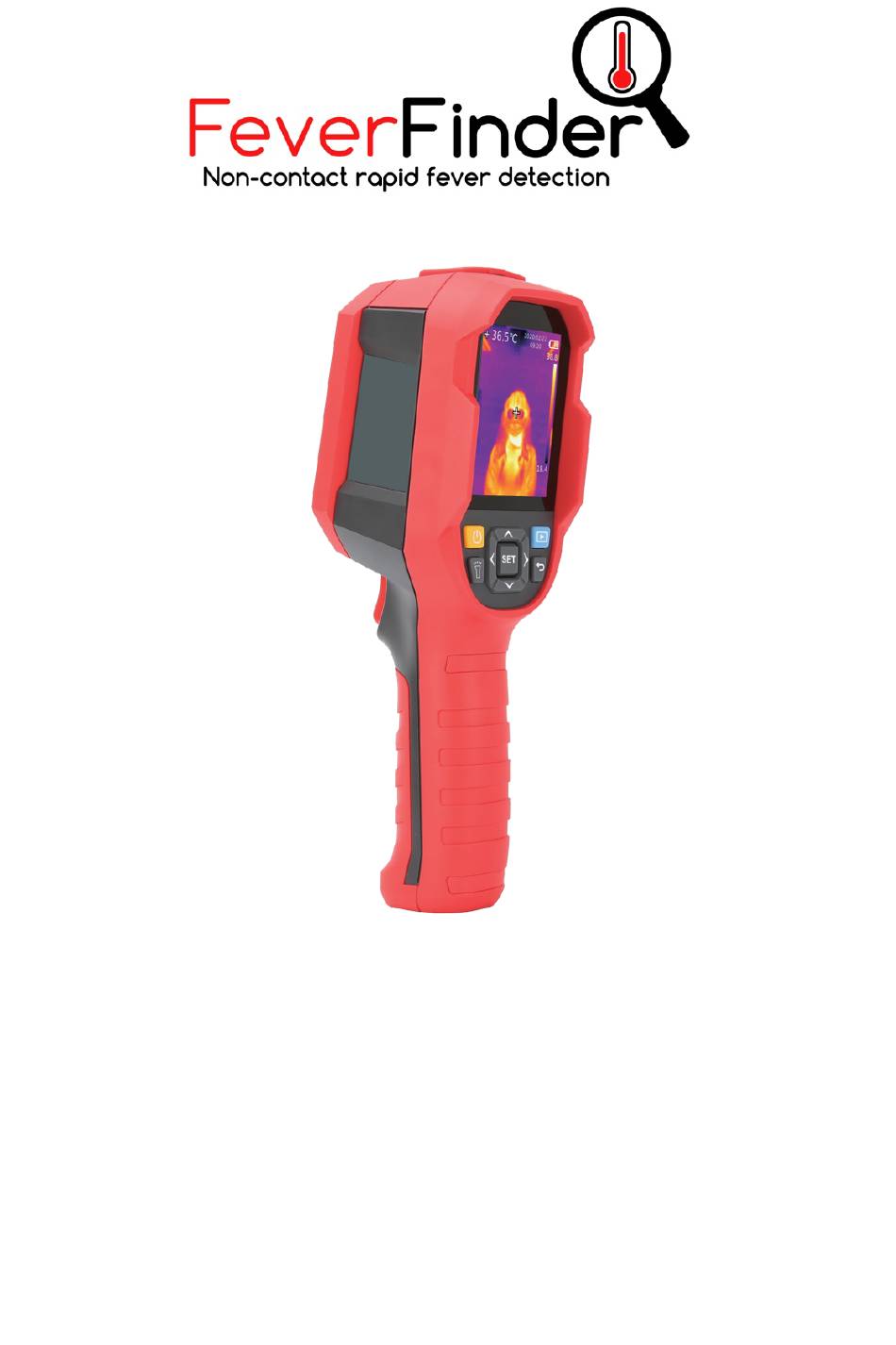

- Page 1 FFim100 Professional thermal imager User Manual...
- Page 3 FFim100 User Manual Preface Thank you for purchasing this brand new FFim100 thermal imager. In order to use this product safely and correctly, please read this manual thoroughly, especially the safety notes. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
- Page 4 FFim100 User Manual...
-
Page 5: Table Of Contents
FFim100 User Manual Table of Contents Safety Instructions ................6 Structure ..................7 Display ..................... 8 Power On/Off .................. 8 Menu Introduction ................9 6. Operating Instructions ..............10 USB Communication ..............18 Specifications ................. 19 Maintenance ................. 21 10. Common Emissivity ............... 21... -
Page 6: Safety Instructions
FFim100 User Manual 1. Safety Instructions To ensure proper use of this product, please read the instructions carefully before using. • The optimal measuring distance for this product is 1 meter. • To ensure measurement accuracy, please use the product in an operating environment of 15°C-30°... -
Page 7: Structure
FFim100 User Manual 2. Structure Description Item Description Item Micro SD card slot Tripod mounting hole Type-C USB interface Flashlight button Interface cover Left button LED light Down button Right button Infrared camera lens cover Trigger Back button Infrared camera lens... -
Page 8: Display
FFim100 User Manual 3. Display Display size: 2.8” Display resolution: 320 (vertical) x 240 (horizontal) pixels Item Description Item Description Temperature unit option Maximum temperature point Cursor option Center point Color palette option Center point temperature High/Low temperature alarm Maximum temperature Settings option Date &... -
Page 9: Menu Introduction
FFim100 User Manual 5. Menu Introduction... -
Page 10: Operating Instructions
FFim100 User Manual 6. Operating Instructions 6.1 Temperature Unit Selection Press the SET button to open the main menu. Press the left/right button to select the option. Press the SET button to enter the temperature unit submenu. Press the up/down button to select °C or °F. - Page 11 FFim100 User Manual To track high temperature: Press the SET button to open the main menu. Press the left/right button to select the option. Press the SET button to enter the cursor submenu. Press the up/down button to select the option.
- Page 12 FFim100 User Manual 6.4 High/Low Temperature Alarm To enable high/low temperature alarm: Press the SET button to open the main menu. Press the left/right button to select the option. Press the SET button to enter the high/low temperature alarm submenu.
- Page 13 FFim100 User Manual 6.5.1 Language To set language: Press the up/down button to select the Language option in the Settings menu. Press the SET button to enter the Language submenu. Press the up/down button to select the desired language from Chinese and English.
- Page 14 FFim100 User Manual 6.5.3 Emissivity/Temperature Compensation To set emissivity/temperature compensation: Press the up/down button to select the Emissivity option in the Settings menu. Press the SET button to enter the Emissivity submenu. Press the up/down button to select emissivity or temperature compensation.
- Page 15 FFim100 User Manual 6.5.5 Display Brightness To set display brightness: Press the up/down button to select the Brightness option in the settings menu. Press the SET button to enter the Brightness submenu. Press the up/down button to select the desired option from Low, Middle and High.
- Page 16 FFim100 User Manual 6.5.7 Alarm Temperatures To set alarm temperatures: Press the up/down button to select the HI/LO Alert option in the settings menu. Press the SET button to enter the HI/LO Alert submenu. Press the up/down button to select the desired option from HI Alert and LO Alert.
- Page 17 FFim100 User Manual 6.5.9 Factory Reset To restore settings: Press the up/down button to select the Factory Reset option in the settings menu. Press the SET button to enter the Factory Reset submenu. Press the up/down button to select Yes.
-
Page 18: Usb Communication
FFim100 User Manual 6.5.11 Photo Save To turn on/off auto save: Press the up/down button to select the Auto Save option in the settings menu. Press the SET button to enter the Auto Save submenu. Press the up/down button to select On or Off. -
Page 19: Specifications
FFim100 User Manual 8. Specifications Sensor UFPA Temperature range 30°C-45°C 86-113°F Measurement resolution 0.1°C/ 0.2°F Accuracy +0.5°C (at 25°C ambient temperature) +0.9°F (at 77°F ambient temperature) Optimal measuring 1 meter distance Minimum measuring 15cm distance Response time 500ms IR resolution... - Page 20 FFim100 User Manual General parameters PC software Data transmission Type-C USB interface Product size (L x W x H) 236mm x 75.5mm x 86mm Display type 2.8” TFT LCD Display resolution 320 x 240 pixels Battery 3.7V/5000mAh rechargeable Li-ion battery...
-
Page 21: Maintenance
FFim100 User Manual 9. Maintenance Use a wet cloth or weak soap solution to clean the outer shell of the device. Do not use abrasives, isopropyl alcohol or solvents to clean the outer shell, lens or window. 10. Common Emissivity... - Page 22 FFim100 User Manual...
- Page 23 FFim100 User Manual www.feverfinder.com support@feverfinder.com...
- Page 24 EAN: 08719326877303...
