USER MANUAL
VERSION - 2015
VERSION
V4.0
DATE
APRIL / 5 / 2015
PRODUCER
LEO
To ensure of your health, equipment and property, please read this chapter carefully before use the solar
pumping inverter and act in compliance with the instructions.
1． SAFETY DEFINITION:
1
User Manual -Solar Pumping Inverter
Advertisement
Table of Contents

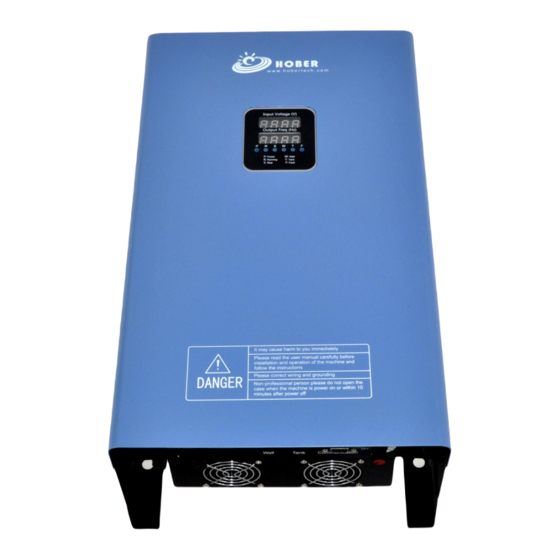

Summary of Contents for Hober HSPL750L
- Page 1 SOLAR PUMPING INVERTER USER MANUAL VERSION - 2015 VERSION V4.0 DATE APRIL / 5 / 2015 PRODUCER To ensure of your health, equipment and property, please read this chapter carefully before use the solar pumping inverter and act in compliance with the instructions. 1．...
- Page 2 Danger: It will cause serious injuries and even death while operating against the rules Storage Condition: NOTE Temperature Humidity Temperature -40 ℃ to +65 ℃. 5% to 90%, no condensation Storage in dry, dust-free Do not store in the environment containing corrosive gas, liquid Installation: Danger FORBID to connect the switcher between the Ac output of inverter with the pump...
- Page 3 X: Build In the Booster Circuit. A/B：Output Frequency A：50Hz B：60H H/L：AC Output Voltage, H：380V L ：220V 2200: Support Rated Power of Pump 2200W, HSPL：Company product code, HOBER and Solar Pumping Inverter Solar /AC/Diesel Switcher HSAS 2200 A/B：AC Input Frequency A：50Hz B：60H H/L：AC Input Voltage, H：380V...
- Page 4 Table 1 NOTE : Solar Panel’s Power configured to 1.2 ~ 2 times of pump’s power , according to the pump’s efficiency and sunshine of solar pumping system installed location. WIRING. User Manual -Solar Pumping Inverter...
- Page 5 Table-2 3. INSTRUCTIONS. 3.1 Socket User Manual -Solar Pumping Inverter...
- Page 6 1：LED /LCD Display 2： System status display：Include Power, running, stop, well, tank, fault 3：Keyboard 4：Ac output: four lines (3phase and ground line) 5：Dc input: Negative and Positive 6：Fan: According to the temperature, wind cooling 7：Well sensor 8：Tank sensor 9：RS485 / GPRS Communication 10：Stop /Boot control and output flow size control DC Input a.
- Page 7 Red Color Yellow Color Blue Color Yellow_Green Ground NOTE: if the output flow of pump is too small, please try to exchange two wire of 3phase . WELL and TANK SENSOR High Level Water Detect Middle Level Water Detect Low Level Water Detect Picture –...
- Page 8 H3: from bottom of well to the water input of pump is 10meters H2: 40meters H1: 40meters. Well/Tank wiring method Picture – 4 LCD Type LCD Screen operation Diagram: HOBER TECH Enter Into Working Time HSPL22KH Setting Menu Start – Stop (H:M) 0 0 0 0 Time: 0 :0 –...
- Page 9 Enter Back ESC Key to Back Main Menu “UP”,”Down” Key for Change Menu “Enter” Key for enter Setting Menu HOBER TECH Line 1: Company Name HSPL22KH Line2: Model 13:26 02/11/15 Line3: Show System is Running or Stop Line 4: System Time...
- Page 10 Inverter State Inverter State Show the Warring, Error and Temperature of Solar Pumping inverter No Warning! No Error! Temp: 35. 0(Degree)) Tank /Well’s water status Display Show the water of Tank and Well status. Water State Tank Empty If the water of tank is full or water of well is empty , will automatic stop Well Full running and show the status Error History...
- Page 11 Dry-Run Detect Dry-Run Setting Enable/Disable Dry-Run of pump(Water level of well), detect by software. when inverter run Parm Setting Ref LE Curt: 10A to 45Hz or higher, it detect the current of pump, Automatic Stop run once Dry-Run Protect less than the set parameters of Current, after stop time finished ,restart Enable Disable again.
- Page 12 Output Freq: Min to Max Shut Down： Anticlockwise Output Freq: Max to Min 3.7 GPRS Control(Optional, need the use it together with GPRS module of Hober) Remote Control the Inverter By SMS. SMS Sample: The SIM Car Number/ 2G User Manual -Solar Pumping Inverter...
- Page 13 SMS to Control the Inverter On(Start output) Feed back by Inverter Set the Inverter’s Min Freq, Running Time and restart time. Update the Password for SMS control SMS to Control the Inverter Off(Stop output) Attention The password in the SMS command is the one that your set The character “,”and “.”is necessary.
- Page 14 5. CASE 3Phase 380V 2HP AC pump solar pumping system: PV Connection: Total 6pcs use 2pcs in series to a group Three Group in Parallel Total Voc is 92V, Vmp 78V. Total Watt is 1860W NOTE: As the low power of pump efficiency is low , will ask more power for input, please use 4Groups. 6.
- Page 15 7. QUALITY WARRANTY In order to protect your interests, to solve your any menace from the "rear" except! The company provides 2 YEAR of warranty of quality service for you. Please provide machine failure photos or video and the ID of machine, then send to our technical department to ...
